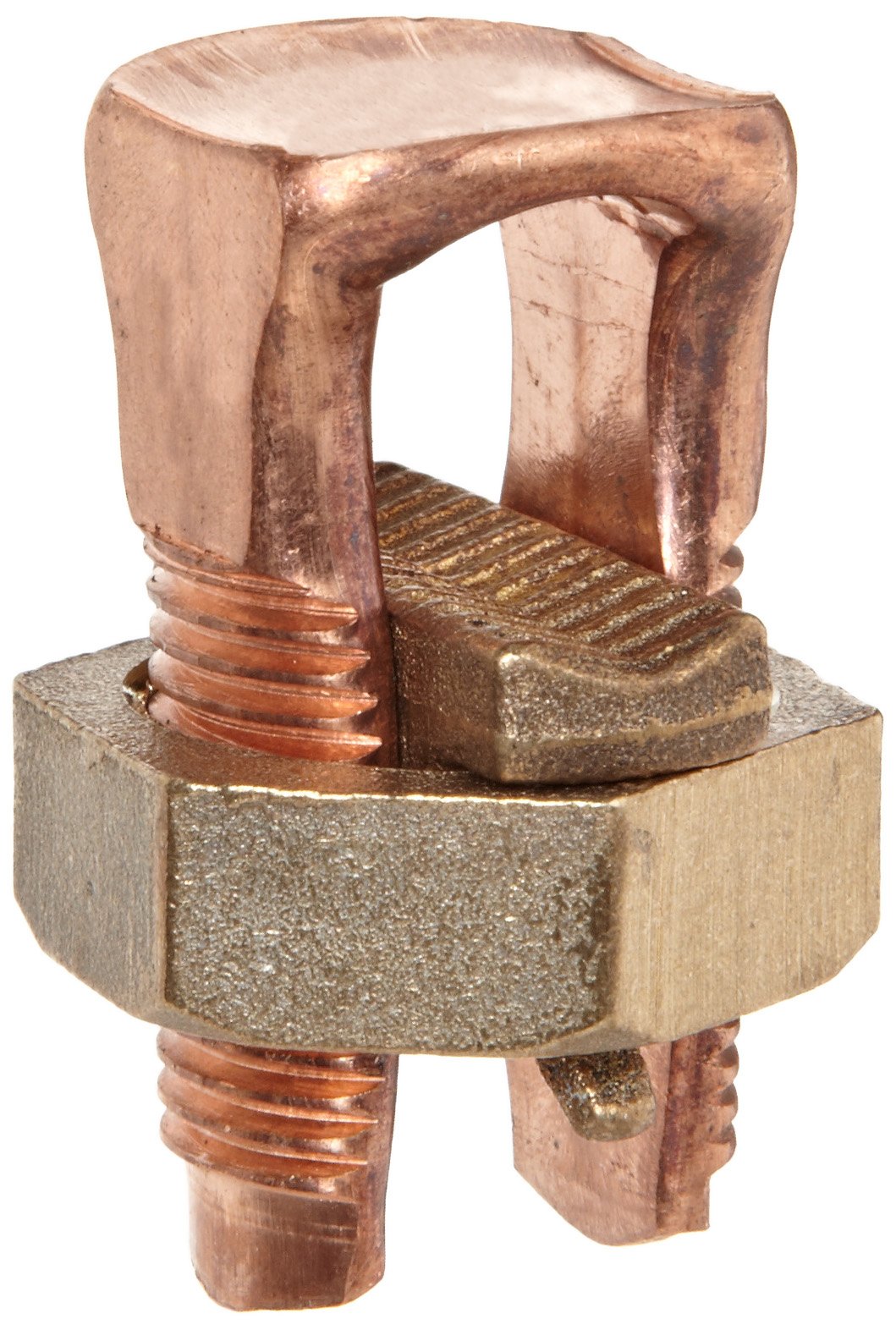

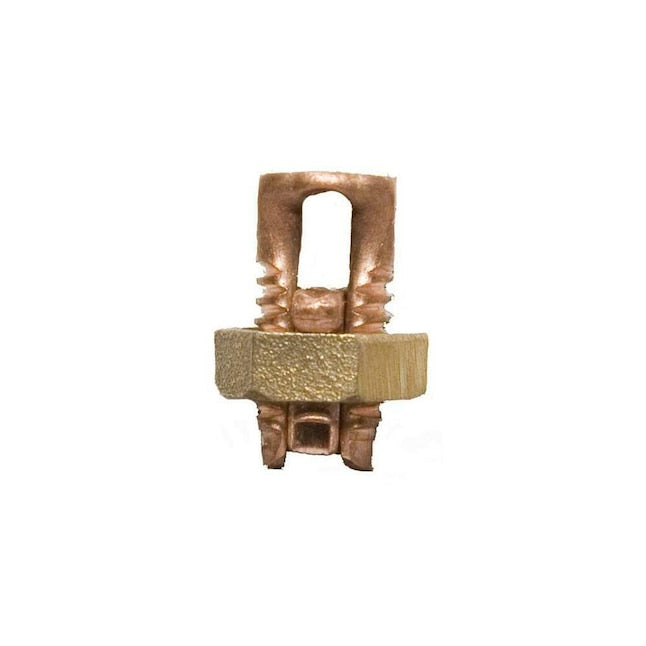

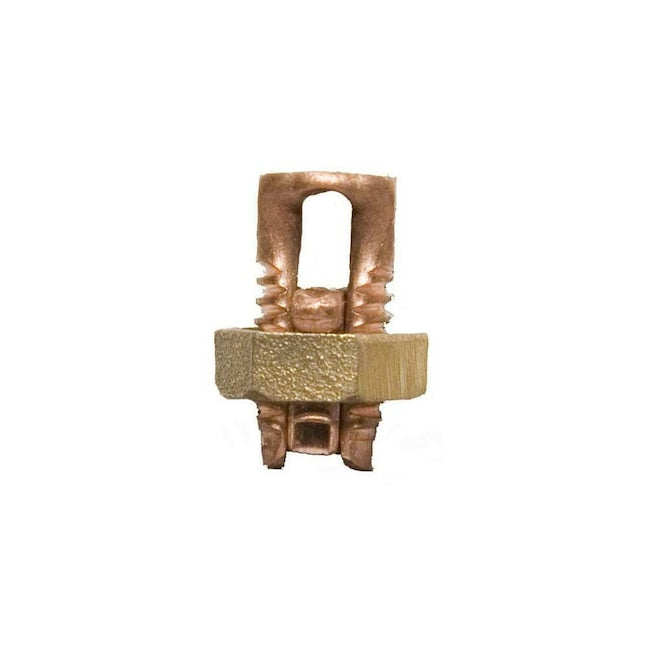

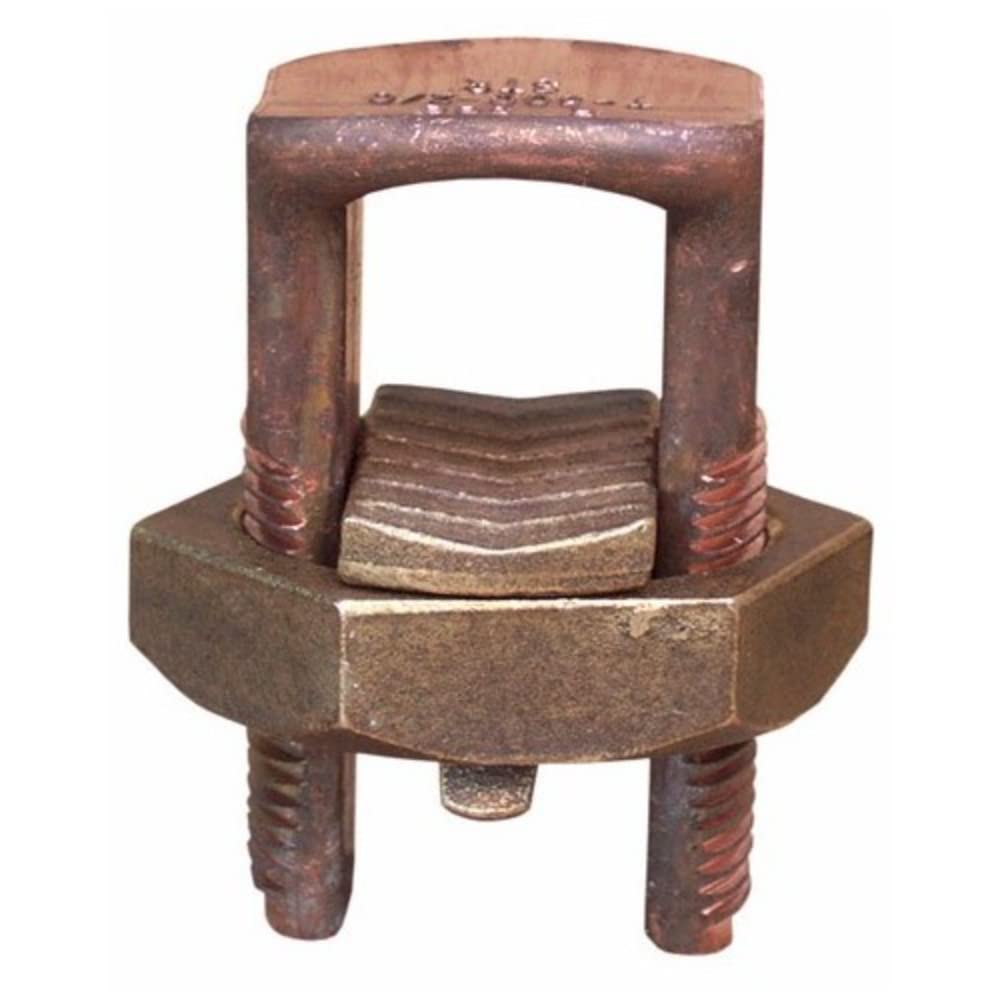

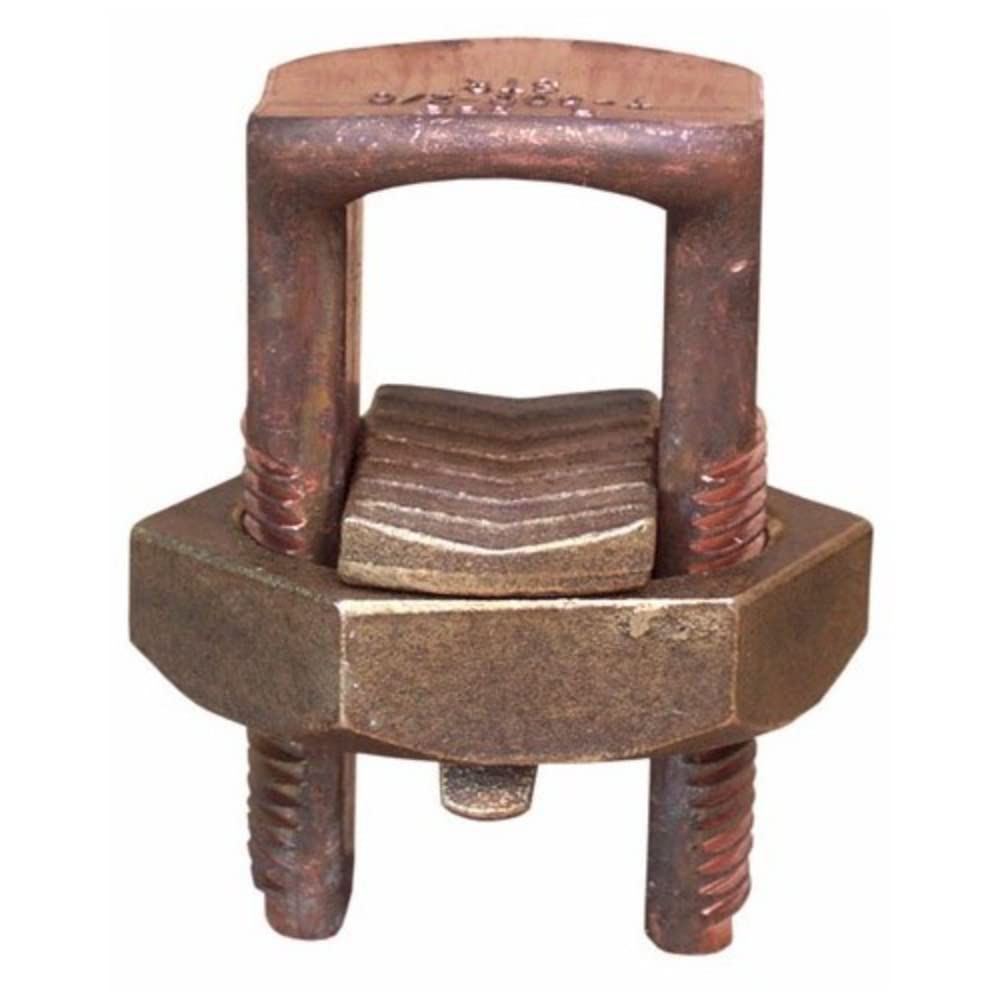

Morris Products 90324 Split Bolt Connector 600 Volts 2/0 2-Pack

Product Description

The Morris Products 90324 Split Bolt Connector provides maximum pressure for a secure connection on various copper conductor combinations. Rated for 600 Volts, this connector is UL486A/CSA Listed and UL467A Listed for direct burial and grounding/bonding applications up to 500MCM. Designed for AWG 2/0 for maximum run to maximum tap and 1-14 for minimum run to minimum tap, it requires a torque of 385 in-lb.

• UL listed for Copper and Copper weld stranded wires only.
• Manufactured from compact, high strength, high copper alloy.
• Features free running threads and easy to grip wrench flats.

Product Highlights

Ensures secure connections for copper conductors, resistant to corrosion, and suitable for direct burial.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 90324

Technical Specifications

• Conductor Type: Copper
• AWG: 2/0
• Max Run To Max Tap: 2/0 - 2/0
• Min Run To Min Tap: 1 - 14
• Max Run To Min Tap: 2/0 - 14
• Min Equal Tap and Run: 2 - 2
• Torque: 385 in-lb
• Voltage Rating: 600 Volts
• Certifications: UL486A/CSA Listed, UL467A Listed for Direct Burial & Grounding/Bonding Applications thru 500MCM
• Product Type: ELECTRONIC_COMPONENT_TERMINAL
• Color: Bronze
• Material: Copper
• Connector Type: Split Bolts
• Electrical Supplies Type: Mechanical Connectors
• Temperature Rating: 257 degree fahrenheit
