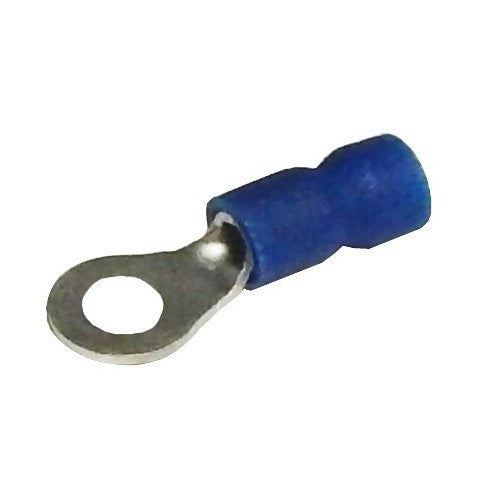

Morris Products 01036 16-14 #10 Vinyl Ring Small Pkg

Product Description

Morris Products 01036 Ring Terminals are designed for electrical connections, featuring a 16-14 AWG wire gauge and a #10 stud size. These vinyl-insulated terminals are electro-tin plated for corrosion resistance and rated for 600 Volts maximum. They are cULus Listed, ensuring compliance with safety standards. The terminals are manufactured from high-strength copper alloy, providing reliable performance for various wiring applications.

• Ring-style wiring terminals are quick and easy to use.
• Safe-to-use design for residential and commercial environments.
• Excellent build quality using premium-grade materials.

Product Highlights

Vinyl insulated ring terminals for secure electrical connections, featuring corrosion resistance and easy wire entry.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 01036

Technical Specifications

• MPN: 01036
• Product Type: Ring Terminal
• Wire Gauge: 16-14 AWG
• Stud Size: #10
• Insulation Material: Vinyl
• Voltage Rating: 600 Volts Max
• Certifications: cULus Listed
• Terminal Material: High strength Copper Alloy
• Plating: Electro-Tin Plated
• Temperature Rating: 167°F (75°C)
• Maximum Electric Current (22 AWG): 9 Amp
• Maximum Electric Current (20 AWG): 12 Amp
• Maximum Electric Current (18 AWG): 17 Amp
• Maximum Electric Current (16 AWG): 18 Amp
• Maximum Electric Current (14 AWG): 30 Amp
• Maximum Electric Current (12 AWG): 35 Amp
• Maximum Electric Current (10 AWG): 50 Amp
• Color: Blue
