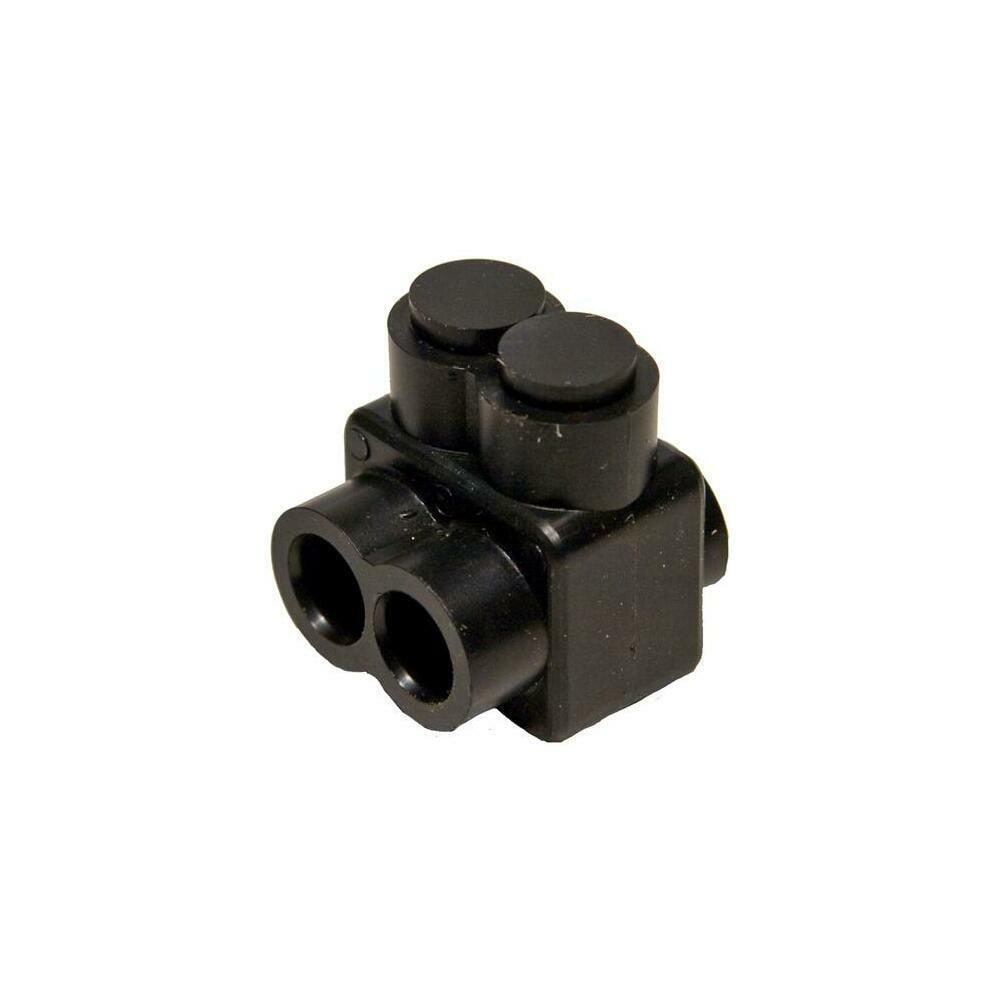

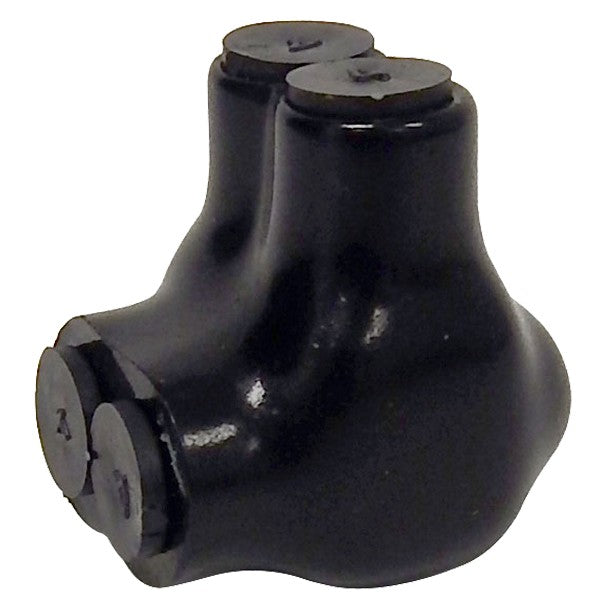

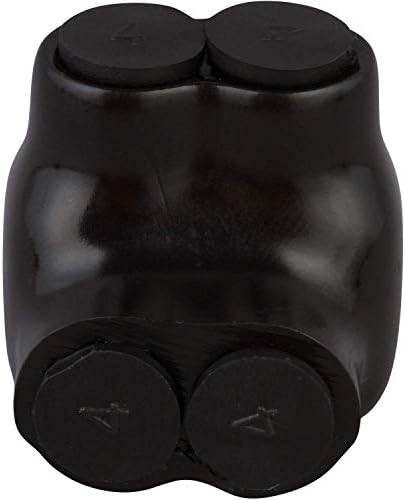

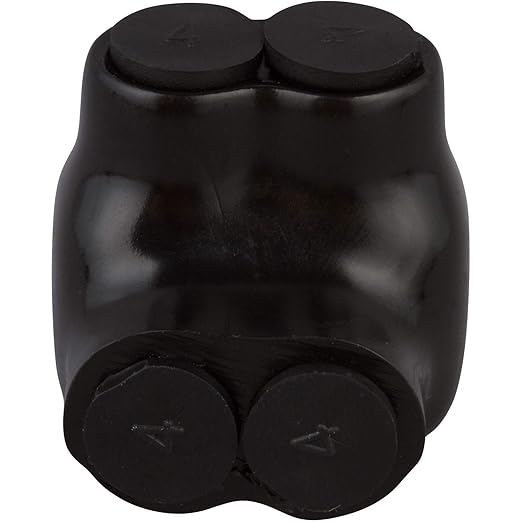

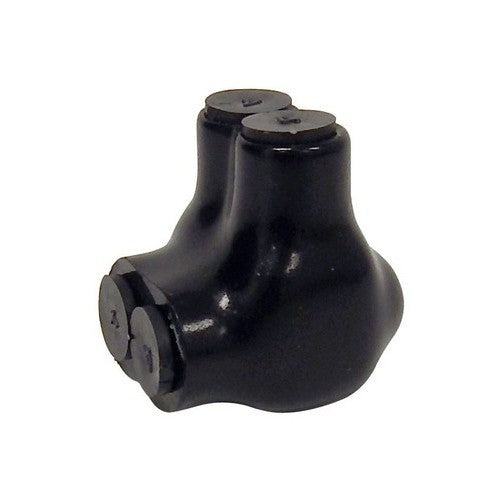

Morris 97106 2/0-2 Black Insulated Connector Single

Product Description

The Morris 97106 2/0-2 Black Insulated Connector is a single-side entry, 2-conductor connector that simplifies cable splicing. It features rugged, high-dielectric rubber and vinyl coating. Pre-filled with oxide inhibitor, the connector has plugs marked with the max wire size for easy identification. Rated to 600V, it is 6061-T6 Aluminum CU9AL dual-rated for use with aluminum and copper wires.

• Insulated with rugged high-dielectric rubber/vinyl coating for long-term use.
• Offers easy re-entry for inspection, troubleshooting and changes.
• Pre-filled with oxide inhibitor and offers a temperature range of -49 to 194 degrees F.

Product Highlights

This black insulated connector is ideal for easy and secure cable splicing, offering durability and convenience for electrical applications.

Product Information

Standard Information

• Brand: MORRIS
• Manufacturer Part Number: 97106

Technical Specifications

• Insulation Material: Rubber and Vinyl
• Material: Aluminum, Rubber
• Electrical Supplies Type: Insulated Connectors, Black Insulated Connectors, Black Insulated 2 Conductor Single Side Entry Splice
• Insulation Type: Rubber
• Maximum Voltage: 600
• Temperature Rating: -49 to 194 Degrees F (-45 to 90 Degrees C)
• Wire Range: 2/0-6
• Number of Ports: 2
• UL Listed: Yes
• Brand: Morris Products
• Part Number: 97106
• UPC: 601986971065
• SKU: Morris-97106
• Length: 1.69 in.
• Height: 1.50 in.
