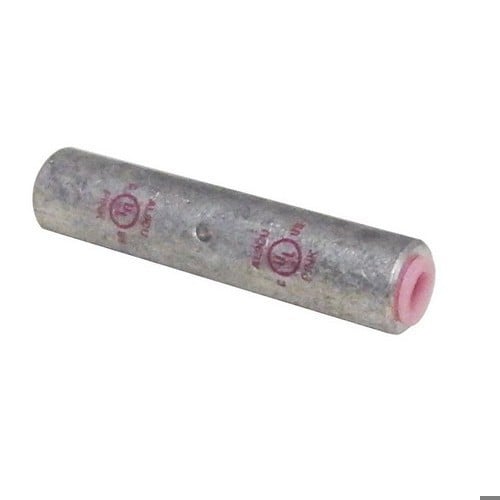

Morris 93214 Long Barrel Compression Splice 2 AWG

Product Description

The Morris 93214 is a long barrel compression splice suitable for 2 AWG stranded copper or aluminum conductors. It features a length of two point three eight inches and is rated for voltages up to thirty five kV. This connector can withstand temperatures reaching ninety degrees Celsius. Constructed from seamless aluminum with an electro-plated tin finish, this splice ensures improved conductivity.

• Dual rated for use with both copper and aluminum conductors
• Connector barrels are treated with an oxide inhibitor to resist corrosion
• Center stop ensures proper cable installation

Product Highlights

The Morris 93214 aluminum compression splice is designed for durability and efficiency in electrical connections.

Product Information

Standard Information

• Conductor: 2 AWG
• Length: 2.38 inches

Technical Specifications

• Connector Type: Crimp Connector
• Voltage: 35 kV
• Temperature: 90 degrees Celsius
• Material: Seamless Aluminum, Electro-Plated Tin
• ID: 0.31 inches
• OD: 0.53 inches
