Morris 93062 MLA4/0-1/2 Alum 1 Hole Lug 35 kV 4/0 AWG 1/2 in Stud

Product Description

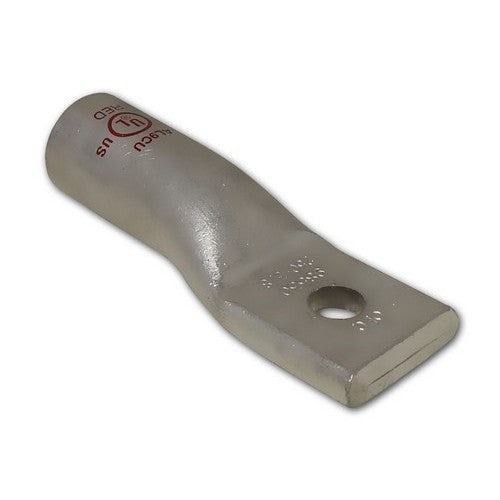

The Morris 93062 is a 1-hole compression lug designed for stranded aluminum/copper conductors. This aluminum lug accommodates 4/0 AWG conductors and is rated for 35 kV applications. It features a long barrel with dimensions of 0.55 in ID x 0.84 in OD x 1.4 in L, and is suitable for a 1/2 in stud. The overall length is 3.43 inches, with a 0.51 inch mounting hole.

• For use with copper or aluminum cables.
• Connector barrel is coated with oxide inhibitor and capped.
• Made of high-conductivity seamless aluminum with uniform bright electro-tin plating.

Product Highlights

This UL 486B and cULus Listed compression lug ensures maximum conductivity and corrosion resistance for electrical connections.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 93062
• Country of Origin: India

Technical Specifications

• Brand: MORRIS
• Barrel Size: 0.55 in ID x 0.84 in OD x 1.4 in L
• Barrel Type: Long
• Color: White
• Conductor Size: 4/0 AWG
• Conductor Type: Stranded Aluminum/Copper
• Material: Aluminum
• Mounting Hole Size: 0.51 in
• Overall Length: 3.43 in
• Stud Size: 1/2 in
• Tongue Size: 1.31 in L x 1.15 in W x 0.29 in THK
• Type: 1-Hole
• Voltage Rating: 35 kV
• MPN: 93062
• Certification: UL 486B, cULus Listed
