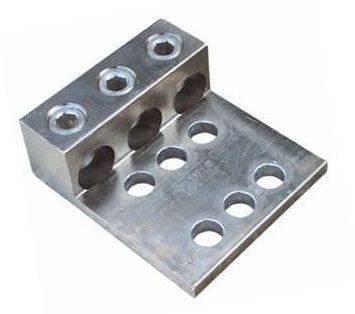

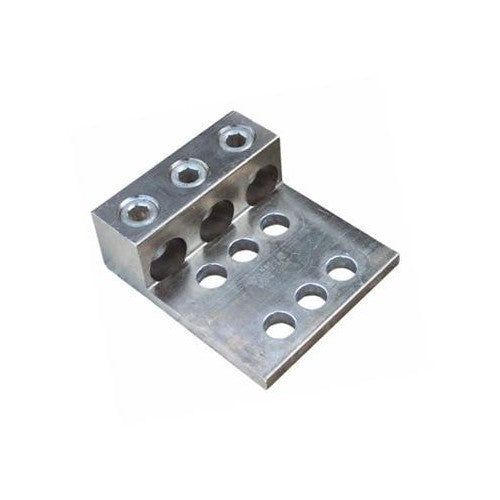

Morris 90857 500 3-Conductor 2/4-Hole Aluminum Lug

Product Description

Morris 90857 500 3-Conductor 2/4-Hole Aluminum Lug is designed for efficient electrical connections. This lug accommodates both two and four-hole mounting options, providing flexibility for various installation scenarios. The product ensures reliable electrical connections and is constructed from durable materials.

• 500MCM Mechanical Lug.
• Made from high-strength 6061-T6 aluminum alloy.
• Compatible with both copper and aluminum conductors.

Product Highlights

The Morris 90857 lug provides strong and secure connections for three conductors, optimized for easy installation with standard tools.

Product Information

Standard Information

• Manufacturer: Morris Products, Inc.
• UPC: 60198690857

Technical Specifications

• Catalog Description: Aluminum mechanical lugs for three conductors, two or four hole mount, 500MCM-#4 AWG.
• Rated Voltage: 600V.
• Temperature Rating: 194°F (90°C).
• Mounting Holes: 6 mounting holes for 2 or 4 bolts.
• Material: High strength 6061-T6 aluminum alloy.
• Plating: Electro-tin plated for low contact resistance.
• Reusability: Assembly can be made with screwdriver or Allen wrench.
• Compliance: UL486B/CSA listed.
