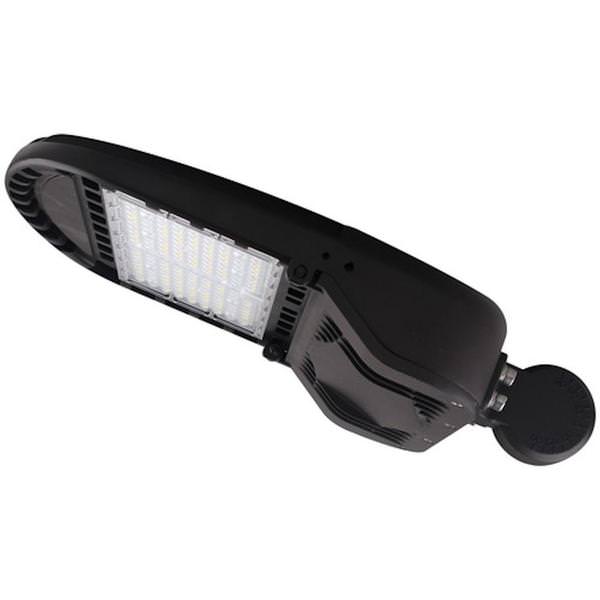

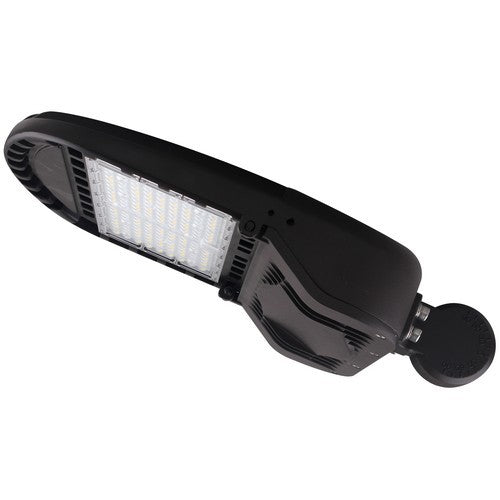

Morris 74014A 150W LED Area Light 5000K 347-480V Type III

Product Description

The Morris 74014A is a 150-watt LED area light. It operates on a voltage range of three hundred forty-seven to four hundred eighty volts. This light is suitable for outdoor applications such as parking lots and roadways, providing reliable illumination. The design includes durable die-cast aluminum housing and a clear polycarbonate lens. It also features type III light distribution and is rated for use in wet locations. This LED area light is capable of replacing traditional Metal Halide and high-pressure sodium fixtures. The product supports 0-10V dimming for added versatility.

• Type III light distribution
• IP65 rating for wet locations
• Rated life of approximately fifty thousand hours

Product Highlights

This area light is energy efficient and has a long service life, making it a sustainable choice for outdoor lighting needs.

Product Information

Standard Information

• Brand: Morris
• MPN: 74014A

Technical Specifications

• UPC: 601986740142
• Wattage: 150 Watts
• Input Voltage: 347-480V
• Input Current: 0.5533A @ 277V; 0.3293A @ 480V
• Frequency: 50/60Hz
• Color Temperature: 5000K
• Lumens: 21,618 Lumens
• Luminous Efficacy: 139 LPW
• Dimmable: Yes, 0-10V Dimming
• Rated Life: 50,000 Hours
• CRI: 75
• Power Factor: >0.9
• THD: 9.84% @ 277V; 10.87% @ 480V
• Light Distribution: Type III
• Housing Material: Die Cast Aluminum
• Lens: Polycarbonate
• Operating Temperature: -40°F to 131°F
• Dimensions: Twelve and five-eighths inches L x Eleven inches H x Three and three-eighths inches W
• Environment: Wet Location
• Warranty: 5 Year Warranty
• Housing Color: Bronze
• IP Rating: IP65 (NEMA 4X)
• Listings: cULus Listed for Wet Locations, DLC Listed
• LEDs: Seoul 3030 LEDs
