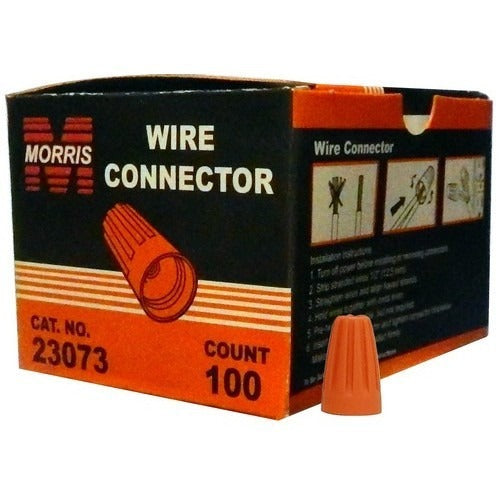

Morris 23073 P3 Screw-On Wire Connector 600V (Box of 100)

Product Description

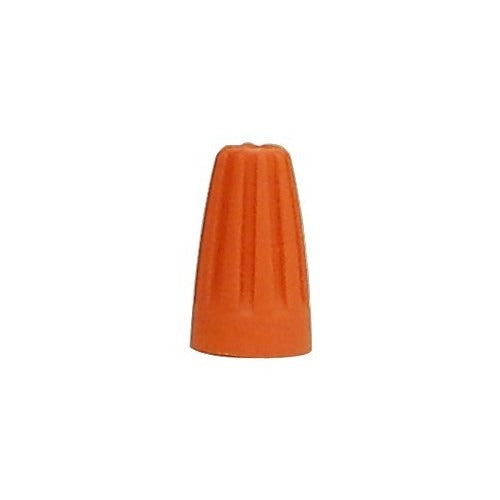

Morris Products 23073 is a P3 screw-on wire connector rated to 600 V and 221°F (105°C) for splicing 22 through 8 AWG conductors. It uses a fixed conical wire spring that forms its own thread so pre-twisting is not required and a reusable screw-on cap for circuit changes. The thermoplastic shell meets UL 94V-2 and is cULus listed; design features include a ribbed cap, deep skirt, and threaded funnel entry to prevent strand splaying and protect against flash-over. Supplied boxed in packs of 100 with dimensions approximately 0.862 in H x 0.48 in W.

• Fixed precise conical spring eliminates the need to pre-twist conductors; reusable screw-on thread for circuit changes
• Covers 22 through 8 AWG, rated 600 V and 221°F (105°C); thermoplastic housing
• UL 94V-2 flame retardant shell with ribbed cap, deep skirt, and threaded funnel entry to reduce strand splaying and flash-over risk

Product Highlights

P3 screw-on connector for 22–8 AWG, 600 V, 221°F (105°C); thermoplastic UL 94V-2 shell; boxed pack of 100; cULus listed.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 23073
