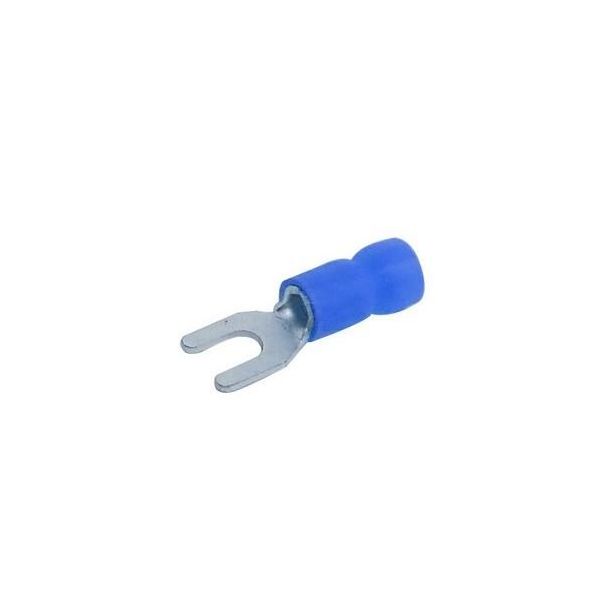

MORRIS 10134 16-14 #8 Vinyl Spade Terminals

Product Description

The MORRIS 10134 16-14 #8 Vinyl Spade Terminals are designed specifically for use with 16 to 14 AWG conductors and fit a #8 stud. These insulated terminals are easy to identify due to their color-coded insulation, ensuring correct wiring every time. They are electro tin plated to provide resistance against corrosion, enhancing durability over time.

• Vinyl insulated for safe connections
• Corrosion-resistant electro tin plating
• Serrated barrel for improved contact

Product Highlights

Reliable and durable spade terminals ideal for electrical applications.

Product Information

Standard Information

• Product Name: MORRIS 16-14 #8 Vinyl Spade Terminals (10134)
• Brand: MORRIS

Technical Specifications

• MPN: 10134
• Conductor Size: 16 to 14 AWG
• Length: 0.886 inches
• Voltage Rating: 600 VAC
• Barrel Type: Butted Seam/Serrated
• Tongue Size: 0.311 inches W x 0.031 inches THK
• Barrel Size: 0.177 inches Dia x 0.453 inches L
• Finish: Electro-Plated Tin
• Temperature Rating: 105 degrees C
• Stud Size: #8
• Tongue Type: Fork/Spade
• Material: Copper
