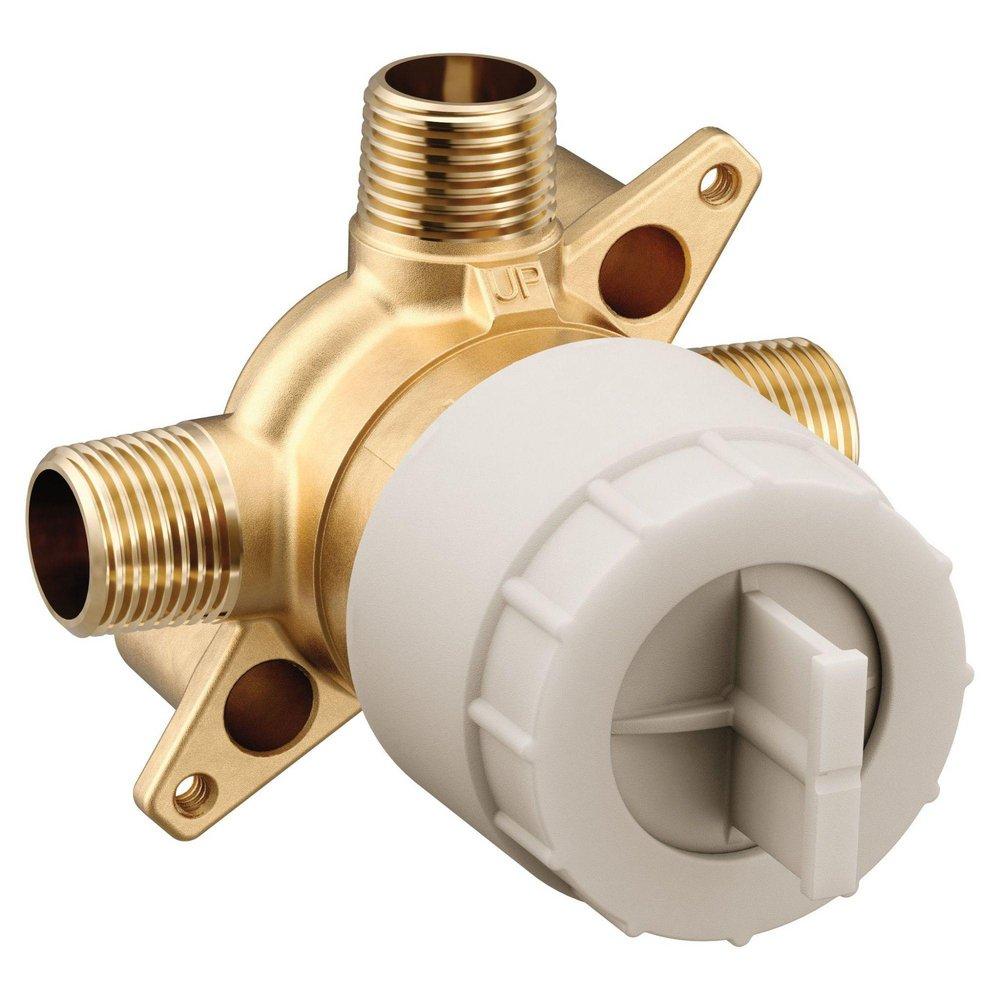

Moen U130CI M-Core 1/2 in. MPT Connection Pressure Balancing Valve

Product Description

The Moen M-Core U130CI is a pressure balancing valve designed for optimal control of shower temperature and water flow. It features a robust 1/2 inch MPT connection and supports multiple outlet and inlet configurations. This valve is part of the Moen M-Core collection, which allows for flexibility in design and functionality.

• Pressure balancing capabilities to maintain stable temperature during fluctuations in water pressure.
• Features a volume control to adjust water flow.
• Integrated test cap for easy flushing and testing without valve removal.

Product Highlights

This valve is designed for both residential and commercial applications, providing reliability and ease of installation.

Product Information

Standard Information

• Brand: Moen
• MPN: U130CI

Technical Specifications

• Inlet Size: 1/2 inch CC/IPS
• Outlet Size: 1/2 inch CC/IPS
• Material: Brass
• Pressure Rating: 200 psi Air, 300 psi Water
• Temperature Rating: 160 degrees Fahrenheit
• Warranty: Lifetime limited
• Collection: M-Core
• Includes: Test Plug
• Standards/Approvals: ASME A112.18.1/CSA B125.1
