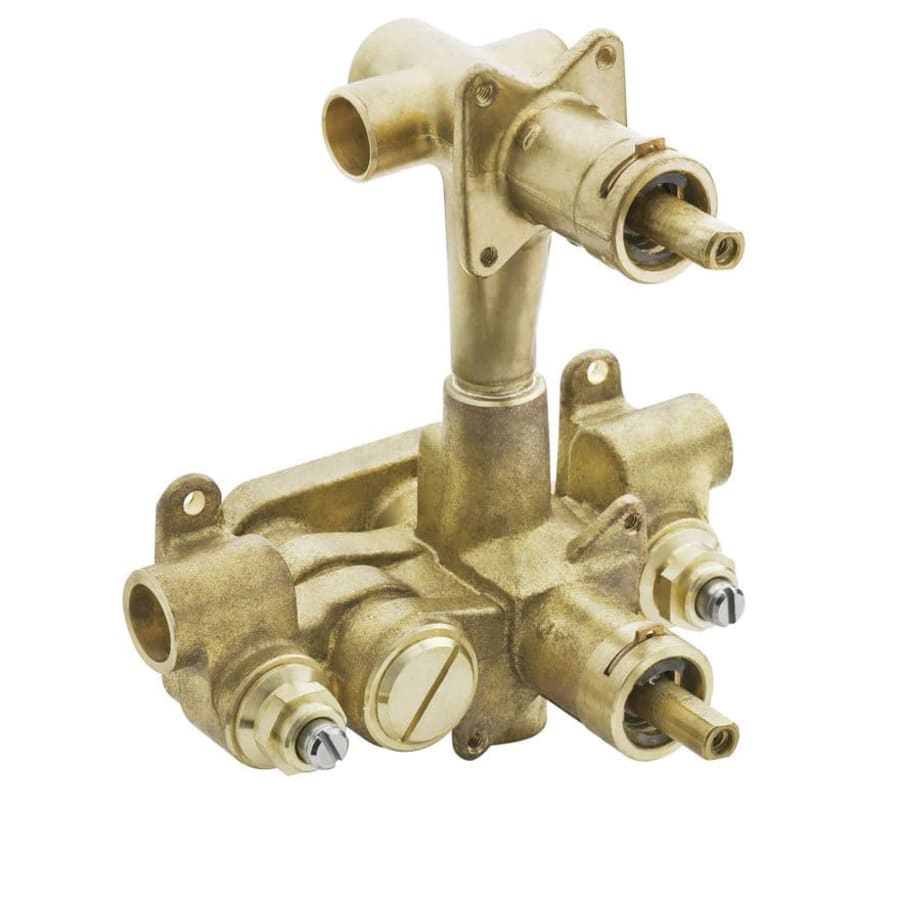

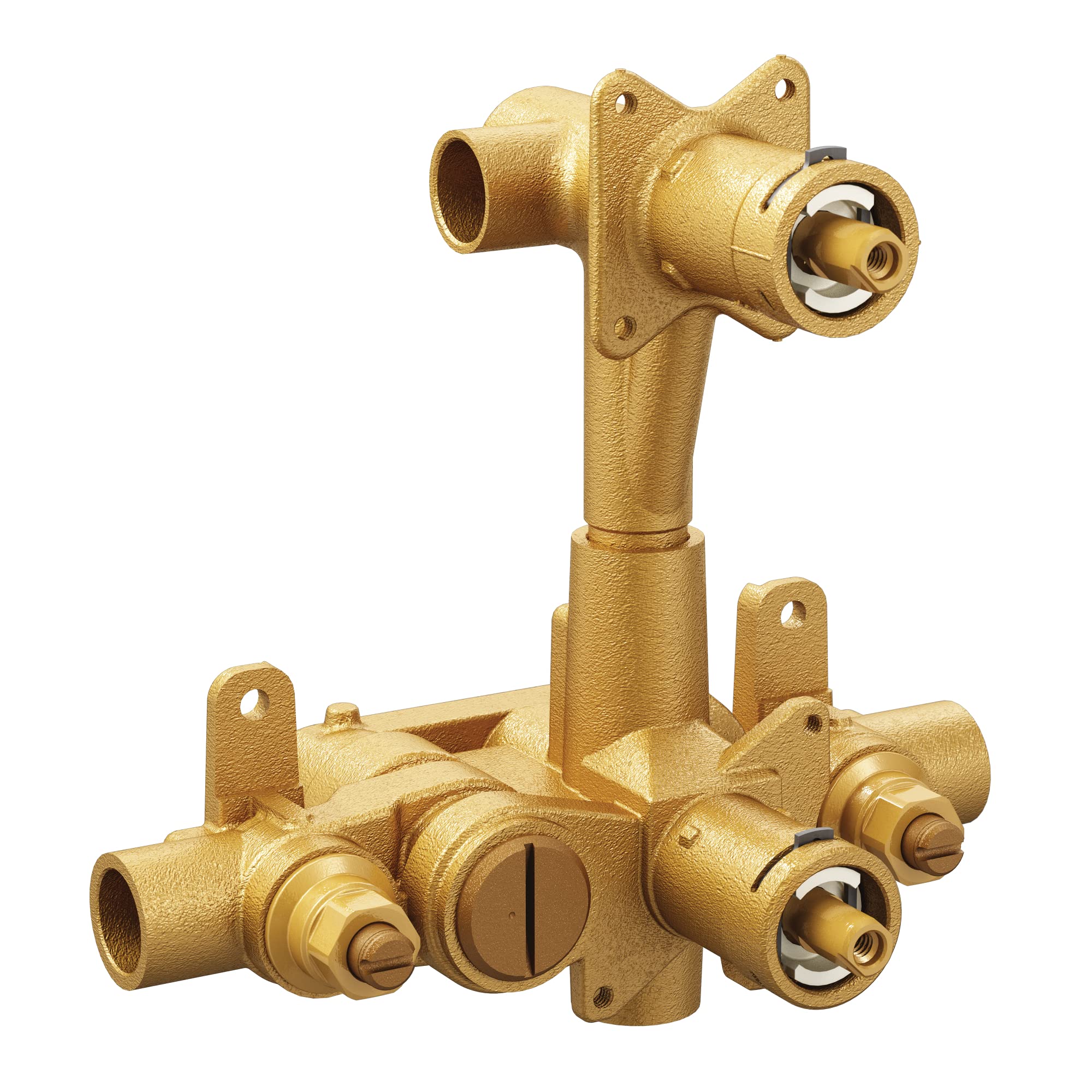

Moen 3330 M-Pact Moentrol Transfer Valve, 3-Function, 1/2 inches CC Connection

Product Description

The MOEN 3330 M-Pact Moentrol CC transfer valve allows you to upgrade the trim style without replacing the valves. It features a 1/2-inch CC connection, 1225 cartridge design for Moentrol valve, and a 116719 cartridge design for the transfer valve. The Moentrol valve system allows you to adjust both water volume and temperature using a single lever.

• Built on the Moen M-PACT common valve system for future faucet style updates without replacing plumbing.
• Moentrol valve helps maintain water pressure and temperature.
• Features a 1/2-inch CC connection type.

Product Highlights

The MOEN M-Pact transfer valve allows for decor changes without plumbing modifications. It delivers consistent water coverage and features temperature memory to prevent surges.

Product Information

Standard Information

• Brand: MOEN
• Manufacturer Part Number: 3330

Technical Specifications

• MPN: 3330
• Brand: MOEN
• Connection Size: 1/2-inch IPS connections
• Valve Type: Moentrol pressure-balancing control valve with transfer
• Connection Type: 1/2-inch CC
• Cartridge Design: 1225 (Moentrol valve) and 116719 (transfer valve)
• Rotation: 180-degree rotation of the transfer valve handle with stops
• Number of Ports: 4
• Number of Outlets: 2
• Size: 1/2"
• Body Material: Brass
• Inlet Size: 1/2 in
• Inlet Type: Sweat
• Number of Ways: 4
• Outlet Size: 1/2 in
• Overall Depth: 7 in
• Overall Length: 5-4/5 in
• Overall Width: 5-1/2 in
• Theme/Style: Modern
• Inlet Diameter: .5 in.
• Outlet Diameter: .5 in.
• Water Connection: 1/2"
• Configuration: Shower Valve
• Digital: No
• Material: Brass
• Number of Functions: 3
• Scald Guard: Yes
• Theme: Modern
• Valve Function: Pressure Balance
• Water Connection Type: Sweat
• Compatible with MPACT Valve: Yes
• ASME Code: A112.18.1M
• Certifications: ASME, CSA
• CSA Code: B125
