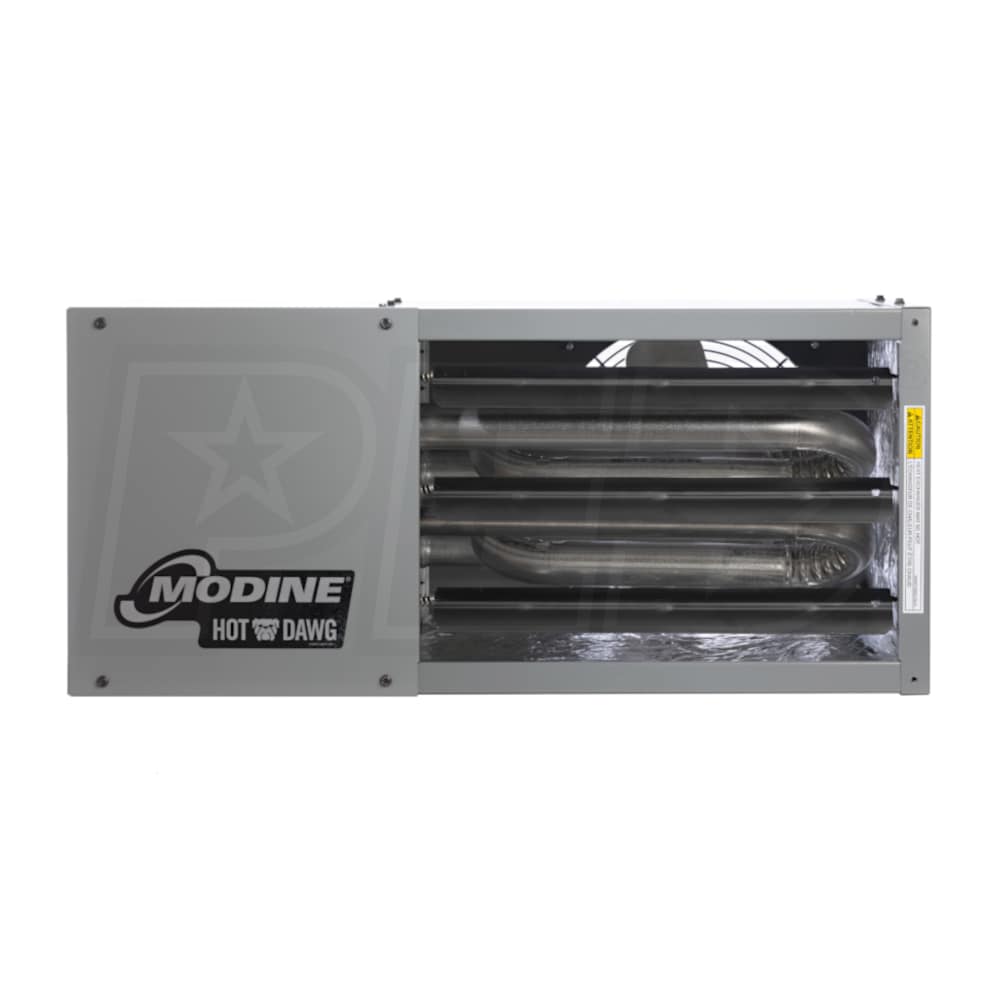

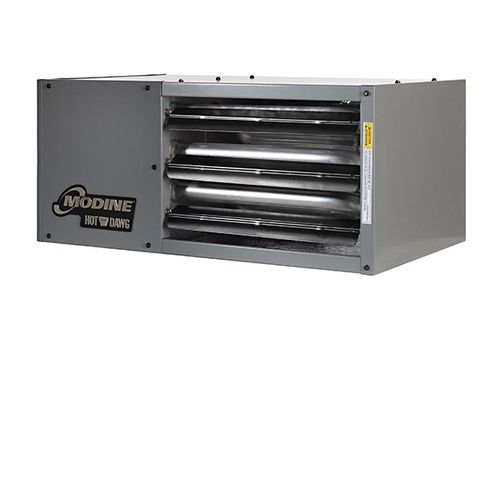

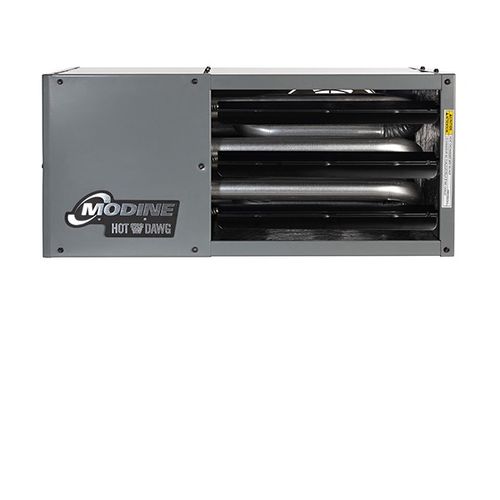

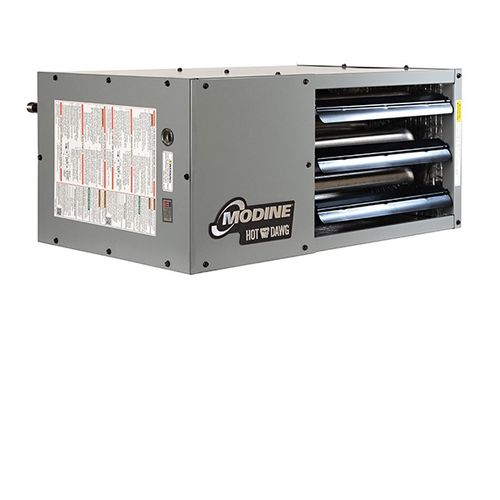

Modine HDS60AS0111FCAN Hot Dawg Separated Combustion Unit Heater

Product Description

The Modine HDS60AS0111FCAN is a natural gas-fired hot dawg separated combustion unit heater suitable for residential, commercial, and industrial applications. This heater draws combustion air from an external source, enhancing performance and safety. It features a reliable direct spark ignition system and a single-stage gas control for efficient operation. The unit includes a propeller fan equipped with a finger-proof guard, reducing the risk of injury during operation. The heat exchanger is constructed from aluminized steel in a bent tubular design for effective heating.

• Separated combustion design enhances safety by sourcing air externally.
• Includes propeller fan with finger-proof protection.
• Constructed with aluminized steel for durability.

Product Highlights

This unit provides efficient heating with a design that focuses on safety and performance. It is certified for various settings, making it versatile and reliable.

Product Information

Standard Information

• Brand: Modine
• MPN: HDS60AS0111FCAN

Technical Specifications

• Fuel Type: Natural Gas
• BTU Input: 60000
• BTU Output: 48000
• Stages: 1
• Input Voltage: 115 Volts
• Frequency: 60 Hz
• Phase: 1
• Heat Exchanger Material: Aluminized steel
• Heat Exchanger Type: Bent tubular
• Fan Type: Propeller fan
• Fan Guard: Finger proof
• Airflow: 990 CFM
• Air Temp. Rise: 45 degrees
• Mounting: Low clearance mounting rails standard on sizes 30-75, optional on 100-125
• Certification: Certified for residential, commercial and industrial use
• Thermal Efficiency: 80%
• Flue Connection Size: 3 inches
• Gas Piping Diameter: 1/2 inch
• Product Height: 18 inches
• Product Width: 26 19/24 inches
• Product Depth: 25 inches
• Product Weight: 80 pounds
• Horse Power: 1/12
• Vent Type: Power Vent
