Product Description

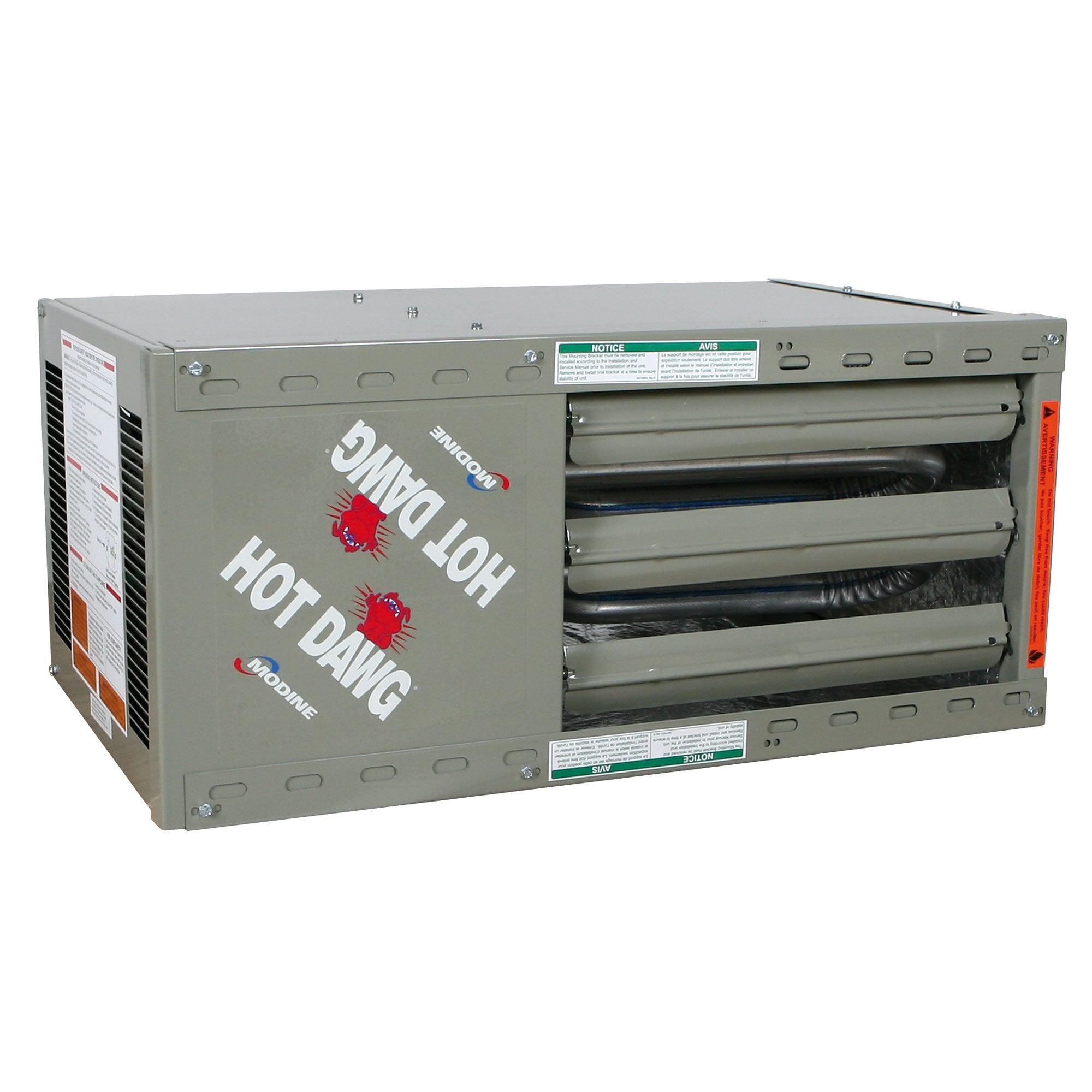

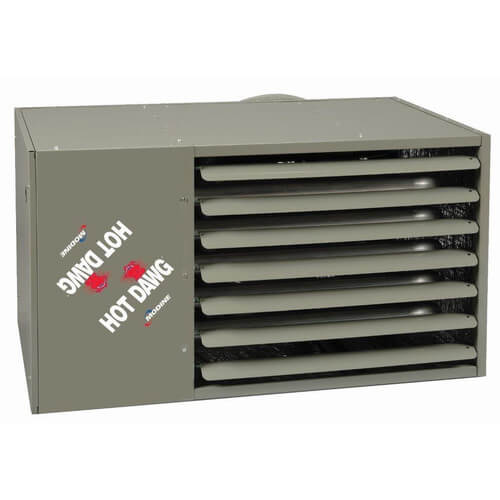

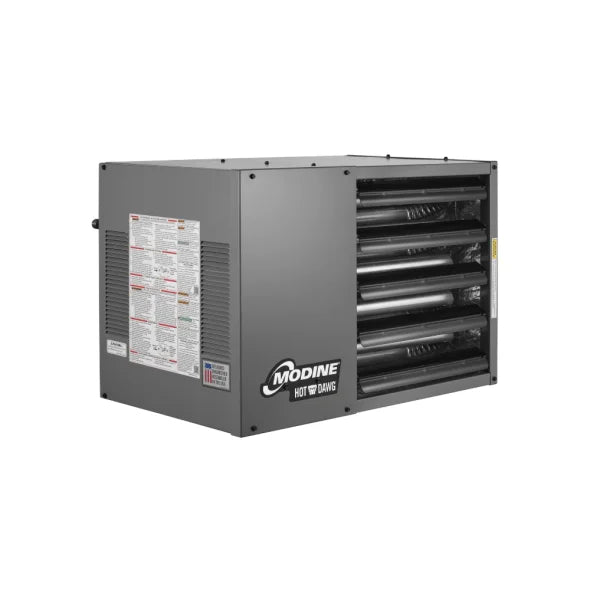

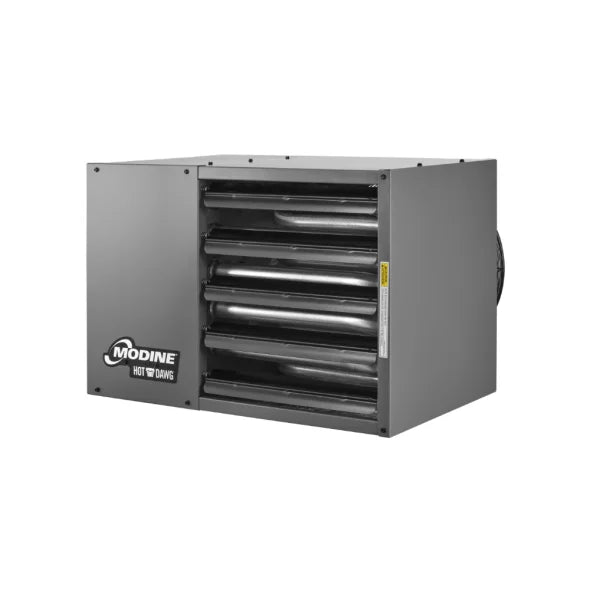

The Modine HD125AS0121 Hot Dawg HD is a gas-fired unit heater ideal for heating, ventilating, and air conditioning in garages and commercial spaces. It features a power venting system and an aluminized steel heat exchanger with a 10-year warranty. The unit operates quietly and has a low-profile design for unobtrusive installation. It requires professional installation.
- Quiet operation ensures the heater is effective without being distracting.
- Low profile design allows for easy mounting with minimal clearance.
- Aluminized steel heat exchanger provides durability and corrosion resistance.
Product Highlights
This Modine Hot Dawg unit heater provides efficient and quiet heating for residential and commercial spaces, featuring a durable design and easy installation.
Product Information
Standard Information
-
Brand: MODINE
-
Manufacturer Part Number: HD125AS0121
-
Country of Origin: USA
Technical Specifications
-
Fuel Type: Liquid Propane
-
Phase: 1
-
Air Throw: 56 Feet
-
Voltage: 115 Volts
-
Product Depth: 31 Inches
-
Product Width: 35 1/2 Inches
-
CSA Listed: Yes
-
ETL Listed: Yes
-
Product Height: 20 1/2 Inches
-
Frequency: 60 Hz
-
Product Category: Unit Heater
-
Heating Capacity: 100000 BTU
-
Maximum Air Flow: 1980 CFM
-
Vent Type: Power Vent
-
Gas Piping Diameter: 1/2 Inch
-
Thermal Efficiency: 80 %
-
Flue Connection Size: 4 Inches
-
Country of Origin: United States
-
Product Line: Hot Dawg HD
-
Configuration: Horizontal
-
Maximum Input Capacity: 125000 BTU
-
Gas Conversion Kit: Available
-
Heat Exchanger Material: Aluminized Steel
-
BTU: 125000 Btu/hr Input, 102500 Btu/hr Output
-
AFUE: 80%
-
Burner: Single-stage
-
Installation Type: Ceiling Mount
-
Certified Usage: Residential and Commercial Use
-
Separated Combustion Chamber: No
-
Heating BTUs (Input): 125000
-
Heating BTUs (Output): 102500
-
Noise Level (dBA): 58
-
CFMs: 1980
-
Output Velocity (FPMs): 747
-
Discharge Air Temperature Rise (°F): 47
-
Gas Connection Size: 1/2"
-
Vent Connection Size (in.): 4"
-
Top to Ceiling (in.): 1"
-
Bottom to Floor (in.): 1"
-
To Side Wall (in.): 1"
-
To Rear Wall (in.): 18"
-
Access Panel (in.): 18"
-
Flue / Vent Connector (in.): 4"
-
Width (in.): 35.5
-
Depth (in.): 24
-
Height (in.): 20.5
-
Voltage Rating: 115 V
-
Amps: NA
-
Circuit Breaker Size (Amps): 15
-
Air Temp Rise: 47° F
-
Construction: Aluminized Steel
-
Hertz: 60
-
Max Mount Height: 16'
-
Model: HD
-
HP Rating: 1/8 hp
-
Rotational Speed: 1625 rpm
-
Number of Stages: 1
-
Mounting Type: Ceiling
-
Flow Rate: 1980 cfm
-
Motor Type: PSC
-
Temperature Rating: 47 deg F
-
Material: Metal
-
Dimensions: 35-1/2 in L x 31 in W x 20-1/2 in H
-
Domestic/Import: Domestic
-
Additional Information: Aluminized Heat Exchanger, Finger-Proof Fan Guard Digit, Power-Exhausted
-
Electrical Phases: 1
-
Maximum room size: 1980 sq ft
