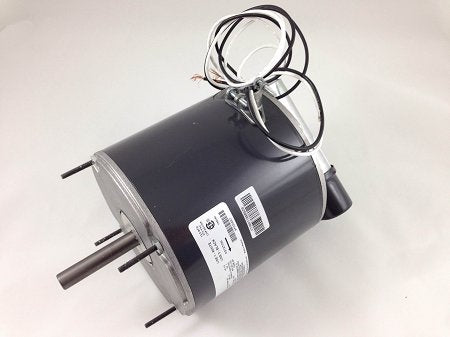

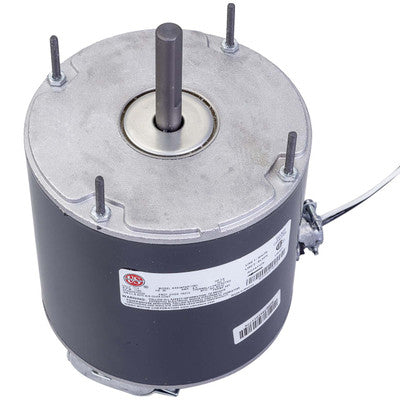

Modine 9F30097 Motor 1/3 HP Replacement 9F0300970000

Product Description

The Modine 9F30097 is an OEM motor with 1/3 HP. This motor operates at 115V, 60 Hz, and 1 Phase, with a current of 4.2 Amp and a CCW rotation at 1140 RPM. It features a 1/2 inch shaft diameter and 4 mounting lugs, and includes a 12.5 MFD, 370 VAC motor start capacitor.

• Original OEM part
• Replacement motor
• Alternative part number 9F0300970000

Product Highlights

The Modine 9F30097 motor is a direct replacement part suitable for various models including FP250, PA300, and VL212.

Product Information

Standard Information

• Brand: MODINE
• Manufacturer Part Number: 9F30097

Technical Specifications

• Manufacturer: Modine
• Brand: Modine
• Product Type: ELECTRIC_MOTOR
• MPN: 9F30097
• Alternative Part Number: 9F0300970000
• Horsepower: 1/3 Hp
• Voltage: 115 Volt
• Frequency: 60 Hz
• Phase: 1 Ph
• Amperage: 4.2 Amp
• Rotation: CCW
• RPM: 1140 Rpm
• Shaft Diameter: 1/2 Inch
• Mounting: 4 Mounting Lugs
• Capacitor: With 12.5 MFD, 370 VAC Motor Start Capacitor
