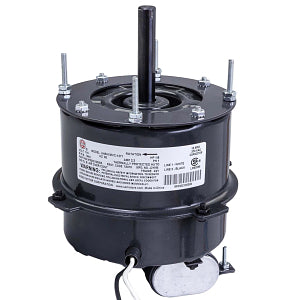

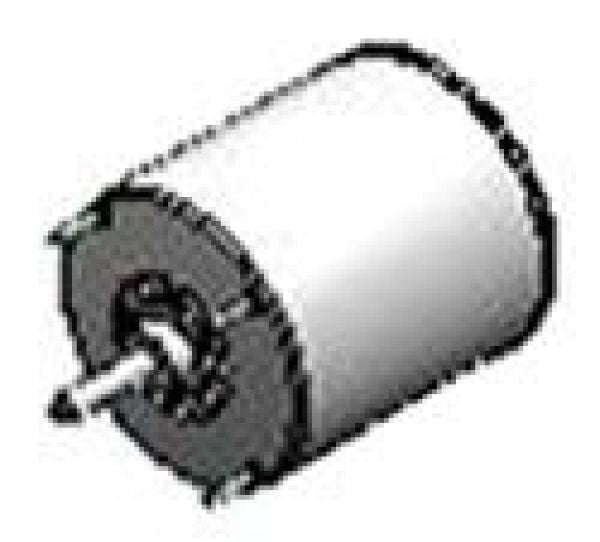

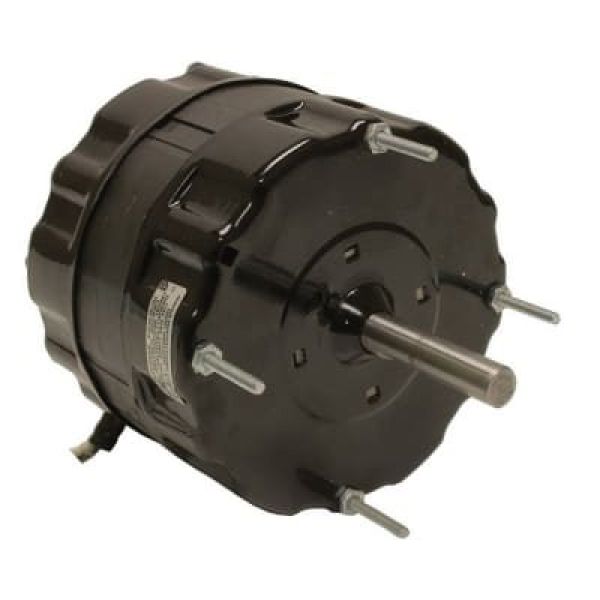

Modine 37569 Fan Motor PDP150 120V

Product Description

The Modine 37569 Fan Motor is designed for use with HC86, HC108, HSB86, HSB108, PDP125, and PDP150 heaters. This fan motor operates at 115V and 60 Hz, delivering 1/8 HP power at 1440 RPM. It features a CW rotation and an amperage rating of 2.2 A.

• Four mounting studs shaft ends
• Capacitor 10 uF at 370 V
• Shaft Size: 2-1/8 in L x 1/2 in Dia

Product Highlights

The Modine 37569 fan motor is suitable for unit heater applications. It ensures efficient and reliable performance.

Product Information

Standard Information

• Brand: MODINE
• Manufacturer Part Number: 37569

Technical Specifications

• Manufacturer Part Number: 37569
• Amperage Rating: 2.2 A
• Application: For use with HC86, HC108, HSB86, HSB108, PDP125, PDP150 heaters
• Brand: Modine
• Frequency Rating: 60 Hz
• HP Rating: 1/8 hp
• Rotation Type: CW
• Shaft Size: 2-1/8 in L x 1/2 in Dia
• Speed Rating: 1440 rev/min
• Type: Fan Motor
• Voltage Rating: 115 V
• UPC: 046629375693
• Used On: Unit Heater
