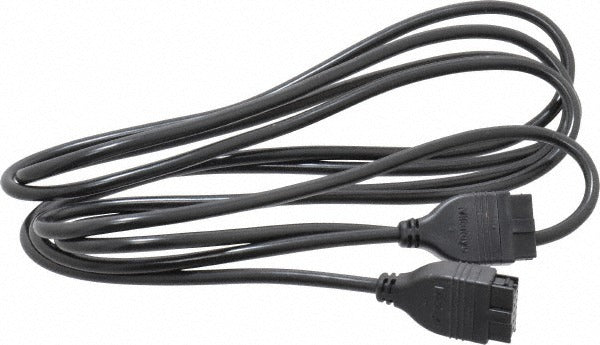

Mitutoyo 965014 Spc Data Collection Cable 80 Inches

Product Description

The MITUTOYO 965014 is a remote data collection SPC cable designed to connect Mitutoyo Digimatic measuring instruments to SPC data collection systems, computers, or compatible data processors. Stretching 80 inches (2.03 meters) in overall length, this cable provides ample reach for bench and in-line measurement setups. It is used by metrologists, quality technicians, and calibration professionals who need to transfer live measurement data from gauges and indicators into statistical process control software without manual entry. The cable ships as a single unit and is a direct accessory from the Mitutoyo measuring instrument line.

This cable is suited for quality control environments in manufacturing, inspection labs, and calibration stations where real-time SPC data logging is required. It connects a range of Mitutoyo Digimatic instruments to downstream data collection hardware or software. Compatible instruments include Absolute Digimatic Indicator ID-F, Absolute Digimatic Indicator ID-H, Absolute Digimatic Scale Units, EB Counter, EC Counter, EH Counter, EV Counter, High Precision Absolute Digital Height Gage, HM-211/221, Linear Gauge LGS, Litematic, and Litematic Head. Installation is performed by calibration technicians or quality engineers familiar with Mitutoyo SPC setups.

Key Features

• 80-inch (2.03-meter) cable length provides flexible reach in bench and production environments
• Designed for remote data collection via SPC output port on compatible Mitutoyo instruments
• Supports live measurement data transfer to SPC software, eliminating manual transcription errors
• Compatible with a broad range of Mitutoyo Digimatic counters, indicators, and height gages
• Single-unit packaging for straightforward replacement or spare stocking

Compatibility

Compatible with the following Mitutoyo instruments as stated by the manufacturer: Absolute Digimatic Indicator ID-F, Absolute Digimatic Indicator ID-H, Absolute Digimatic Scale Units, EB Counter, EC Counter, EH Counter, EV Counter, High Precision Absolute Digital Height Gage, HM-211/221, Linear Gauge LGS, Litematic, and Litematic Head.

Installation Notes

This cable is installed by calibration technicians or quality engineers working with Mitutoyo SPC-enabled instruments. Power down or disable the measuring instrument before connecting or disconnecting the SPC cable to avoid data errors or port damage. Ensure the cable connector is fully seated at both the instrument and the data collection device before initiating a measurement session. Inspect the cable and connectors for damage before each use, as bent pins or a damaged housing can cause intermittent data loss.
