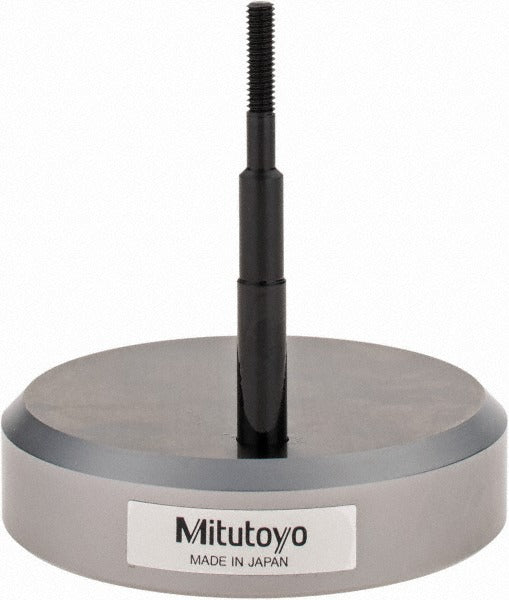

Mitutoyo 950758 Micrometer Disc Anvil 0-1 Inch

Product Description

The MITUTOYO 950758 is a disc-type replacement anvil designed for use with 0 to 1 inch outside micrometers. The anvil is a precision contact component that sits opposite the spindle and establishes the measuring reference surface. Worn or damaged anvils introduce measurement error, making direct replacement a straightforward way to restore calibration-grade accuracy to an existing micrometer frame. At 0.9 pounds, this is a compact, single-piece accessory suited for bench use in machine shops, tool rooms, fabrication facilities, and metrology departments. Installation requires basic hand tools and a steady work surface.

This anvil is intended for use in precision measurement applications where the existing anvil surface has become worn, damaged, or out of spec. It fits 0 to 1 inch range micrometers and is appropriate for dimensional inspection tasks in manufacturing, maintenance, and quality control environments. Machinists, tool and die makers, and metrology technicians are the primary installers and users of this type of replacement component.

Key Features

• Disc-type anvil geometry provides a flat, stable contact surface for accurate measurement
• Designed as a direct replacement for worn or damaged anvil components
• Compatible with 0 to 1 inch range micrometers
• Restores measurement accuracy without full micrometer replacement
• Compact single-piece construction for straightforward installation

Compatibility

Designed for use with 0 to 1 inch outside micrometers requiring a disc-type anvil replacement.

Installation Notes

Installation should be performed by a qualified machinist or metrology technician familiar with micrometer disassembly procedures. Before servicing, ensure the micrometer is clean and placed on a stable, non-marring surface. Use only manufacturer-recommended tools to avoid damage to precision surfaces. After replacement, verify calibration against a known standard before returning the instrument to service.
