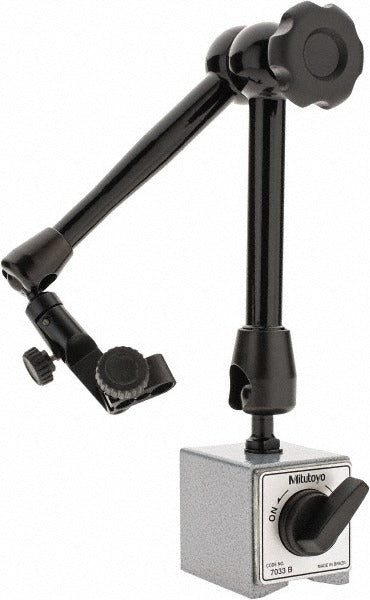

Mitutoyo 7033-10 Magnetic Indicator Base with on Off Switch

Product Description

The MITUTOYO 7033-10 is a magnetic indicator base designed to hold dial indicators, test indicators, and similar instruments during precision measurement tasks. The base features an on/off magnetic switch that allows the technician to engage or release the magnetic hold quickly without disturbing the setup. The dovetail mount type provides a secure, repeatable connection to the included holder. With a base length of 55 mm, base width of 50 mm, and base height of 60 mm, this unit fits standard benchtop and machine-surface inspection setups. The unit weighs 2 pounds and is suited for metrology, quality control, and machine shop inspection work.

This magnetic base is used in precision measurement environments such as machine shops, quality inspection stations, and manufacturing floor setups. It is compatible with mounting stems ranging from 6.00 mm to 9.53 mm in diameter, making it suitable for a wide range of indicator holders and accessory arms. The post height of 382 mm provides sufficient reach for most dial indicator positioning needs. Machinists, metrologists, and quality control technicians are the primary installers and users of this equipment.

Key Features

• On/Off magnetic switch for fast, non-disruptive setup and release
• Dovetail mount type for secure and repeatable indicator positioning
• Compatible with mounting stem diameters of 6.00 mm, 8.00 mm, and 9.53 mm
• Post height of 382 mm for extended indicator reach
• Includes holder for complete out-of-box usability
• Compact base footprint: 55 mm length by 50 mm width by 60 mm height

Compatibility

Designed for use with dial indicators and test indicators that mount to stems ranging from 6.00 mm to 9.53 mm in diameter using a dovetail-style holder connection.

Installation Notes

Place the magnetic base on a clean, flat ferrous surface before engaging the magnetic switch. Ensure the mounting surface is free of chips, oil film buildup, or debris that could reduce holding force. Only engage the magnet after the indicator and holder are fully secured to the post. Do not use this base on non-ferrous surfaces where magnetic adhesion cannot be achieved.
