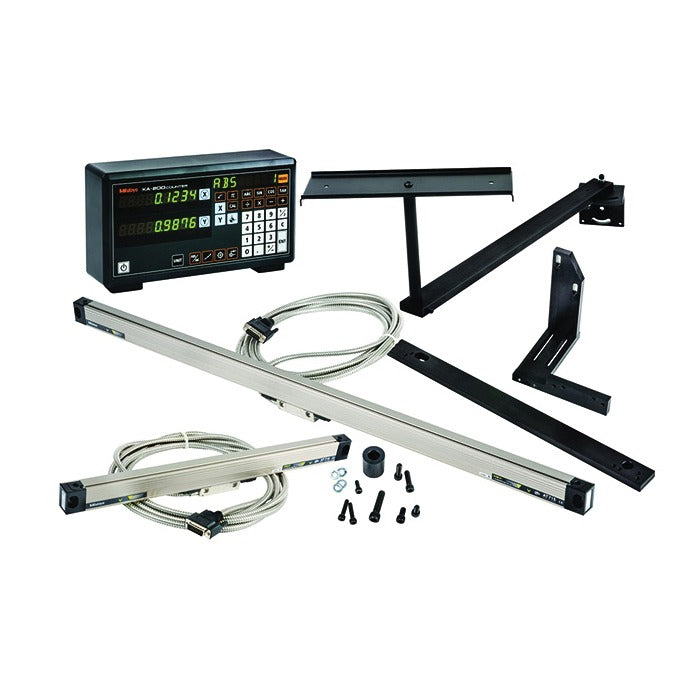

Mitutoyo 64PKA059A 174 Digital Readout Package (36 in x 12 in, 2-Axis)

Product Description

Mitutoyo 64PKA059A is a Series 174 digital readout package for milling applications that provides 2-axis measurement across a 36 in x 12 in range. It offers absolute and incremental modes, calculation functions, and selectable resolutions of 0.010/0.005/0.002/0.001 mm (with selection down to 0.0001 in). The package includes ABS scales with IP67 rating, adjustable high-brightness LED displays, error compensation, scale test, and data output for spreadsheet integration.

• 2-axis travel with 36 in x 12 in measuring range; Series 174 digital readout package
• Selectable resolutions 0.010/0.005/0.002/0.001 mm and down to 0.0001 in; accuracy ±(7 + 13L/1000) µm
• Absolute and incremental modes, calculation and non-linear/linear error compensation, IP67-rated ABS scales, and spreadsheet data output

Product Highlights

Series 174 2-axis DRO with ABS scales, IP67 rating, selectable high resolution, and spreadsheet output

Product Information

Standard Information

• Brand: MITUTOYO
• Manufacturer Part Number: 64PKA059A
• Country of Origin: United States
