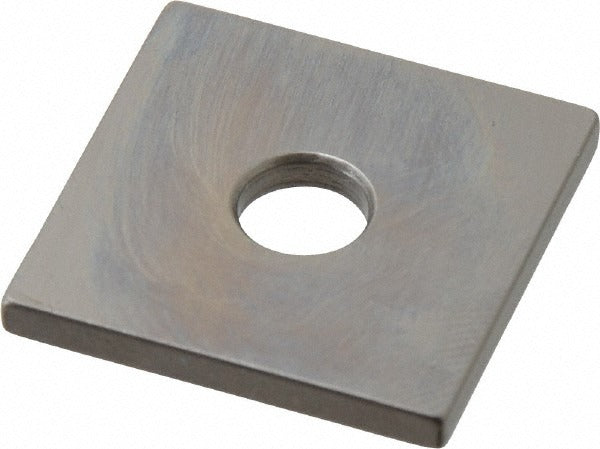

Mitutoyo 614142-531 Square Steel Gage Block 0.102 in Grade 0

Product Description

The MITUTOYO 614142-531 is a square steel gage block measuring 0.102 inches, manufactured to Grade 0 accuracy. Gage blocks serve as precision length reference standards used to calibrate measuring instruments, set comparators, and verify dimensional tolerances in manufacturing and metrology environments. This block conforms to ASME standards and ships with a Certificate of Inspection, confirming it has been verified against traceable accuracy requirements. Grade 0 represents a high level of dimensional accuracy suitable for toolroom and inspection use. The steel construction provides the durability and stability required for repeated use in precision measurement workflows.

This gage block is used in industrial metrology, quality control labs, toolrooms, and precision machining environments. It is appropriate for calibrating micrometers, height gages, and similar instruments, as well as for setting up inspection fixtures. The 0.102-inch size makes it a useful building block in combination sets for building up specific reference dimensions. Installation and handling are performed by metrology technicians, toolroom machinists, and quality control personnel in both production and inspection settings.

Key Features

• Grade 0 accuracy per ASME standards for high-precision reference use
• Square steel construction provides durability and long-term dimensional stability
• 0.102-inch nominal size for use as a standalone reference or in combination with other blocks
• Includes Certificate of Inspection confirming traceable dimensional verification
• Suitable for calibrating measuring instruments and setting comparators

Compatibility

Designed as an OEM-style precision reference standard compatible with standard gage block accessories, holders, and wring combinations used in ASME-compliant metrology applications.

Installation Notes

Gage blocks should be handled by metrology technicians or toolroom personnel familiar with proper wringing technique and care procedures. Always clean block faces with an appropriate solvent before use to remove oils and debris that can affect measurement accuracy. Store blocks in their protective case when not in use to prevent corrosion and surface damage. Follow your facility's calibration control procedures and applicable ASME standards when placing gage blocks into service as reference standards.
