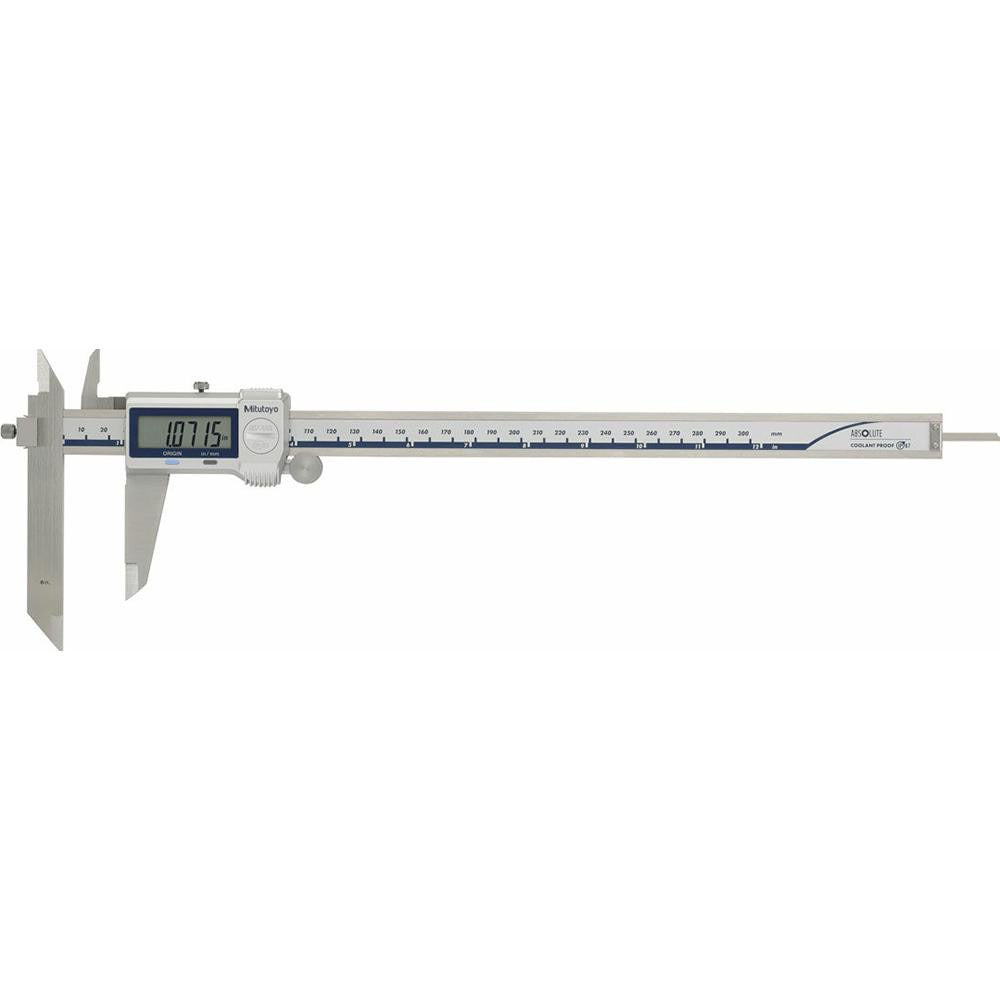

Mitutoyo 573-701-20 Electronic Caliper 0-6 in IP67

Product Description

The MITUTOYO 573-701-20 is an electronic digital caliper from the 573 ABSOLUTE Digimatic Offset series, designed for precise dimensional measurement in shop, field, and maintenance environments. It delivers a measurement range of 0 to 6 inches with a resolution of 0.0005 inches and an accuracy of 0.0010 inches. The caliper body and jaws are constructed from hardened stainless steel for durability in demanding conditions. The IP67 rating makes it resistant to coolant splash, dust, and brief immersion, so it holds up on the shop floor. It is powered by a single SR44 silver oxide battery, which ships included with the unit. Licensed HVAC technicians, machinists, plumbers, and precision-trade professionals rely on this tool for outside diameter, inside diameter, depth, and step measurements.

The 573-701-20 is suited for residential and commercial trade applications where accurate dimensional verification is required during fabrication, repair, or quality inspection. Its offset jaw design with knife-edge jaws allows access to recessed features and narrow grooves that standard caliper jaws cannot reach. The jaws measure 1.5748 inches in length and support inside, outside, and offset measurement styles. A built-in depth measurement rod extends the caliper's utility to blind-bore and stepped-surface checks. The included carrying case keeps the tool protected between uses on the job.

Key Features

• 0 to 6 inch measurement range with 0.0005 inch resolution and 0.0010 inch accuracy
• IP67-rated hardened stainless steel body and jaws resist coolant, chips, and brief immersion
• Offset knife-edge jaws (1.5748 inches long) reach recessed and narrow features
• Supports four measurement modes: outside diameter, inside diameter, depth, and step
• Data output port for SPC integration and digital recordkeeping
• TUV Rheinland certified; powered by one included SR44 silver oxide battery
• Includes depth measurement rod and protective carrying case

Compatibility

Designed as a standalone precision measurement instrument in the MITUTOYO 573 ABSOLUTE Digimatic Offset series. Compatible with standard SPC data collection systems via the built-in data output port.

Installation Notes

No installation is required for this handheld measurement tool. Before use, verify the caliper zeroes correctly with jaws fully closed. Keep the measurement faces clean and free of chips or debris to maintain accuracy. Store in the included case when not in use to protect the jaws and display from impact damage.
