Mitutoyo 572-614 Horizontal Electronic Linear Scale 6 in

Product Description

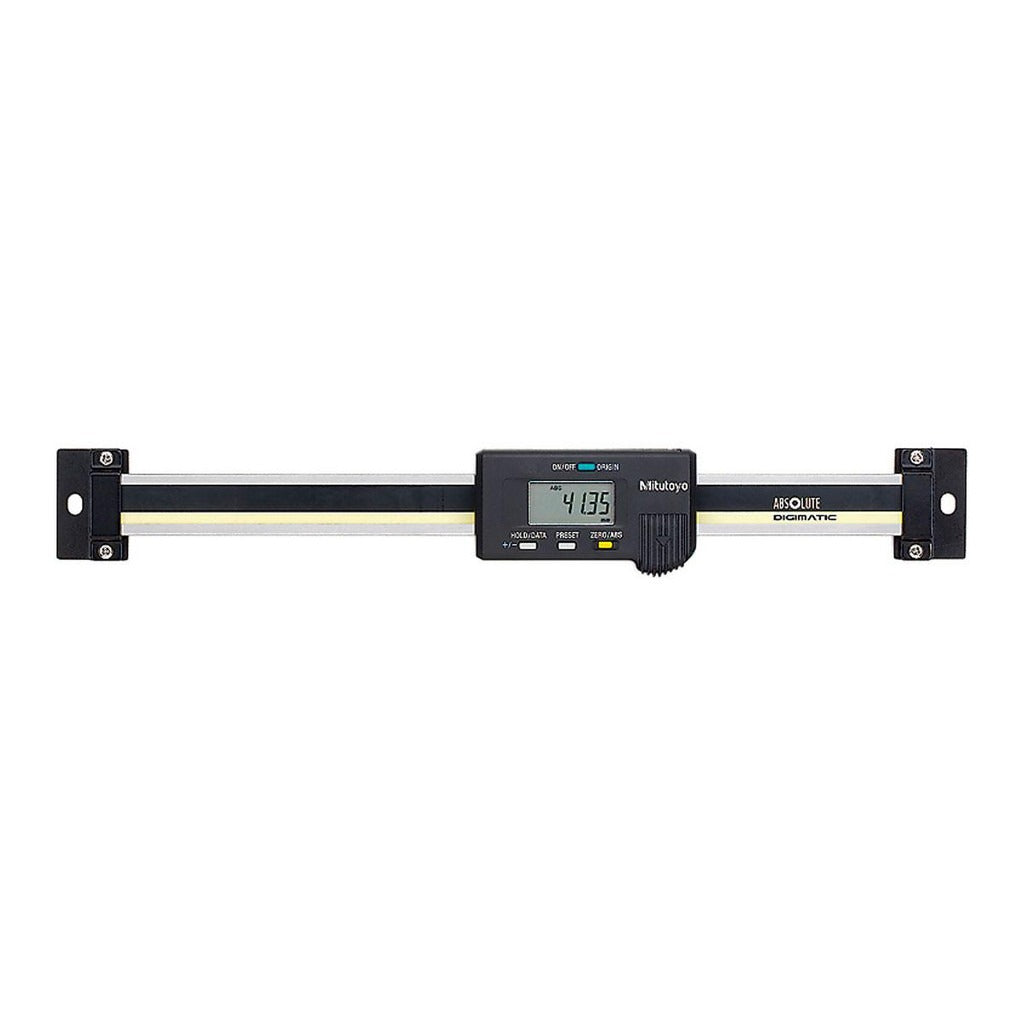

The MITUTOYO 572-614 is a horizontal electronic linear scale designed for precision measurement in shop and machine tool environments. It covers a measurement range of 0 to 6 inches with an accuracy of 0.001 inches and a resolution of 0.0005 inches, making it suitable for applications where tight tolerances are required. The scale features an LCD display and includes data output capability, allowing readings to be sent to a compatible data collection device or SPC system. It is powered by a single SR44 battery, which is included. Licensed technicians, machinists, and toolroom professionals are the primary installers and users of this instrument.

The 572-614 is well suited for use with jigs, small machine tools, and general toolroom setups where a horizontal scale orientation is required. The compact display and slim scale body allow integration into tight workspaces. The data output feature supports quality control workflows that require logged or transmitted measurement data. This scale is intended for bench-level and light production use rather than heavy industrial environments.

Key Features

• Measurement range of 0 to 6 inches with 0.001-inch accuracy
• Resolution of 0.0005 inches (0.01 mm) for fine measurement discrimination
• Data output capability for SPC and external data logging
• LCD display for clear, direct reading in shop conditions
• Horizontal scale orientation suited for jig and machine tool integration
• Battery-powered operation with one SR44 battery included

Compatibility

Designed for use with jigs, small machine tools, and similar toolroom applications where a horizontal electronic linear scale with data output is required.

Installation Notes

Installation is typically performed by machinists or toolroom technicians familiar with linear scale mounting. The scale should be mounted on a stable, vibration-minimized surface to maintain measurement accuracy. Ensure the mounting surface is clean and flat before securing the scale. Follow the manufacturer documentation for data output cable connections before powering the unit.
