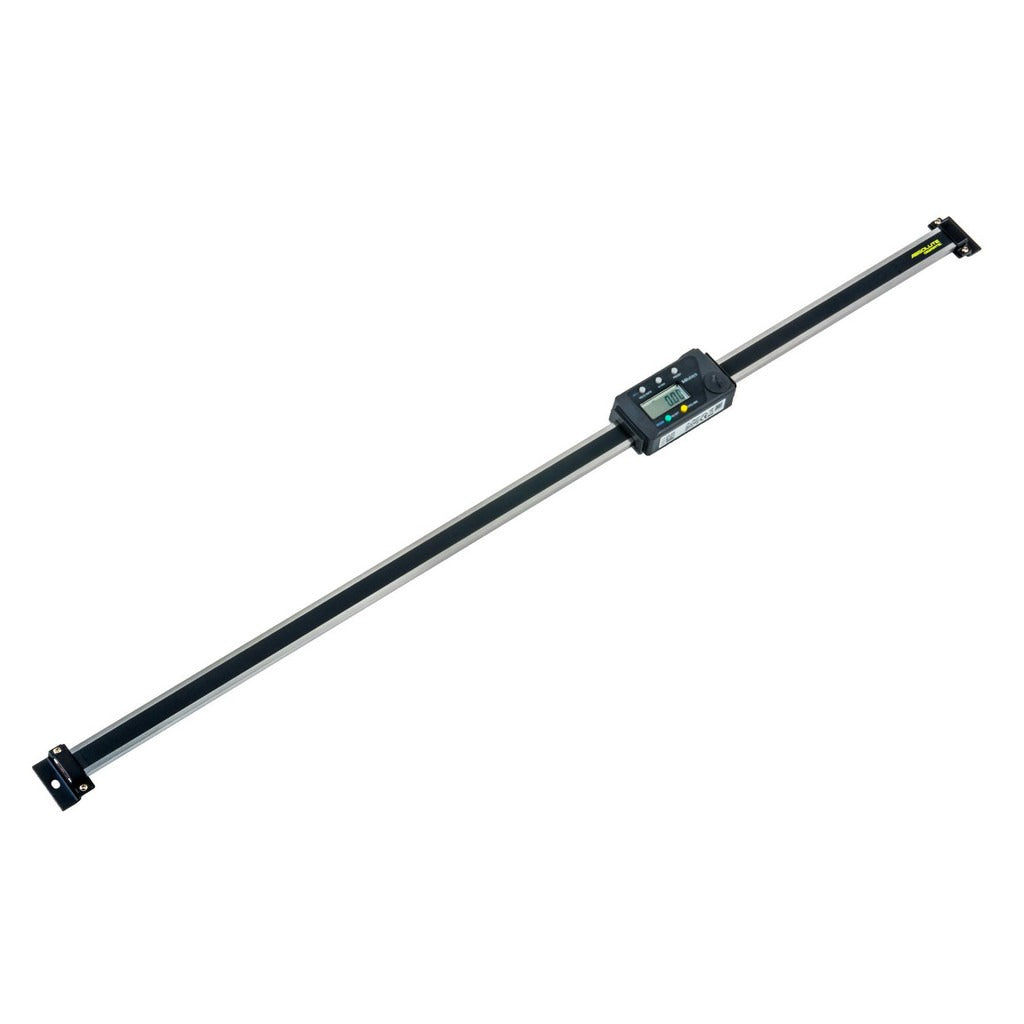

Mitutoyo 572-475 Electronic Linear Scale 0-24 in

Product Description

The MITUTOYO 572-475 is a horizontal electronic linear scale designed for precision measurement in machine shop and tooling environments. It covers a measurement range of 0 to 24 inches with a resolution of 0.0005 inches (0.01 mm) and an accuracy of 0.002 inches. The scale features an LCD display and provides data output for integration with compatible readout systems or data collection equipment. It is battery-powered, including one SR44 battery, and is suited for installation by machinists, toolmakers, and metrology technicians requiring reliable linear position feedback.

The 572-475 is intended for horizontal mounting applications including jigs, small machine tools, and general tooling setups. The scale length is 750 mm, with a compact display unit measuring 84 mm in length and 42 mm in width. The data output capability makes it practical for setups where digital readout or statistical process control integration is required. This scale is a fit for light industrial and precision shop applications where repeatable, high-resolution linear measurement is critical.

Key Features

• Measurement range of 0 to 24 inches for extended linear position coverage
• Resolution of 0.0005 inches (0.01 mm) for high-precision readings
• Accuracy rated at 0.002 inches
• Data output port for connection to digital readout systems or SPC equipment
• LCD display for clear, direct reading in the field
• Battery-powered operation using one SR44 battery — included

Compatibility

Designed for horizontal mounting on jigs, small machine tools, and general tooling fixtures requiring electronic linear position measurement.

Installation Notes

Installation is typically performed by a machinist or metrology technician. Power down any machine tool or fixture before mounting the scale to avoid interference or damage during alignment. Secure the scale body and read head according to the mounting hardware specifications for the target fixture. Verify data output connections before powering the unit to ensure signal integrity with any connected readout device.
