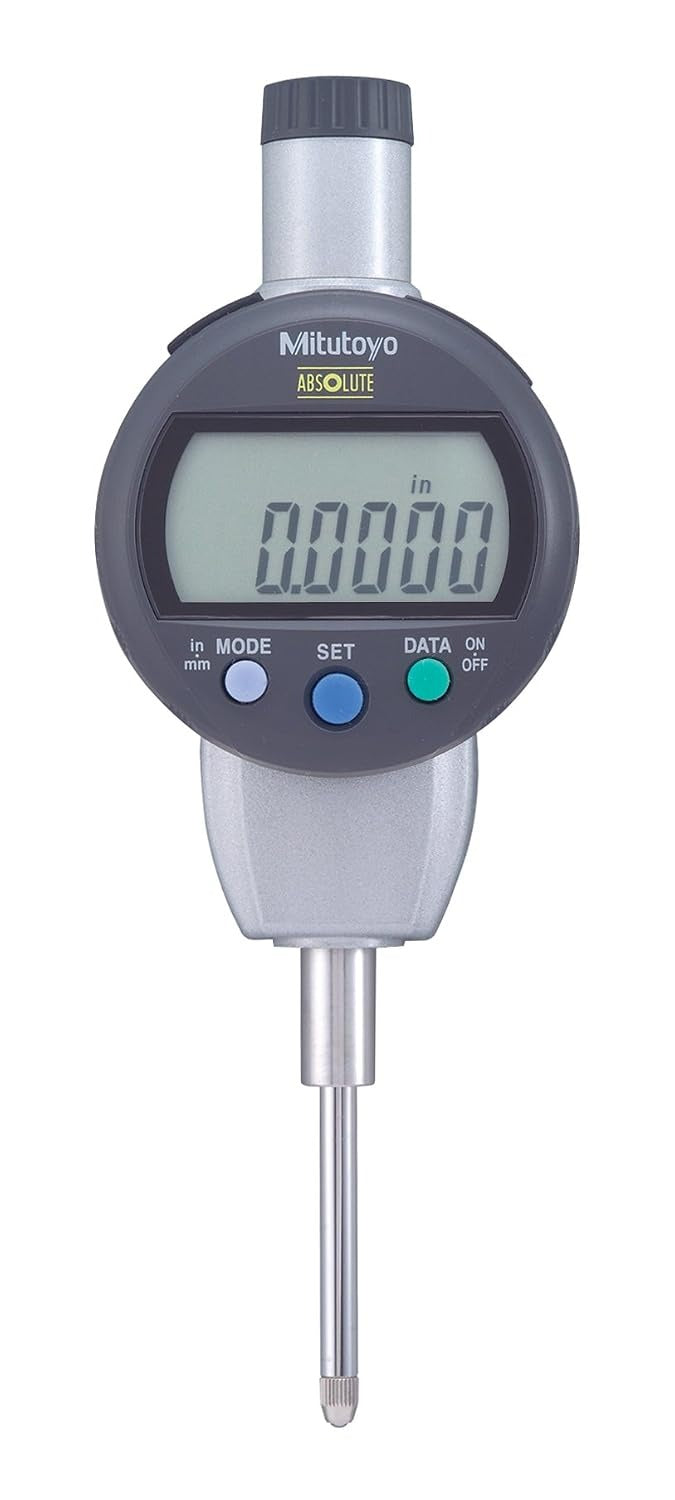

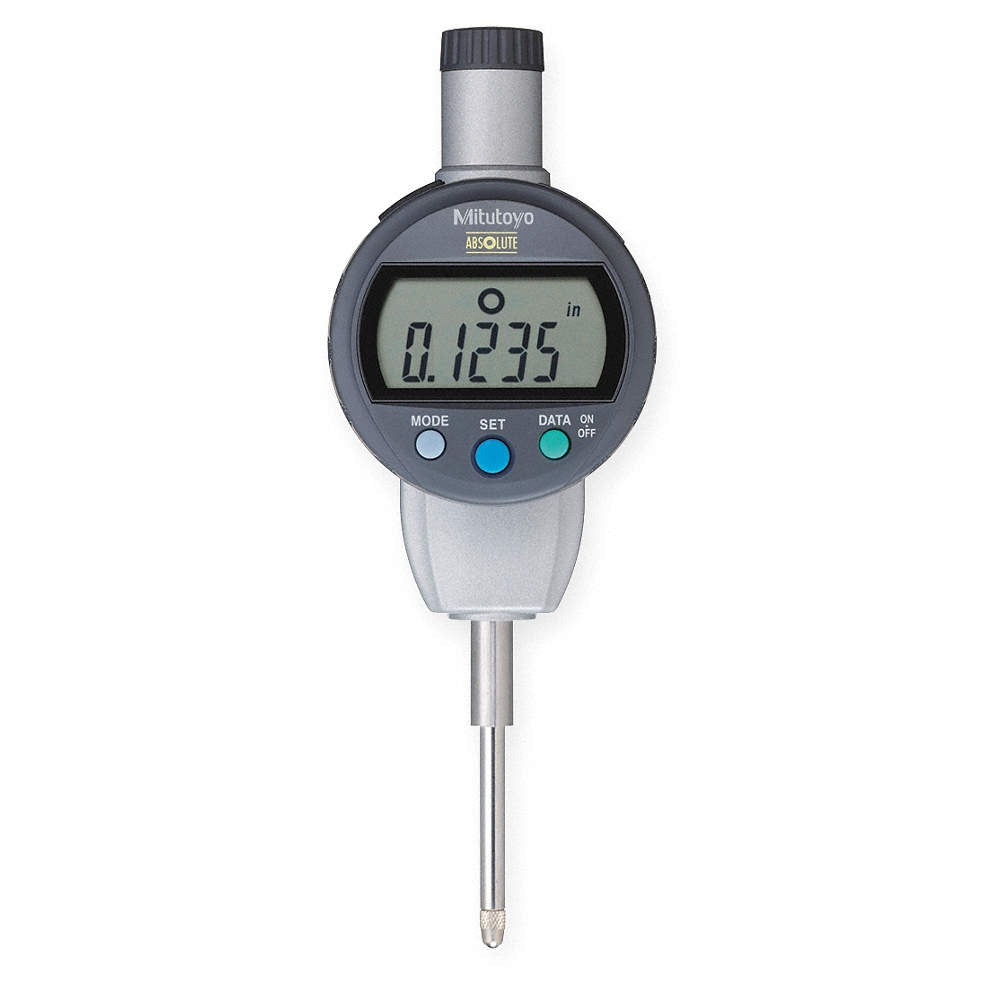

Mitutoyo 543-476B Absolute LCD Digimatic Indicator ID-C Standard Type (1 in)

Brand: MITUTOYO
SKU: 543-476B
Availability: In Stock

Ships same day if ordered by 12 pm
$576.10
$576.10
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Mitutoyo 543-476B is an absolute LCD Digimatic indicator (ID-C standard type) with a 0–1 in (0–25.4 mm) measuring range, 0.0005 in (0.01 mm) resolution and ±0.001 in accuracy. It features a 3/8 in (0.375 in) stem with #4-48 UNF thread, flat back stainless steel construction, LCD readout and SPC data output for measurement recording and process control.

  • Measuring range: 0–1 in (0–25.4 mm); resolution: 0.0005 in / 0.01 mm; accuracy: ±0.001 in
  • Absolute linear encoder for spindle absolute position at power on; SPC data output supported
  • 3/8 in (0.375 in) stem with #4-48 UNF thread, flat back stainless steel body, LCD display, battery SR44

Product Highlights

Digital indicator with absolute encoder, high resolution, SPC output, flat back mount and stainless steel construction for inspection and dimensional measurement tasks.

Product Information

Standard Information

  • Brand: MITUTOYO
  • Manufacturer Part Number: 543-476B
  • Country of Origin: Japan
Technical Specifications
Brand
Mitutoyo
MPN
543-476B
Model / Series
ID-C 543
Type
Absolute LCD Digimatic Indicator (ID-C), Standard Type
Measuring range
0–1 in (0–25.4 mm)
Resolution
0.0005 in / 0.01 mm
Accuracy
±0.001 in
Display type
6-digit LCD
Encoder type
ABSOLUTE electrostatic capacitance linear encoder
Data output
SPC data output
Stem diameter
3/8 in (0.375 in)
Stem thread
#4-48 UNF
Back type
Flat back
Material
Stainless steel
Measuring force
< 1.8 N
Battery type
SR44
Battery life
Approx. 5,000 hours
IP rating
IP42
Functions
Origin-set/Preset; Zero-set; GO/±NG judgment; Counting direction switching; inch/mm conversion; Internal calculation F(x)=Ax; Data output
Display/Dimension type
Inch / metric convertible
Country of origin
Japan
Compatible data output cable
Mitutoyo 905338
Standards
C0920; DIN40050 Part 1; IEC 60529; JIS D0207; ANSI/AGD type; RoHS compliant
