Mitutoyo 519-109-10 Indicator Stand Rectangular Base

Product Description

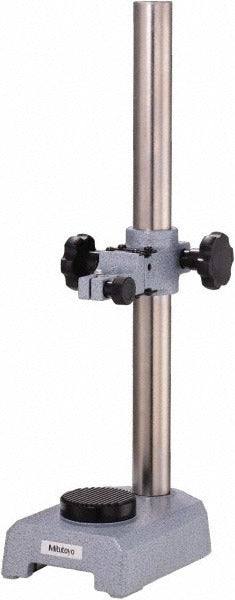

The MITUTOYO 519-109-10 is a hardened steel indicator stand designed for use with dial indicators and similar precision measuring instruments. Built on a rectangular base, this fixed-upright post stand provides a stable platform for holding gauges during inspection and measurement tasks on the shop floor or at a workbench. The post rises to an overall height of 430mm, giving technicians adequate vertical reach for a wide range of workpiece heights. A holder is included for mounting the indicator. The hardened steel construction resists wear and maintains rigidity under repeated use. A separate anvil with a 58mm diameter is also included.

This stand is suited for precision measurement applications in machining, metrology, and quality control environments. The rectangular base geometry and fixed upright post arm style make it a straightforward choice for surface plate work, fixture setups, and incoming inspection stations. The stand ships as a single unit and is intended for use by machinists, quality technicians, and metrologists who need a reliable, no-frills indicator holder for production or inspection use.

Key Features

• Hardened steel construction for rigidity and long service life
• Rectangular base provides stable four-point contact on flat surfaces
• Fixed upright post arm style with 430mm overall height
• 168mm base length and 45mm base height for low center of gravity stability
• Includes holder for dial indicator or similar gauge
• Includes 58mm diameter anvil

Compatibility

Designed as an OEM-style indicator stand compatible with standard dial indicators and gauges requiring a post-mount holder. No fine adjustment mechanism is included, making this stand best suited for fixed-position measurement setups.

Installation Notes

Place the stand on a clean, flat reference surface such as a surface plate or machine table before mounting any instrument. Secure the indicator in the included holder and verify the post and arm are locked firmly before taking measurements. No power source is required. Inspect the base seating surface periodically to ensure no debris is affecting stability or measurement accuracy.
