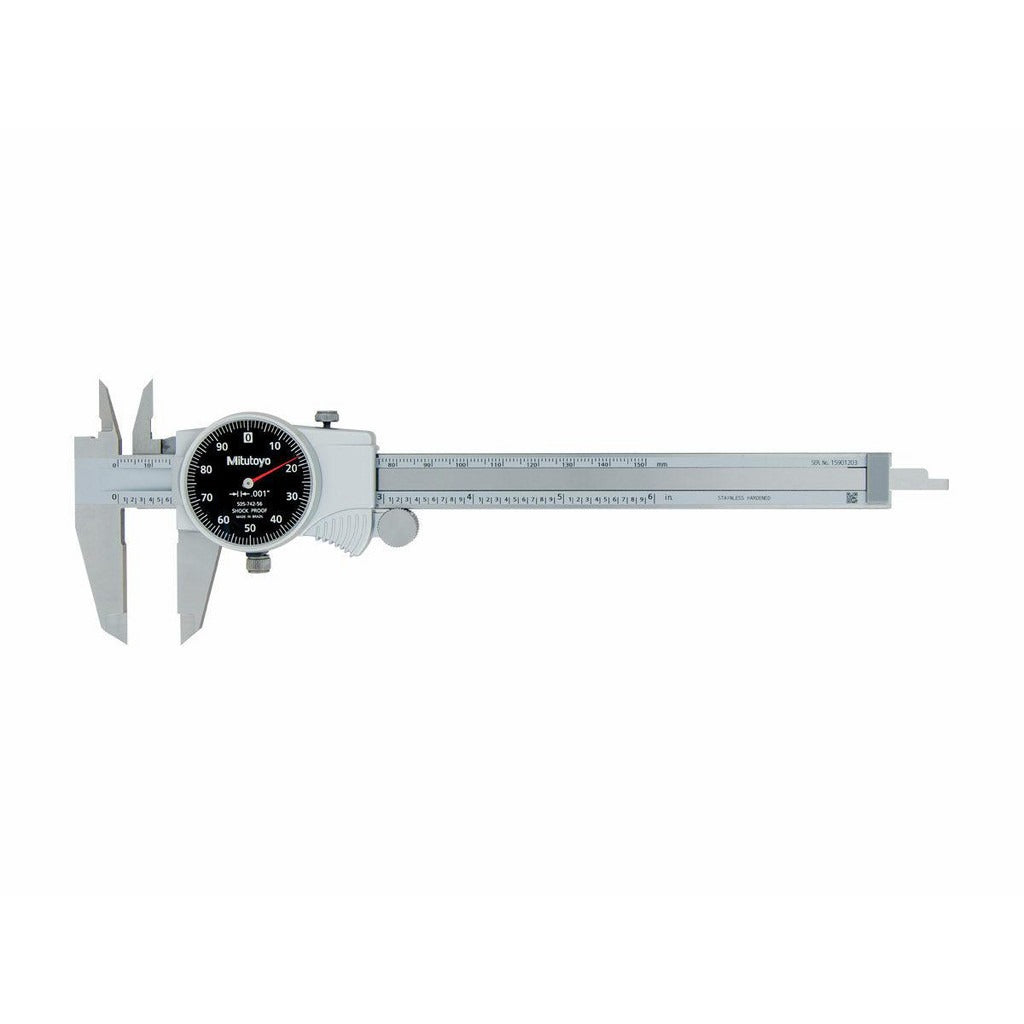

Mitutoyo 505-736 Dial Caliper 6 Inch Stainless Steel

Product Description

The MITUTOYO 505-736 is a 6-inch range dial caliper designed for precise dimensional measurement in shop, field, and inspection environments. It delivers 0.001-inch accuracy with a 0.001-inch dial graduation, making it suitable for outside, inside, depth, and step measurements in a single tool. The body and jaw material are stainless steel with a titanium nitride coating for corrosion resistance and extended service life. Carbide-tipped jaws hold up under repeated use on hard materials. The white dial face with gray case provides high contrast for quick, reliable readings. Calibration is traceable to a proprietary inspection standard.

The 505-736 is used across manufacturing, HVAC fabrication, plumbing, and general mechanical trades wherever tight dimensional tolerances must be verified. It is well suited for measuring pipe fittings, shaft diameters, bore depths, and component steps. The 1-9/16-inch jaw length accommodates a wide variety of workpiece geometries. Each unit ships in a fitted plastic protective case, making it appropriate for both bench use and field carry.

Key Features

• 6-inch maximum measurement range with 0.001-inch graduation and 0.001-inch accuracy
• Reads outside, inside, depth, and step dimensions without changing tools
• Stainless steel body with titanium nitride coating for durability and corrosion resistance
• Carbide-tipped jaws for wear resistance on hard workpiece surfaces
• White dial face on gray case for high-contrast readability
• Supplied in a fitted plastic case; proprietary inspection certified

Compatibility

Designed as a general-purpose dial caliper for trade and industrial measurement applications requiring 6-inch range and 0.001-inch resolution.

Installation Notes

No permanent installation is required. Zero the caliper on a clean, closed-jaw reference before use. Keep jaw faces clean and free of debris to maintain measurement accuracy. Store in the supplied fitted case when not in use to protect the dial mechanism and jaw surfaces.
