MITUTOYO Mitutoyo 500-166-30 Absolute Digimatic Caliper 0-12 inches/300mm
MITUTOYO Mitutoyo 500-166-30 Absolute Digimatic Caliper 0-12 inches/300mm

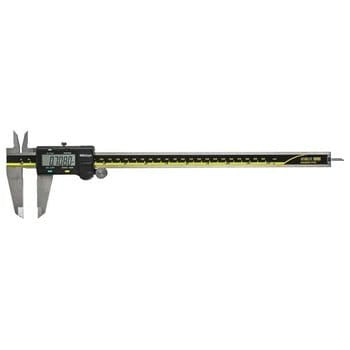

Mitutoyo 500-166-30 Absolute Digimatic Caliper 0-12 inches/300mm

Brand: MITUTOYO
SKU: 500-166-30
Availability: In Stock

Ships same day if ordered by 12 pm
$948.83
$948.83
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Mitutoyo 500-166-30 is an Absolute Digimatic caliper that measures outside, inside, depth and step dimensions across a 0-12"/300 mm range with 0.0005"/0.01 mm resolution and +/-0.0015" accuracy. It uses Mitutoyo AOS absolute encoder technology to retain the origin point at power-up and features carbide-tipped jaws, a large LCD, thumb roller, and is supplied in a fitted plastic case.

  • Measurement range 0-12"/300 mm with 0.0005"/0.01 mm resolution and +/-0.0015" accuracy
  • ABS/AOS absolute encoder technology (no origin reset) with unlimited max response speed and large LCD
  • Hardened stainless steel construction with carbide-tipped OD/ID jaws, thumb roller, SR44 battery (1) and fitted plastic case

Product Highlights

Absolute AOS encoder; 0-12"/300 mm range; 0.0005"/0.01 mm resolution; carbide-tipped jaws; SR44 battery

Product Information

Standard Information

  • Brand: MITUTOYO
  • Manufacturer Part Number: 500-166-30
Technical Specifications
Brand
Mitutoyo
Model / MPN
500-166-30
Product Code
500-166-30
Series
500
Range
0-12" / 0-300 mm
Resolution
0.0005" / 0.01 mm
Repeatability
0.0005" / 0.01 mm
Accuracy
+/- 0.0015" / +/- 0.03 mm
Jaws
Carbide-tipped outside and inside (OD/ID) jaws
Construction / Material
Hardened stainless steel slide and jaws
Encoder Type
AOS Absolute encoder (absolute linear encoder technology)
Sensor Technology
AOS (Advanced Onsite Sensor) / Absolute encoder
Max Response Speed
Unlimited (as specified by manufacturer for AOS absolute encoder)
Display
Large LCD (9.0 mm character height)
Battery
SR44 (1 pc.), part 938882
Battery Life
Approx. 5 years under normal use
SPC Output / Data Output
No (model does not include data output port)
Functions
Origin set, zero-setting, inch/mm conversion, alarm functions (low voltage; counting value composition error)
Thumb Roller
Yes
Packaging / Included
Supplied in a fitted plastic case
