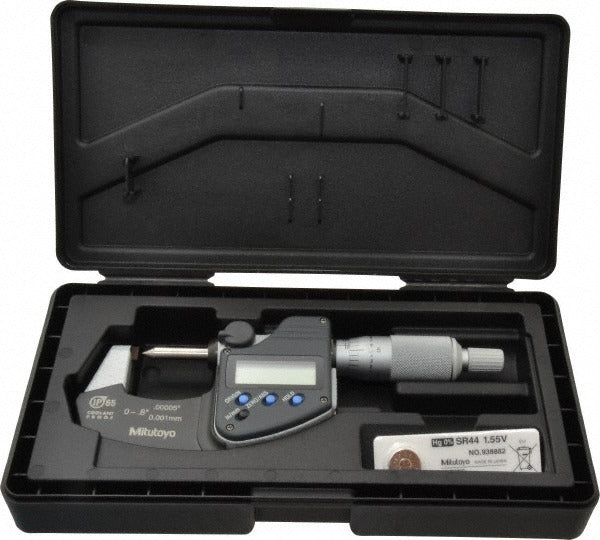

Mitutoyo 342-371-30 Electronic Crimp Height Micrometer

Product Description

The MITUTOYO 342-371-30 is an electronic crimp height micrometer designed for precision measurement of crimped terminal heights and similar small-dimension inspection tasks. It covers a measurement range of 0 to 0.8 inches with a resolution of 0.0001 inch and an accuracy of 0.000150 inch, making it suitable for quality control work where tight tolerances matter. The ratchet stop thimble delivers consistent measuring force to reduce operator-to-operator variation. A single SR44 battery is included. This instrument is used by electrical technicians, quality inspectors, and assembly professionals who need reliable, repeatable crimp measurements.

This micrometer is suited for bench-side inspection of wire crimp terminals in electrical panel assembly, harness fabrication, and connector quality verification. It is appropriate for both production floor and laboratory environments where traceability is required. The TUV traceability certification makes it a practical choice for shops that must document measurement tool calibration. The electronic readout eliminates interpolation error common with vernier-style instruments, supporting faster and more consistent inspection workflows.

Key Features

• Electronic digital readout with 0.0001 inch resolution and 0.001 mm resolution
• Measurement range of 0 to 0.8 inches for crimp height inspection
• Accuracy of 0.000150 inch for high-precision quality control
• Ratchet stop thimble provides repeatable, consistent measuring force
• IP65 ingress protection rating resists dust and coolant splash
• TUV traceability certification included for calibration documentation
• SR44 battery included; no data output port required for standard bench use

Compatibility

Designed as a direct-use electronic crimp height micrometer for inspection of crimped terminals and connectors in electrical assembly and quality control applications.

Installation Notes

This is a precision measuring instrument, not an installed component. Handle with care to avoid dropping or impacting the spindle and anvil faces. Store in the included box when not in use to protect calibrated surfaces. Verify zero reference before each measurement session per standard metrology practice.
