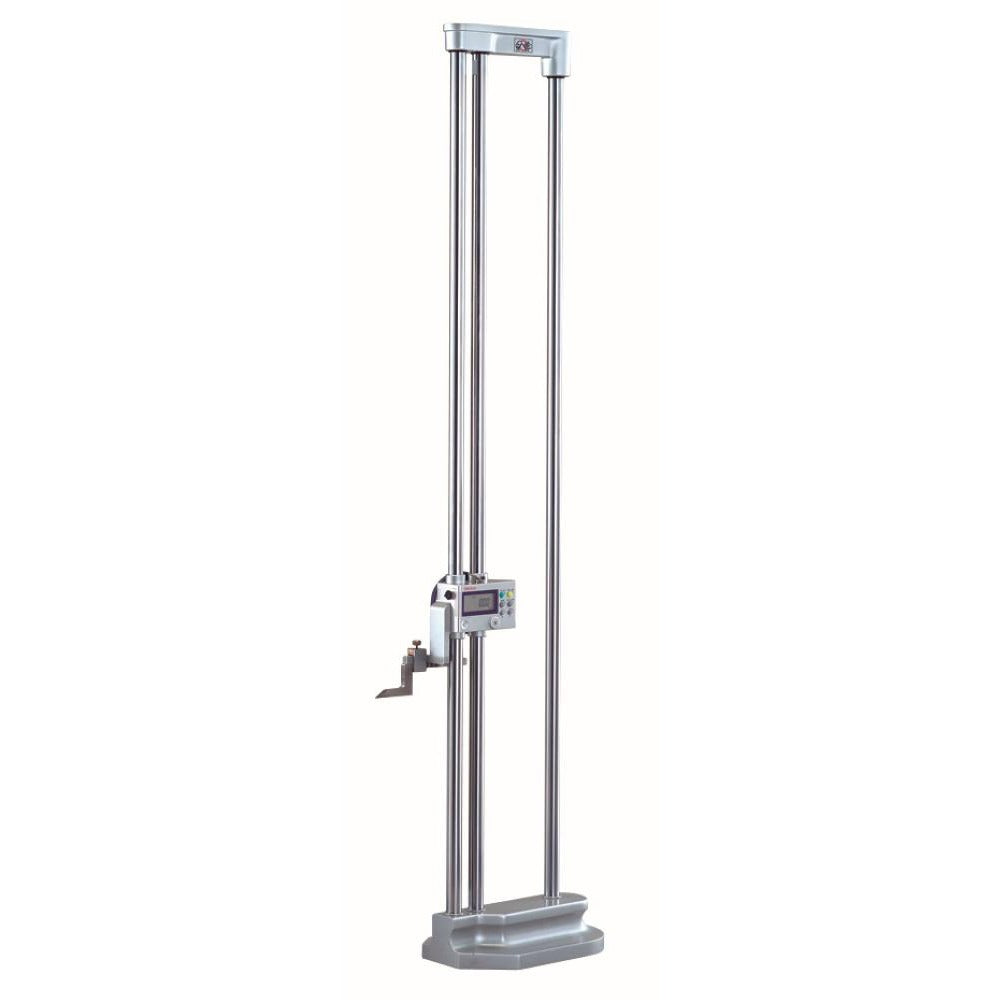

Mitutoyo 192-673-10 Electronic Height Gage 40 in

Product Description

The MITUTOYO 192-673-10 is a large-range electronic height gage designed for precision layout and measurement work on surface plates and granite tables. It measures up to 40 inches (1000 mm) with an accuracy of 0.0025 inches (0.060 mm) and offers selectable resolution of 0.0005 inches or 0.001 inches depending on the measurement mode. A large LCD displays readings clearly, and Inch/mm conversion lets the technician switch units without recalculating. This instrument is used by machinists, tool-and-die makers, and quality-control professionals who require reliable, repeatable height measurement in shop or inspection environments. A scriber is included for layout work.

The 192-673-10 is suited for dimensional inspection and layout tasks in precision manufacturing, machine shops, and quality labs. Its coarse and fine feeding switch allows controlled stylus positioning across the full 40-inch travel range. The inclined slider handle and large function buttons improve ergonomics during extended use sessions. The unit supports data output for connection to SPC data collection systems, making it practical for process documentation and traceability requirements in controlled inspection environments.

Key Features

• 40-inch (1000 mm) maximum measurement range
• 0.0025-inch (0.060 mm) accuracy across full range
• Selectable resolution: 0.0005 inches or 0.001 inches
• Large LCD with Inch/mm conversion and ABS/INC switching
• Data output port for SPC or external data collection
• Coarse/fine feeding switch and inclined slider handle for ergonomic control
• Includes scriber; powered by one SR44 battery (included)

Compatibility

Designed for use on standard surface plates and granite tables common to precision inspection and layout applications in machine shop and quality-control environments.

Installation Notes

Setup and calibration of this instrument should be performed by a qualified metrologist or precision measurement technician. Before use, ensure the surface plate is level and clean, and allow the gage and workpiece to thermally stabilize in the inspection environment. Do not force the slider mechanism; use the coarse and fine feeding controls to position the scriber accurately. Battery replacement requires an SR44 cell and should be performed according to the manufacturer documentation to avoid data loss.
