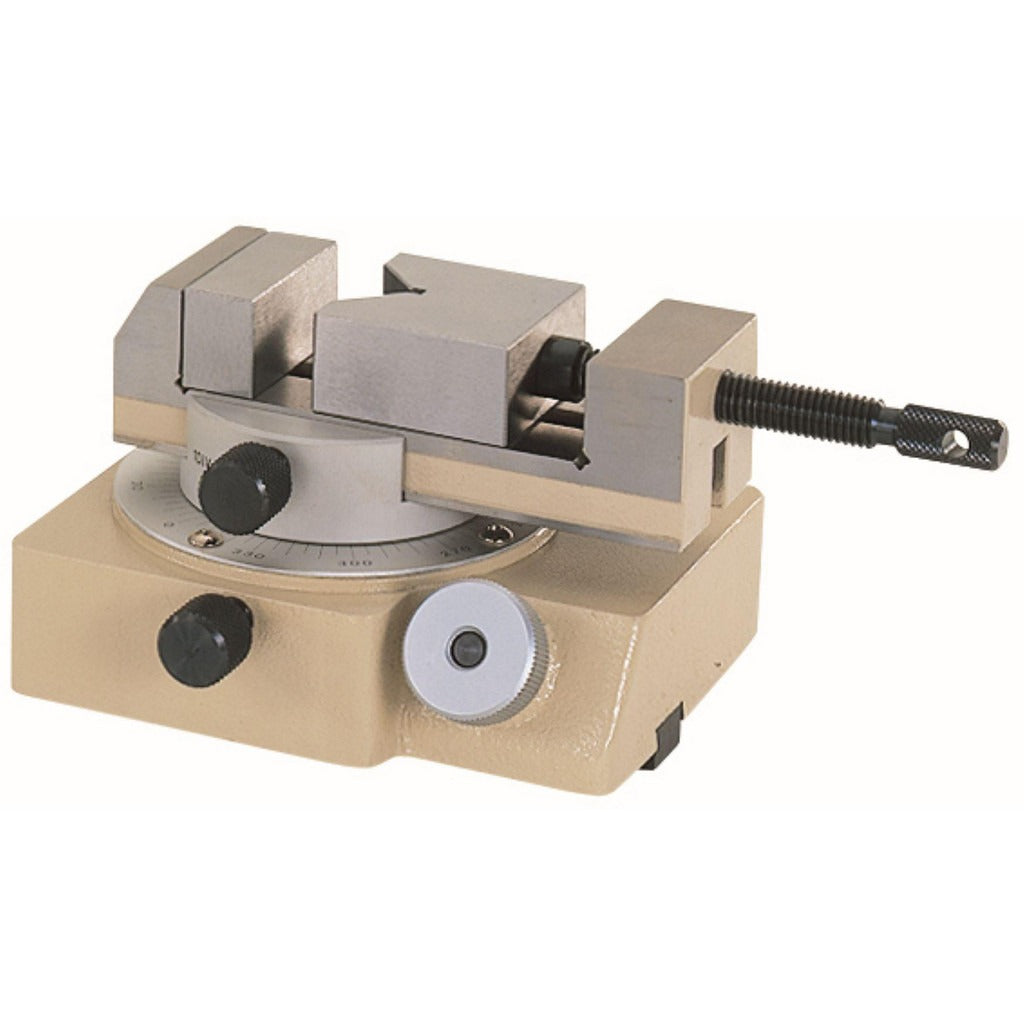

Mitutoyo 172-602 Horizontal Rotary Vise Accessory

Product Description

The MITUTOYO 172-602 is a horizontal rotary vise designed as an accessory for optical and contour measuring equipment. It mounts workpieces in a horizontal orientation and allows rotational positioning with 5-degree angle reading increments, supporting repeatable setups during inspection and measurement. Maximum workpiece height is 60 mm. The vise is used by metrology technicians, quality control inspectors, and precision measurement professionals who need consistent workpiece positioning during profile projection or contour measurement operations. The unit ships as a single piece with a package quantity of one.

This rotary vise is intended for use with MITUTOYO profile projectors and contour measuring instruments in laboratory, inspection room, and quality assurance environments. Its horizontal orientation suits applications where workpieces must be held level and rotated to specific angular positions without repositioning the measuring instrument itself. The 5-degree angle reading capability supports repeatable angular indexing across multiple measurement passes.

Key Features

• Horizontal orientation for level workpiece positioning during measurement
• 5-degree angle reading increments for repeatable angular indexing
• 60 mm maximum workpiece height capacity
• Designed specifically for use with MITUTOYO profile projectors and contour measuring instruments
• Single-unit package quantity suitable for individual instrument accessory replacement

Compatibility

Designed for use with MITUTOYO Model Number PH-A14 and PH-3515F Profile Projectors and MITUTOYO Model Number CV-1000 and CV-2000 Contour Measuring Instruments.

Installation Notes

Installation is performed by metrology technicians or quality assurance personnel familiar with MITUTOYO measuring equipment. Power down or disengage the measuring instrument before mounting or adjusting the vise accessory. Consult the instrument's operator manual for proper vise mounting procedures and stage loading limits. Do not exceed the 60 mm maximum workpiece height to avoid interference with the optical or measurement path.
