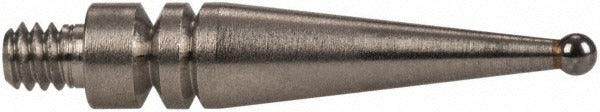

Mitutoyo 136076 Ball Contact Point 0.59 Inch Steel

Product Description

The MITUTOYO 136076 is a ball-style contact point designed as a replacement tip for dial test indicators. It features a 1.00 mm ball diameter and is machined from steel for consistent deflection response and long service life. This contact point threads into the spindle of compatible dial test indicators, transmitting surface variation to the indicator mechanism. Metrology technicians, machinists, and quality control personnel install this type of contact point when setting up workpiece inspection routines on surface plates, V-blocks, and fixture plates.

The 136076 is intended for use with Mitutoyo 513 Series dial test indicators. It is suited for precision measurement tasks in machine shops, tool rooms, and inspection departments where a small-diameter ball tip is required to contact curved surfaces, bores, or contoured workpieces. The 0.59 inch contact point length provides adequate clearance for most standard indicator setups.

Key Features

• Ball diameter of 1.00 mm for precise contact on curved and contoured surfaces
• Contact point length of 0.59 inches to suit standard dial test indicator setups
• Steel construction for durability and consistent wear characteristics
• Direct replacement contact point for Mitutoyo 513 Series indicators
• Sold individually for single-point replacement without purchasing a full set

Compatibility

Designed for use with Mitutoyo 513 Series Dial Test Indicators as stated by the manufacturer.

Installation Notes

Installation is performed by machinists or metrology technicians familiar with dial test indicator maintenance. Power down or disengage any automated fixtures before servicing the indicator. The contact point threads into the indicator spindle — use the appropriate contact point wrench to avoid damaging the spindle threads or the ball tip. Handle the ball contact surface with care to avoid nicks or contamination that could affect measurement accuracy.
