Mitutoyo 101190 Conical Contact Point Agd Dial Indicator

Product Description

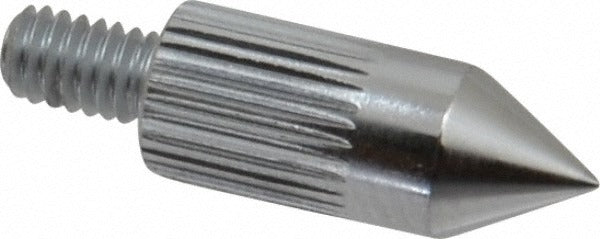

The MITUTOYO 101190 is a conical contact point designed for use with dial indicators in precision measurement applications. Featuring a 60-degree conical tip geometry machined from solid carbide, this contact point provides consistent, repeatable contact in tight-tolerance inspection work. The tip measures 0.2 inches in diameter with a contact point length of 0.5 inches and uses a 4-48 threaded shank for secure mounting. It is suited for metrology professionals, quality control technicians, and machine shop inspectors who require reliable stylus performance with AGD-style dial gages.

This contact point is intended for use with AGD Group 1, 2, 3, and 4 dial indicators, making it a versatile replacement or spare for a range of standard dial gage setups. Typical applications include surface inspection, bore measurement setups, and fixture-based gauging in both production and toolroom environments. The solid carbide construction resists wear during high-cycle inspection routines, maintaining measurement accuracy over extended service life.

Key Features

• 60-degree conical point geometry for precise contact in restricted-access measurement locations
• Solid carbide construction for wear resistance in repetitive inspection cycles
• 0.2 inch tip diameter provides a defined, consistent contact area
• 0.5 inch contact point length suits standard AGD dial indicator reach requirements
• 4-48 threaded shank for direct installation into AGD-compatible dial indicators
• Compatible with AGD Group 1, 2, 3, and 4 dial gages

Compatibility

Designed for use with AGD Group 1, 2, 3, and 4 dial indicators. Dial gages are suitable for mounting with this contact point installed.
