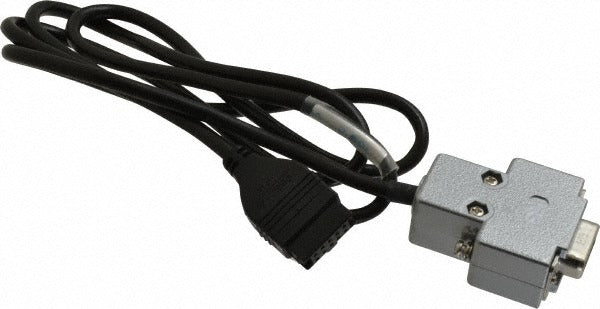

Mitutoyo 09EAA084 RS-232C Data Collection Cable

Product Description

The MITUTOYO 09EAA084 is an RS-232C serial data cable designed for remote data collection in precision measurement applications. It connects compatible Mitutoyo measurement instruments to the DP-1VR Data Processor, enabling real-time output of measurement data to a data processing unit. At 1 meter in overall length and weighing approximately 0.5 pounds, this cable is built for close-proximity bench or workstation setups. Metrology technicians and quality control professionals install this accessory to complete a wired data transfer chain between gauging equipment and downstream processors or recording systems.

This cable is intended for use in precision measurement and quality assurance environments where accurate, repeatable data output is critical. It suits applications in manufacturing inspection stations, calibration labs, and dimensional metrology setups. The RS-232C interface is a standard serial communication protocol widely used with Mitutoyo measurement instruments, making this cable a straightforward accessory for integrating the DP-1VR Data Processor into an existing measurement workflow.

Key Features

• RS-232C serial interface for reliable data transmission from measurement instruments
• 1 meter length suitable for close-range bench and workstation installations
• Designed specifically for use with the Mitutoyo DP-1VR Data Processor
• Lightweight at approximately 0.5 pounds for easy routing and handling
• Enables remote data collection without manual transcription of measurement values

Compatibility

Designed for use with the Mitutoyo DP-1VR Data Processor as a dedicated RS-232C data collection accessory.

Installation Notes

This cable is installed by metrology technicians or quality control personnel and requires no special tools for connection. Power down or disable data output on both the measurement instrument and the DP-1VR Data Processor before connecting or disconnecting the cable to avoid data errors or port damage. Ensure RS-232C ports are free of debris and that connectors are fully seated before resuming data collection operations.
