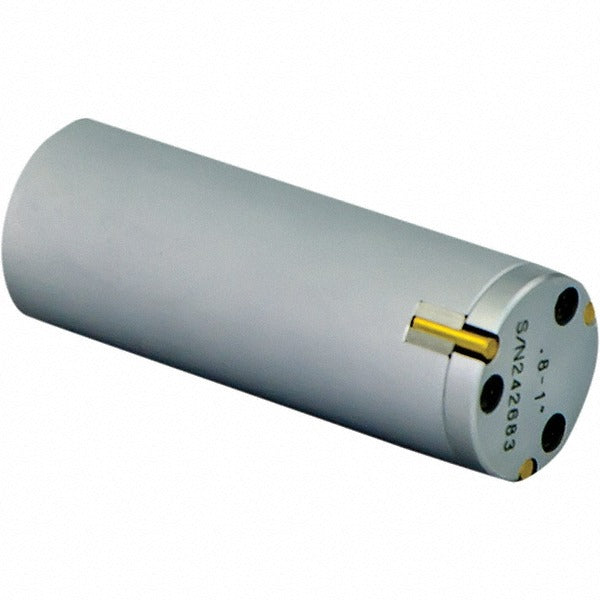

Mitutoyo 04AZA730 Electronic Micrometer Head

Product Description

The MITUTOYO 04AZA730 is an electronic micrometer head designed for precision measurement applications in metrology, machining, and quality control environments. The measuring face is constructed from steel, providing durability and resistance to wear under repeated use. This type of micrometer head is typically integrated into fixtures, measuring stages, or custom gauging setups where repeatable linear displacement readings are required. Installation and calibration are performed by metrologists, toolroom machinists, or quality technicians working with precision measurement equipment.

Electronic micrometer heads in this class are used in both production and laboratory settings where digital readout of spindle position is preferred over analog thimble reading. They are commonly incorporated into custom gauging fixtures, measuring benches, or automated inspection equipment. The steel measuring face is suited for contact measurement against metal workpieces and similar hard surfaces in industrial inspection environments.

Key Features

• Steel measuring face for durability and wear resistance under repeated contact measurement
• Electronic readout provides digital displacement values for reduced operator interpretation error
• Compact and lightweight at 0.2 pounds, suitable for integration into tight fixture assemblies
• No clamp nut included, allowing flexibility in mounting configuration selection
• Sold individually with a minimum order quantity of one unit

Compatibility

Designed as an OEM-style electronic micrometer head for integration into precision gauging fixtures and measuring equipment requiring a steel-face spindle contact point.

Installation Notes

Installation is performed by qualified metrologists or toolroom technicians familiar with precision measurement equipment. Ensure all powered measurement systems or associated fixtures are de-energized before mounting or removing the micrometer head. Handle the measuring face and spindle with care to avoid surface damage that could affect measurement accuracy. Consult the applicable equipment documentation for mounting bore tolerances and clamping specifications before installation.
