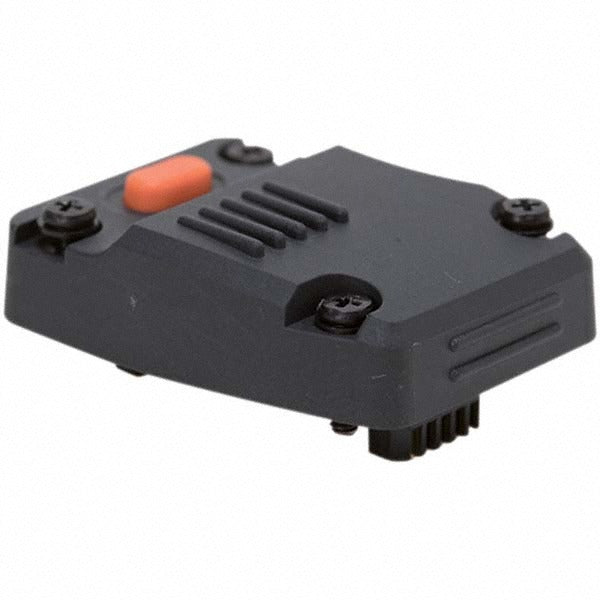

Mitutoyo 02AZF310 Spc Transmitter Connection

Product Description

The MITUTOYO 02AZF310 is an SPC (Statistical Process Control) transmitter connection accessory designed to link compatible measuring instruments to SPC data collection systems. It provides a hardwired interface that transfers real-time measurement data from calipers and micrometers to external devices such as data loggers, computers, or SPC software. This connection accessory is used in precision measurement environments where dimensional data capture is required for quality control or process monitoring. Installation is typically performed by metrology technicians or quality control personnel.

This accessory is suited for use in shop floor and laboratory environments where sealed or coolant-resistant measuring tools are deployed. It is designed for use with IP67-rated calipers and coolant proof IP65 micrometers, making it applicable in wet or contaminated machining environments where fluid exposure is a concern. The compact form factor allows for straightforward cable management in tight workspaces.

Key Features

• Provides SPC data output connection for IP67 calipers and coolant proof IP65 micrometers
• Enables real-time measurement data transfer to SPC-compatible data collection systems
• Compact size suitable for bench-top and floor-level measurement stations
• Sold as a single-unit package

Compatibility

Designed for use with IP67 calipers and standard calipers, as well as coolant proof IP65 micrometers, as specified by the manufacturer.

Installation Notes

This accessory is installed by metrology or quality control technicians familiar with SPC data systems. Ensure the measuring instrument is powered down or set to standby before connecting or disconnecting the transmitter cable. Handle the connector carefully to avoid damage to the data pins. Consult the instrument and SPC system documentation for proper cable routing and data configuration.
