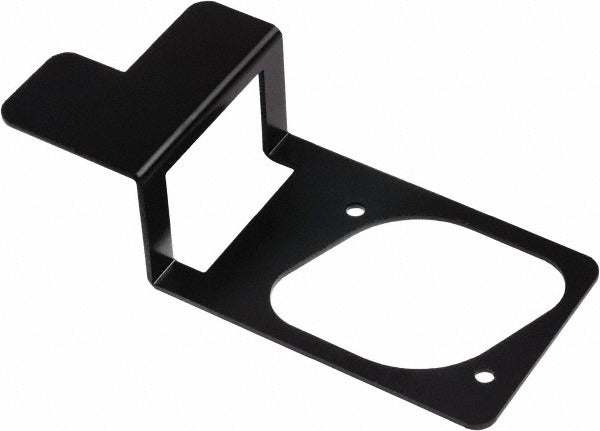

Mitutoyo 02AZE200 Spc Installation Bracket Kit

Product Description

The MITUTOYO 02AZE200 is an SPC installation bracket kit designed to support the mounting and integration of Statistical Process Control data output accessories on precision measurement tools. This kit provides the hardware needed to properly secure SPC cables and connectors to measuring instruments, enabling reliable data transmission from the tool to external data collection systems. It is intended for use by metrology technicians, quality control professionals, and precision measurement specialists working in industrial, manufacturing, or calibration environments. The kit ships as a single package and is a direct accessory from Mitutoyo.

This bracket kit is designed for use with Mitutoyo calipers, indicators, and micrometers that support SPC data output. It is commonly installed in quality assurance environments where dimensional measurement data must be logged continuously or transmitted to a computer interface for process monitoring. The kit provides the mechanical mounting solution that keeps SPC connections stable during repeated measurement cycles, reducing connector wear and ensuring consistent signal integrity.

Key Features

• Supports SPC cable and connector mounting on compatible measuring instruments
• Compatible accessory type: installation and bracket kit
• Designed for use with calipers, indicators, and micrometers
• Lightweight construction at 0.1 pounds
• Single package quantity for straightforward procurement

Compatibility

Designed for use with Mitutoyo calipers, indicators, and micrometers that support SPC data output connections.

Installation Notes

Installation should be performed by a qualified metrology technician or quality control specialist familiar with Mitutoyo SPC accessory mounting procedures. Power down or disconnect any active data collection interface before attaching or removing SPC connectors. Follow the instrument manufacturer's mounting guidelines to avoid stress on the measurement tool body or data port. No special trade licensing is typically required, but familiarity with precision instrument handling is essential.
