Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 3-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 9K+15K+15K

Description

This comprehensive HVAC bundle includes everything you need for an efficient and effective multi-zone heating and cooling system. Featuring Mitsubishi Electric's advanced technology, this bundle combines a powerful outdoor heat pump with multiple indoor air handlers, ensuring optimal comfort across various spaces. The included branch box facilitates seamless connections and balanced refrigerant flow, making it perfect for both residential and commercial applications. With a focus on energy efficiency and smart features, this bundle is designed to enhance indoor air quality while providing customizable climate control.

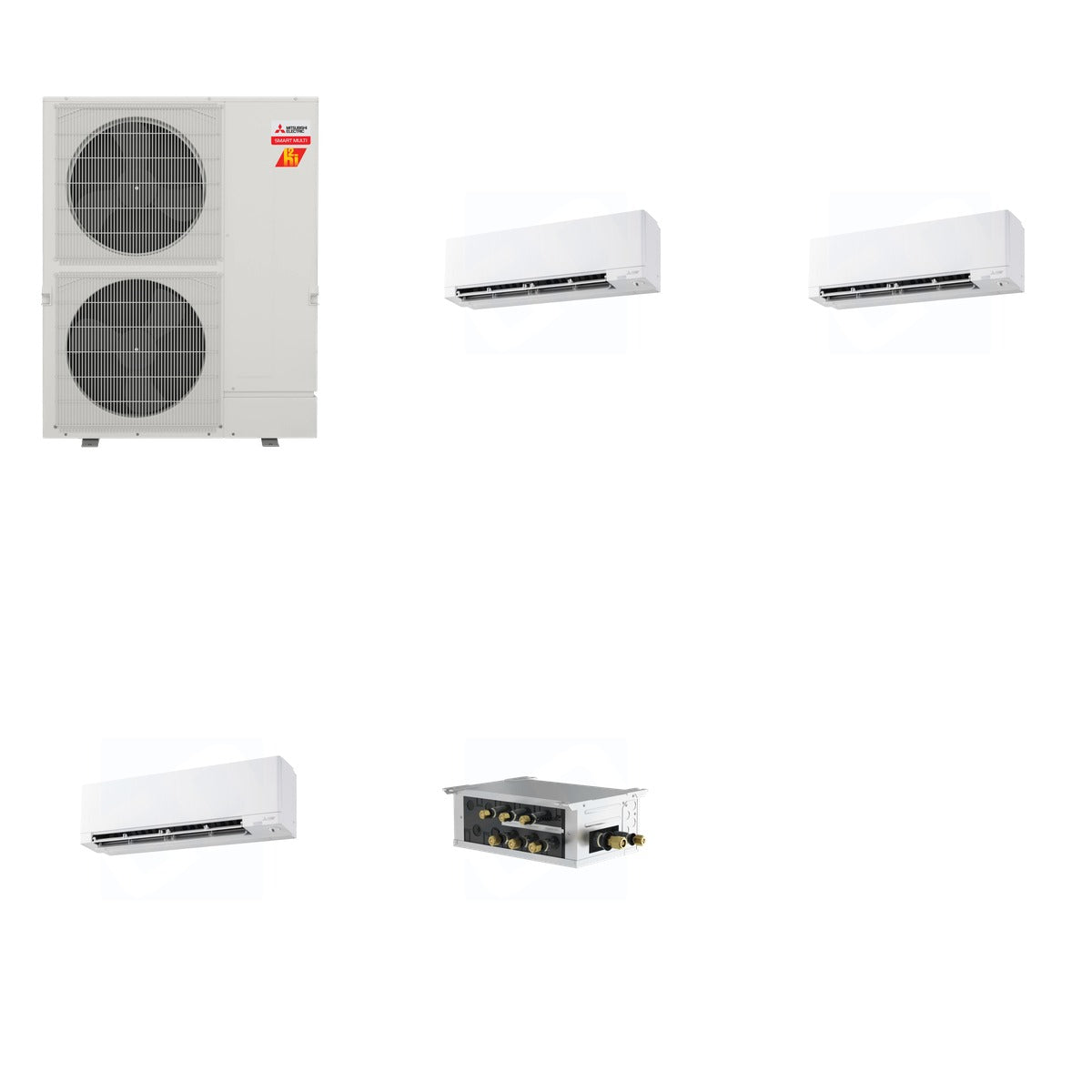

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX15NL - Mitsubishi Electric MSZ-FX15NL FX-Series Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 339.2 lb (Mitsubishi 225 lb + Mitsubishi 36.4 lb + Mitsubishi 72.8 lb + Mitsubishi 5 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Indoor Unit Cooling: 9,000 BTU (MSZ-FX09NL), 15,000 BTU (MSZ-FX15NL)
• SEER2 Rating: Up to 23 (MXZ-SM60NL)
• Voltage: 208/230V
• Sound Level: As low as 20 dB(A) (MSZ-FX09NL)
• Dimensions: 41-11/32" W x 13" D x 52-11/16" H (MXZ-SM60NL)
• Weight: 36.4 lbs (MSZ-FX09NL and MSZ-FX15NL)
• Refrigerant: R-454B
• Branch Box Dimensions: 17-3/4" W x 11-1/16" D x 6-3/4" H

Use & Compatibility

This bundle is ideal for both residential and commercial environments, providing efficient heating and cooling for multiple zones. The outdoor unit is compatible with M-Series, P-Series, and CITY MULTI indoor units, while the branch box allows for easy connection of up to three indoor units, ensuring balanced refrigerant distribution and optimal temperature control.
