Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 4-Zone Wall-Mounted Mini Split Heat Pump System - 9K+12K+15K+15K

Description

This comprehensive HVAC bundle is designed for optimal heating and cooling efficiency in multi-zone environments. Featuring the Mitsubishi Electric MXZ-SM48NL outdoor heat pump unit, this bundle supports up to eight indoor zones, making it ideal for residential and commercial applications. Paired with three advanced wall-mounted air handlers (MSZ-GX09NL, MSZ-GX12NL, and MSZ-GX15NL), this setup ensures quiet operation, advanced filtration, and smart connectivity. The included PAC-LMA50BC branch box facilitates seamless refrigerant flow management, enhancing system performance and comfort.

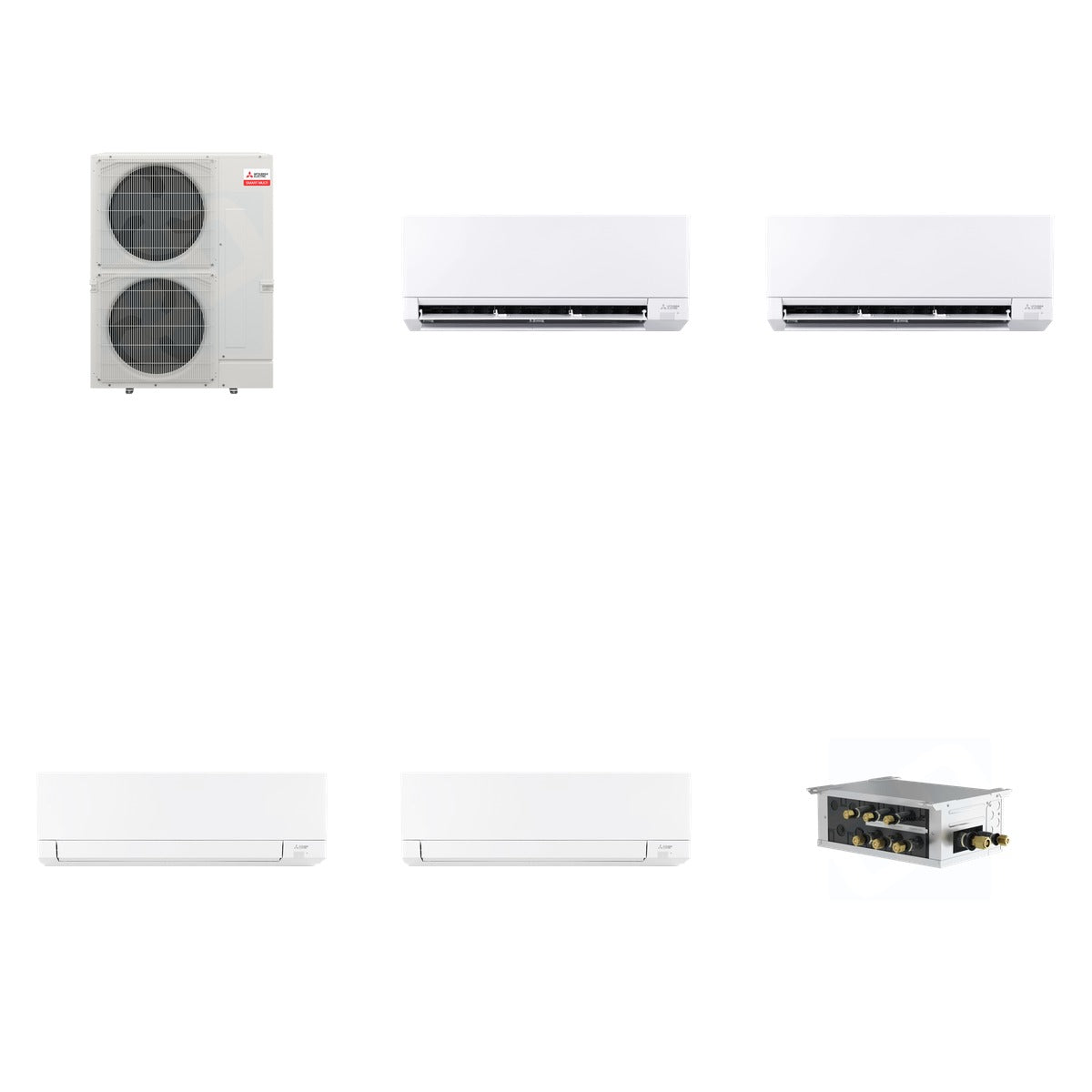

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX09NL - Mitsubishi Electric MSZ-GX09NL R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX12NL - Mitsubishi Electric MSZ-GX12NL R454B 12k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX15NL - Mitsubishi Electric MSZ-GX15NL R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 320 lb (Mitsubishi 225 lb + Mitsubishi 22 lb + Mitsubishi 22 lb + Mitsubishi 44 lb + Mitsubishi 7 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, cooling capacity up to 42,000 BTU, heating capacity up to 48,000 BTU, SEER2 up to 21.50, dimensions 41-11/32" W x 13" D x 52-11/16" H
• MSZ-GX09NL: 9,000 BTU, R454B refrigerant, cooling capacity 9,000 BTU, heating capacity 10,900 BTU, SEER2 up to 28.4, minimum sound level 19 dB
• MSZ-GX12NL: 12,000 BTU, R454B refrigerant, cooling capacity 12,000 BTU, heating capacity 14,400 BTU, SEER2 up to 28.4, minimum sound level 19 dB
• MSZ-GX15NL: 15,000 BTU, R454B refrigerant, cooling capacity 14,000 BTU, heating capacity 18,000 BTU, SEER2 up to 28.4, minimum sound level 26 dB
• PAC-LMA50BC: 5 ports, 208/230 volts, electronic LEVs for refrigerant flow management

Use & Compatibility

This bundle is intended for use in multi-zone heating and cooling systems, making it suitable for both residential and commercial spaces. The MXZ-SM48NL outdoor unit connects seamlessly with the included wall-mounted air handlers, providing efficient climate control across multiple zones. The PAC-LMA50BC branch box ensures optimal refrigerant distribution, enhancing system performance and reliability.
