Mitsubishi Multi-Zone 48000 BTU R-454B 18 SEER2 2-Zone Multi-Position Air Handler Heat Pump System - 24K+30K

Description

This comprehensive HVAC bundle is designed for those looking to optimize their multi-zone heating and cooling systems. Featuring the Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit, this bundle provides efficient climate control for up to eight zones. Paired with the SVZ-AP24NL and SVZ-AP30NL ducted air handlers, it ensures versatile installation options and effective temperature management in both residential and commercial spaces. The included PAC-LMA30BC branch box facilitates seamless connections between multiple indoor units, ensuring balanced refrigerant distribution for enhanced performance. Together, these components deliver a robust solution for diverse climate control needs.

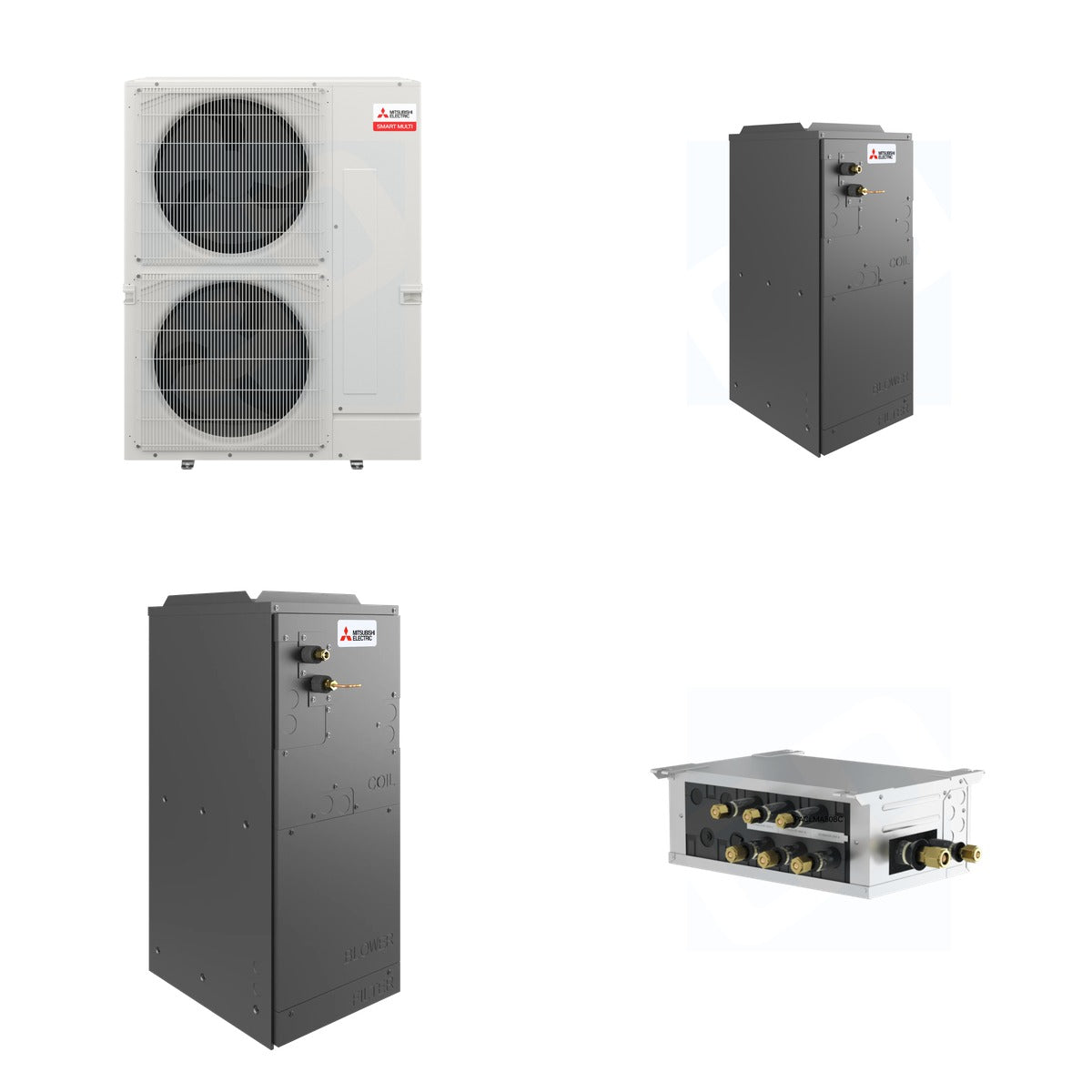

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)

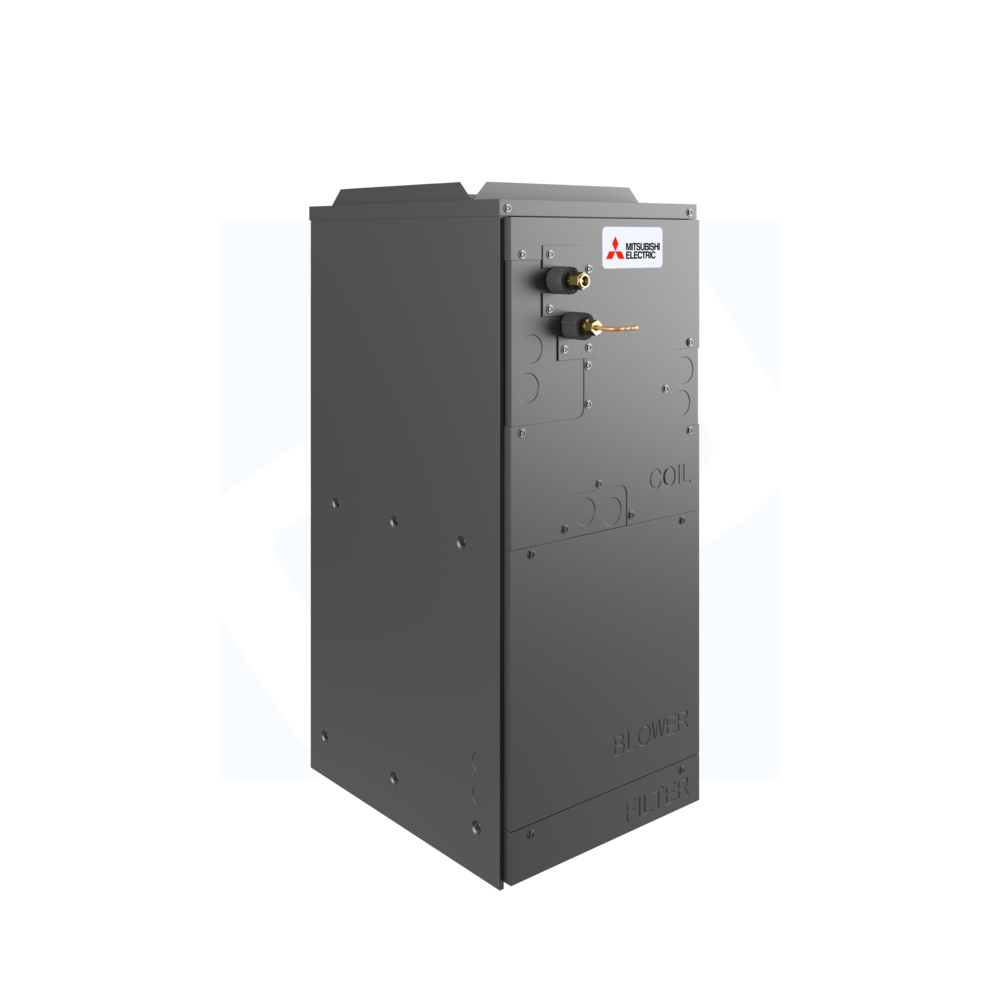

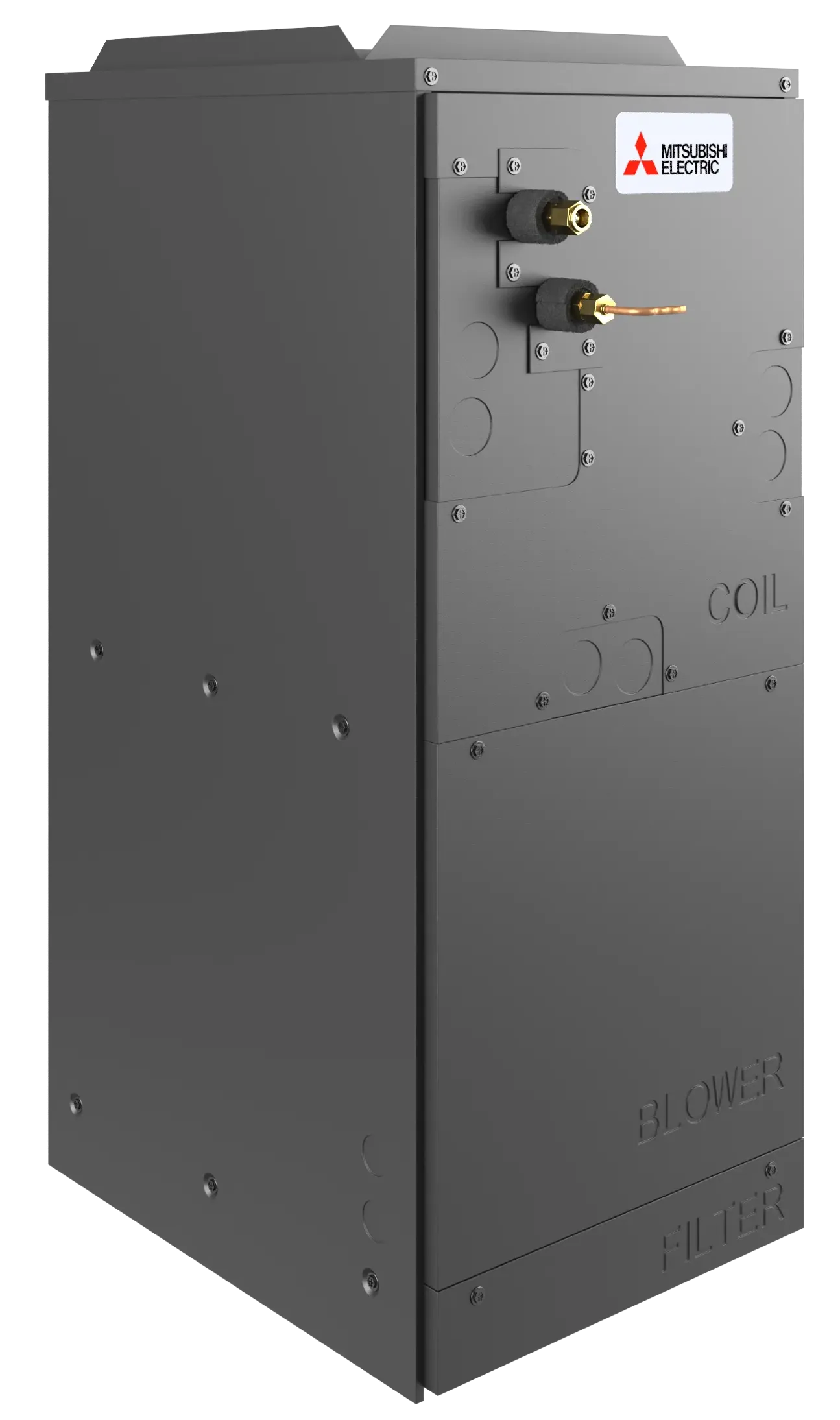

• MITSUBISHI ELECTRIC SVZ-AP24NL - Mitsubishi Electric SVZ-AP24NL AP-Series Ducted Air Handler Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC SVZ-AP30NL - Mitsubishi Electric SVZ-AP30NL AP-Series Ducted Air Handler Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 461 lb (Mitsubishi 225 lb + Mitsubishi 104 lb + Mitsubishi 127 lb + Mitsubishi 5 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, 21.50 SEER2, 42,000 BTU cooling capacity
• SVZ-AP24NL: 24,000 BTU, R454B refrigerant, 1,000 sq ft capacity, WiFi enabled
• SVZ-AP30NL: 30,000 BTU, R454B refrigerant, 1,250 sq ft capacity, 17.8 SEER2
• PAC-LMA30BC: Connects 3 indoor units, compatible with R454B refrigerant

Use & Compatibility

This bundle is ideal for multi-zone heating and cooling applications, providing efficient climate control for both residential and commercial environments. The components are compatible with Mitsubishi Electric's M-, P-Series, and City Multi indoor units, ensuring flexibility in installation and operation.
