Mitsubishi Multi-Zone 40500 BTU R-454B 20 SEER2 4-Zone Wall-Mounted Mini Split Heat Pump System - 9K+9K+12K+18K

Description

This comprehensive Mitsubishi Electric bundle is designed to provide efficient heating and cooling solutions for both residential and light commercial applications. The MXZ-5D42NL outdoor condenser supports up to five zones, making it ideal for larger spaces, while the MSZ-GX09NL, MSZ-GX12NL, and MSZ-GX18NL wall-mounted air handlers ensure optimal comfort in each zone. With advanced features like built-in Wi-Fi, Econo Cool mode, and superior filtration systems, this bundle not only enhances climate control but also promotes energy efficiency and air quality.

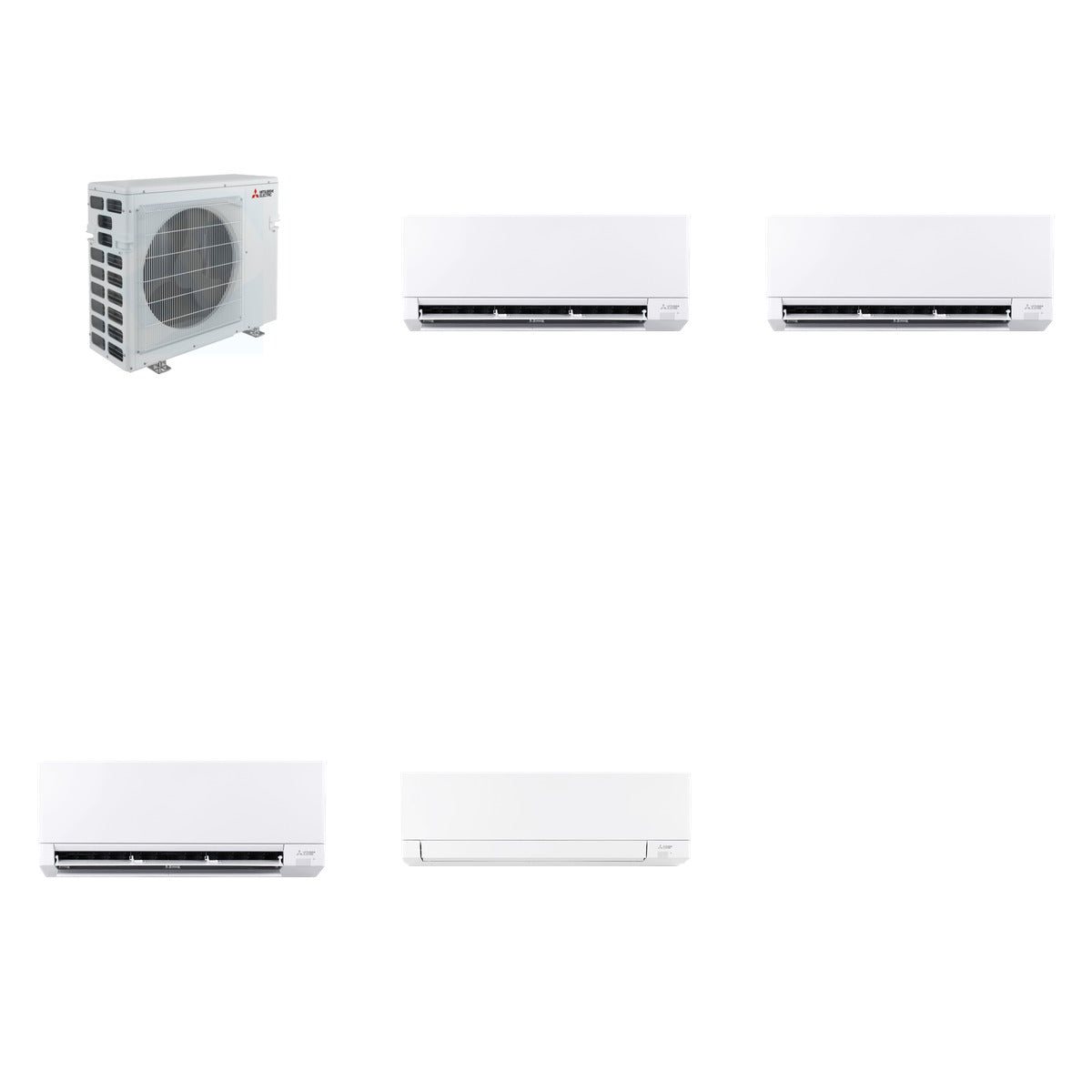

What's Included

• MITSUBISHI ELECTRIC MXZ-5D42NL - Mitsubishi Electric MXZ-5D42NL 42k BTU (3.5 Ton) M-Series Outdoor Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX09NL - Mitsubishi Electric MSZ-GX09NL R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-GX12NL - Mitsubishi Electric MSZ-GX12NL R454B 12k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX18NL - Mitsubishi Electric MSZ-GX18NL R454B 18k BTU Heat Pump Wall Mount Air Handler (Qty x1)

Key Details

• Weight of Bundle: 288 lb (Mitsubishi 194 lb + Mitsubishi 44 lb + Mitsubishi 22 lb + Mitsubishi 28 lb)
• Cooling Capacity: 42,000 BTU (MXZ-5D42NL), 9,000 BTU (MSZ-GX09NL), 12,000 BTU (MSZ-GX12NL), 18,000 BTU (MSZ-GX18NL)
• Heating Capacity: 53,600 BTU (MXZ-5D42NL), 10,900 BTU (MSZ-GX09NL), 14,400 BTU (MSZ-GX12NL), 19,000 BTU (MSZ-GX18NL)
• SEER2 Ratings: 19.3 (MXZ-5D42NL), Up to 28.4 (MSZ-GX09NL, MSZ-GX12NL), 22.5 (MSZ-GX18NL)
• Refrigerant Type: R-454B
• Voltage: 208/230V
• Sound Levels: As low as 19 dB (MSZ-GX09NL, MSZ-GX12NL), up to 59 dB (MXZ-5D42NL)
• Dimensions: Vary by model; MXZ-5D42NL measures 31.43 x 37.45 x 13 inches

Use & Compatibility

This bundle is perfect for multi-zone heating and cooling applications, making it suitable for both residential and light commercial environments. The outdoor condenser is compatible with up to five indoor air handlers, allowing for tailored climate control in different areas. Each air handler features advanced technology to enhance comfort and efficiency, ensuring a seamless integration into existing systems.
