Mitsubishi Multi-Zone 40500 BTU R-454B 20 SEER2 4-Zone Wall-Mounted Mini Split Heat Pump System - 6K+15K+15K+15K

Description

This comprehensive HVAC bundle includes everything you need for efficient climate control in residential or light commercial spaces. The Mitsubishi Electric MXZ-5D42NL outdoor condenser serves as the powerhouse, capable of supporting up to five zones with its impressive 42,000 BTU cooling and 53,600 BTU heating capacities. Complementing this unit are three wall-mounted air handlers: the MSZ-GX06NL, which provides efficient heating and cooling for smaller areas, and two MSZ-GX15NL units, perfect for larger spaces. Together, these components ensure optimal comfort, energy efficiency, and advanced air filtration, making them an ideal choice for any multi-zone system.

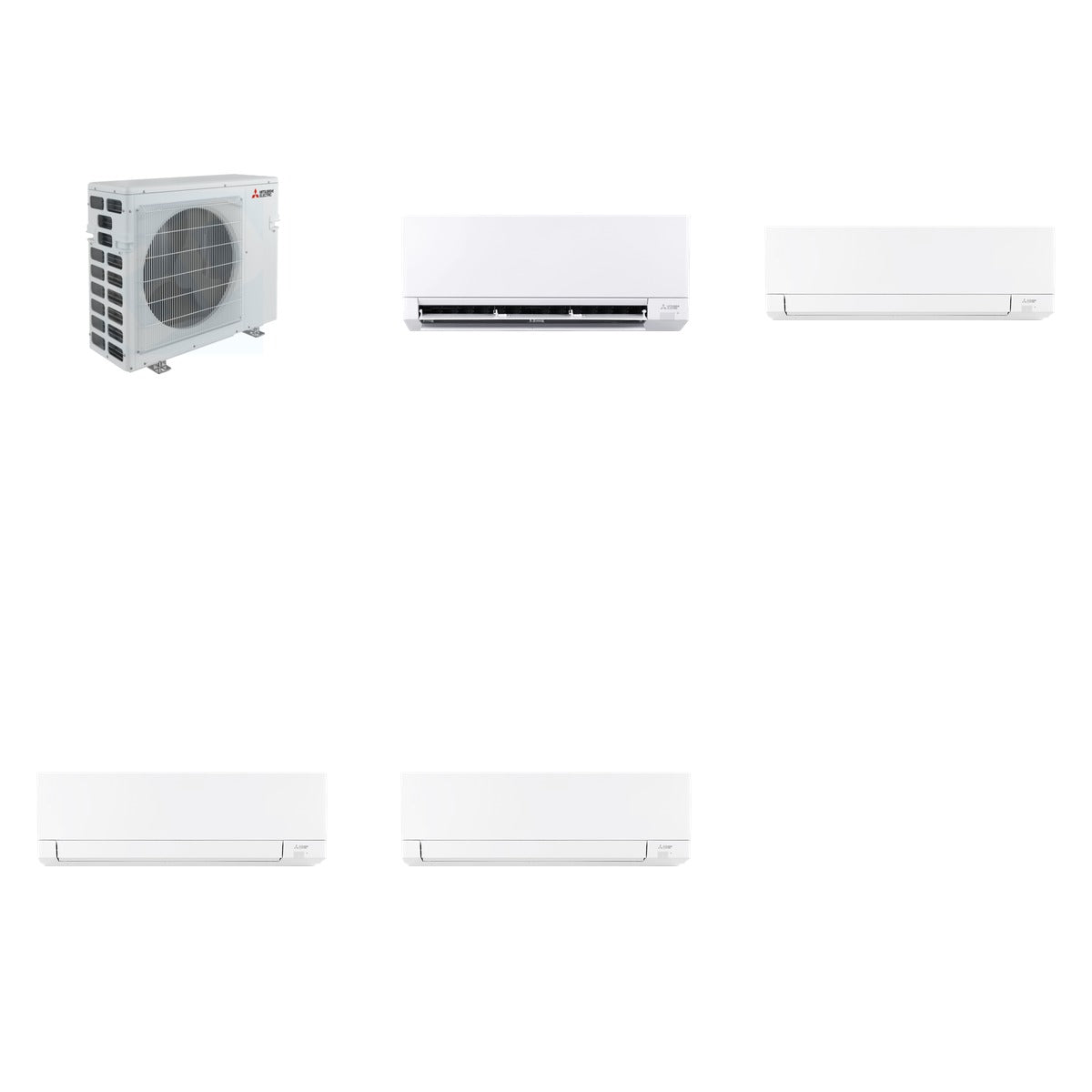

What's Included

• MITSUBISHI ELECTRIC MXZ-5D42NL - Mitsubishi Electric MXZ-5D42NL 42k BTU (3.5 Ton) M-Series Outdoor Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - Mitsubishi Electric MSZ-GX06NL R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX15NL - Mitsubishi Electric MSZ-GX15NL R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x3)

Key Details

• Weight of Bundle: 282 lb (Mitsubishi 194 lb + Mitsubishi 22 lb + Mitsubishi 66 lb)
• Cooling Capacity: 42,000 BTU (MXZ-5D42NL), 6,000 BTU (MSZ-GX06NL), 15,000 BTU (MSZ-GX15NL)
• Heating Capacity: 53,600 BTU (MXZ-5D42NL), 7,200 BTU (MSZ-GX06NL), 18,000 BTU (MSZ-GX15NL)
• SEER2 Rating: 19.3 (MXZ-5D42NL), Up to 28.4 (MSZ-GX06NL), Not specified (MSZ-GX15NL)
• Refrigerant Type: R-454B
• Voltage: 208/230V
• Noise Level: 52 dB (MXZ-5D42NL), As low as 19 dB (MSZ-GX06NL), 26-51 dB (MSZ-GX15NL)
• Dimensions: MXZ-5D42NL (31.43" H x 37.45" W x 13" D), MSZ-GX06NL (11.77" H x 31.40" W x 9.65" D), MSZ-GX15NL (11.77" H x 31.40" W x 9.65" D)

Use & Compatibility

This bundle is designed for multi-zone heating and cooling applications, making it suitable for both residential and light commercial environments. The outdoor condenser is compatible with up to five indoor air handlers, allowing for tailored climate control in various spaces. The included air handlers are ideal for zones ranging from small rooms to larger areas, ensuring efficient temperature management throughout your property.
