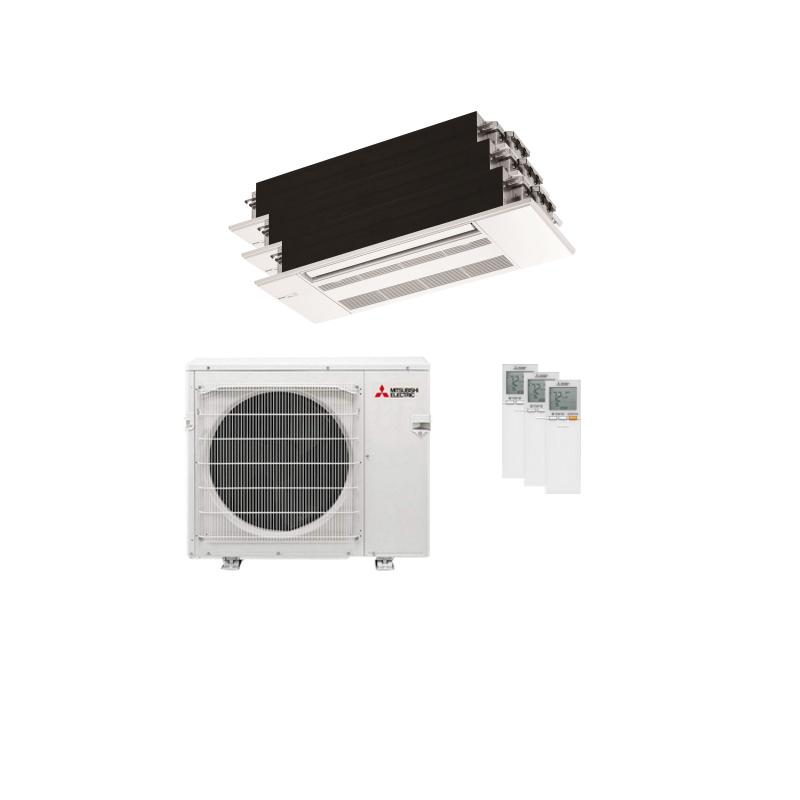

Mitsubishi Electric MXZ-5D42NL Four Zone Ceiling Cassette Mini Split 42,000 BTU (4 x MLZ-KX09NL) MLP-449WU

Product Description

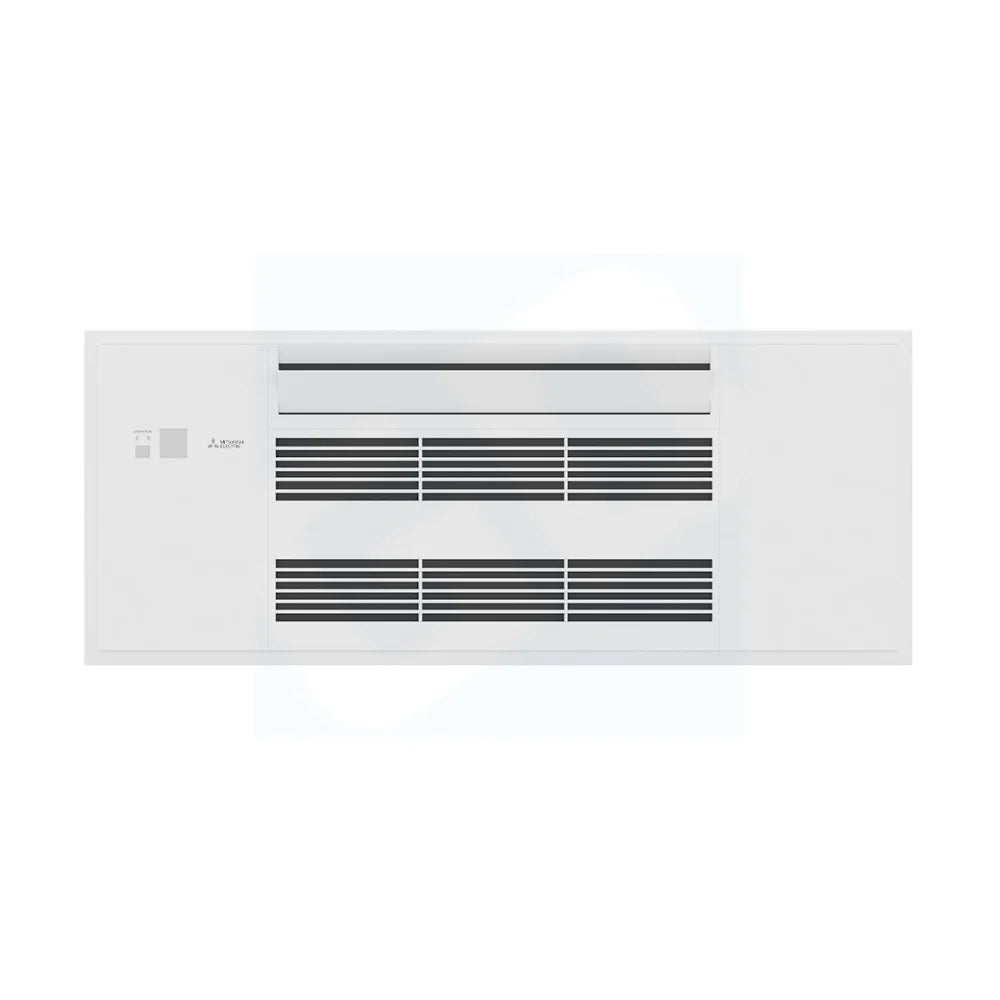

The Mitsubishi Electric MXZ-5D42NL system pairs an MXZ-5D42NL outdoor inverter condenser with four MLZ-KX09NL low-profile ceiling cassette indoor units and four MLP-449WU grilles to provide a nominal 42,000 BTU multi-zone heat pump solution with a 19.3 SEER2 rating. The system uses R454B refrigerant, is pre-charged with 6.3 lbs for a 262 ft line set, and operates on 230V 1-phase 60Hz. Outdoor capacity is rated at 40,500 BTU cooling and 45,000 BTU heating with outdoor sound level 59 dBA and indoor sound levels 27–37 dBA.

• System configuration: four 9,000 BTU MLZ-KX09NL ceiling cassette indoor units paired with MXZ-5D42NL outdoor condenser for a nominal 42,000 BTU system.
• Performance and refrigerant: 19.3 SEER2, HSPF2 9.10, EER2 9.3, uses low-GWP R454B refrigerant and ships pre-charged 6.3 lbs for a 262 ft line set.
• Electrical and installation: operates at 230V 1 Phase 60Hz, outdoor dimensions 31.34" x 37.41" x 13", outdoor weight 152 lbs, outdoor sound level 59 dBA.

Product Highlights

Four-zone 42,000 BTU ceiling-cassette heat pump system with MXZ-5D42NL inverter condenser, four MLZ-KX09NL indoor units, R454B refrigerant.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MXZ-5D42NL|MLZ-KX09NL(4)|MLP-449WU(4)
