Mitsubishi Multi-Zone 40500 BTU R-454B 20 SEER2 3-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 12K+12K+12K

Description

The Mitsubishi Electric Multi-Zone HVAC Bundle is expertly crafted to provide comprehensive climate control for both residential and light commercial applications. This bundle includes a powerful outdoor condenser and multiple indoor units, allowing for flexible heating and cooling across different zones. The MXZ-5D42NL outdoor condenser delivers up to 42,000 BTU, efficiently connecting with three MLZ-KX12NL ceiling cassette indoor units, each providing 12,000 BTU. The included MLP-449WU grilles ensure optimal airflow and seamless integration, enhancing the overall performance and comfort of your space.

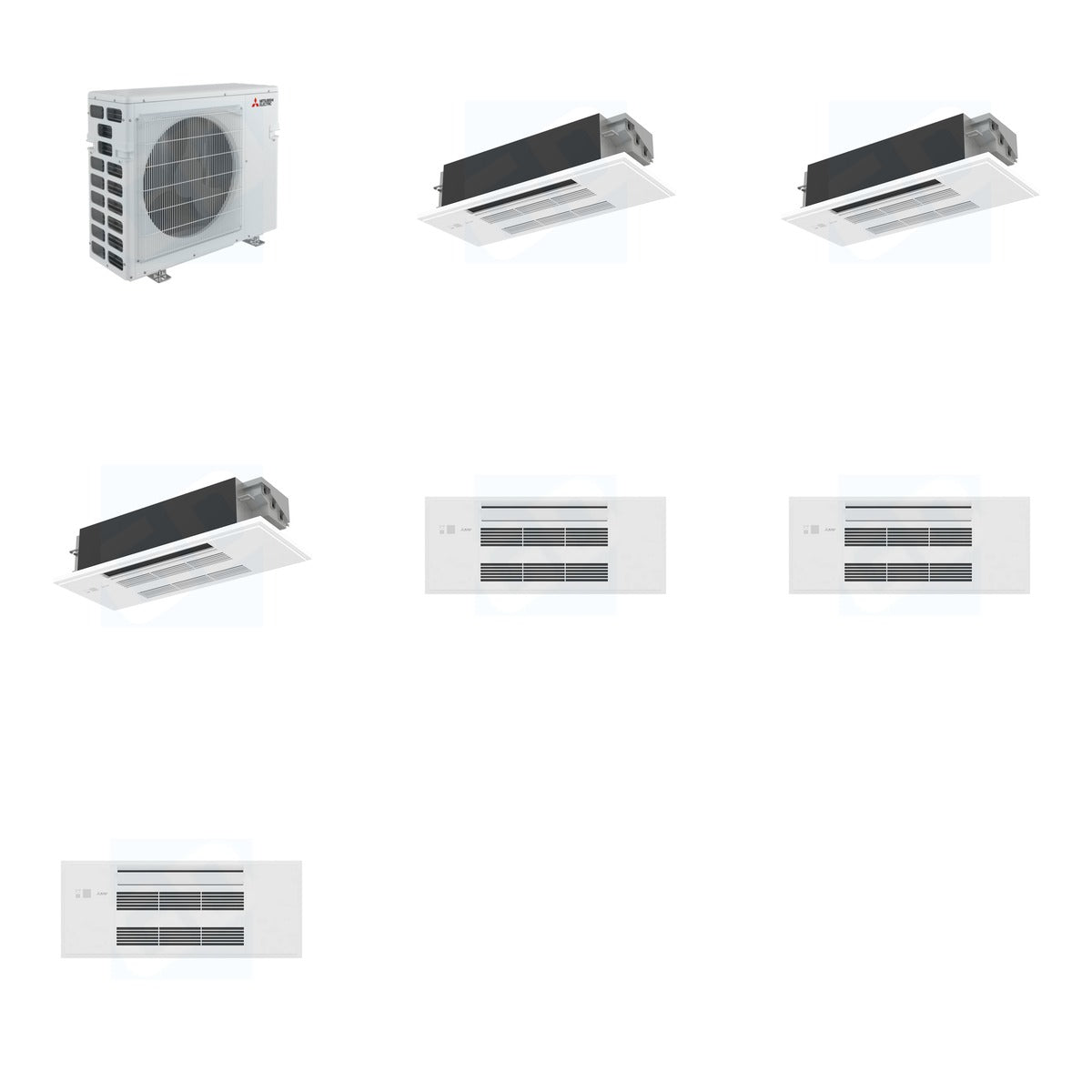

What's Included

• MITSUBISHI ELECTRIC MXZ-5D42NL - Mitsubishi Electric MXZ-5D42NL 42k BTU (3.5 Ton) M-Series Outdoor Condenser up to 5 Zones (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX12NL - Mitsubishi Electric MLZ-KX12NL 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x3)

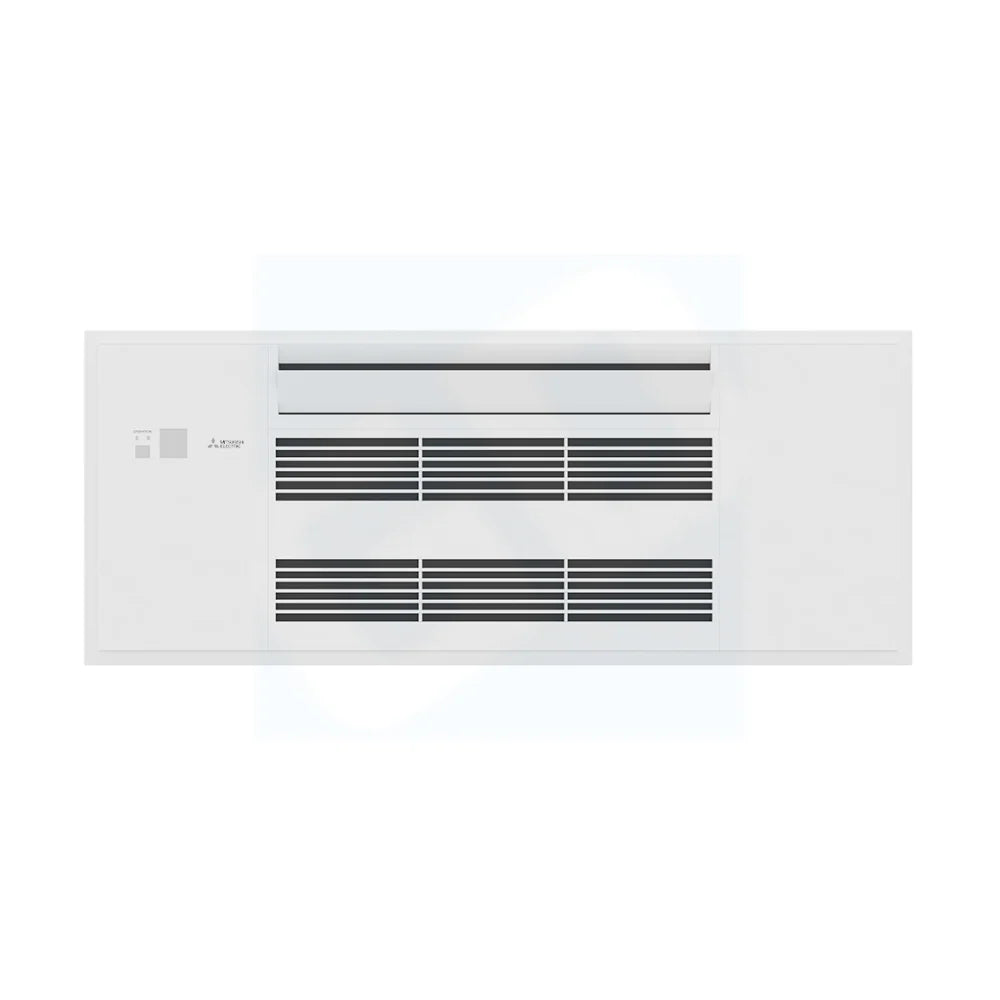

• MITSUBISHI MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x3)

Key Details

• Weight of Bundle: 326 lb (Mitsubishi 194 lb + Mitsubishi 102 lb + Mitsubishi 30 lb)
• Cooling BTU: 43000
• Heating BTU: 53600
• SEER2: 19.3
• Voltage: 208/230V
• Max Breaker Size: 67 Amps
• Indoor Unit Dimensions: 43-3/8 W x 14-3/16 D x 7-5/16 H
• Noise Level: 27-40 dB(A)
• Refrigerant Type: R-454B
• Weight: 34 lbs (Indoor Unit)

Use & Compatibility

This bundle is designed for efficient heating and cooling in multi-zone applications. The outdoor condenser can support up to five indoor units, while the ceiling cassette units are perfect for both residential and commercial settings. The included grilles ensure proper airflow and compatibility with the MLZ series, making installation straightforward and effective.
