Mitsubishi Multi-Zone 40500 BTU R-454B 16 SEER2 2-Zone Ducted Medium-Static Mini Split Heat Pump System - 12K+15K

Description

Introducing the ultimate HVAC bundle designed for optimal climate control in both residential and light commercial spaces. This package includes a powerful Mitsubishi Electric MXZ-5D42NL outdoor condenser, capable of supporting up to five zones, along with two versatile indoor units: the PEAD-AA12NL and PEAD-AA15NL. Together, these units provide a comprehensive heating and cooling solution that combines energy efficiency, quiet operation, and advanced technology. The outdoor unit's variable speed inverter-driven compressor works seamlessly with the indoor units, ensuring tailored comfort across multiple areas while adhering to modern efficiency standards.

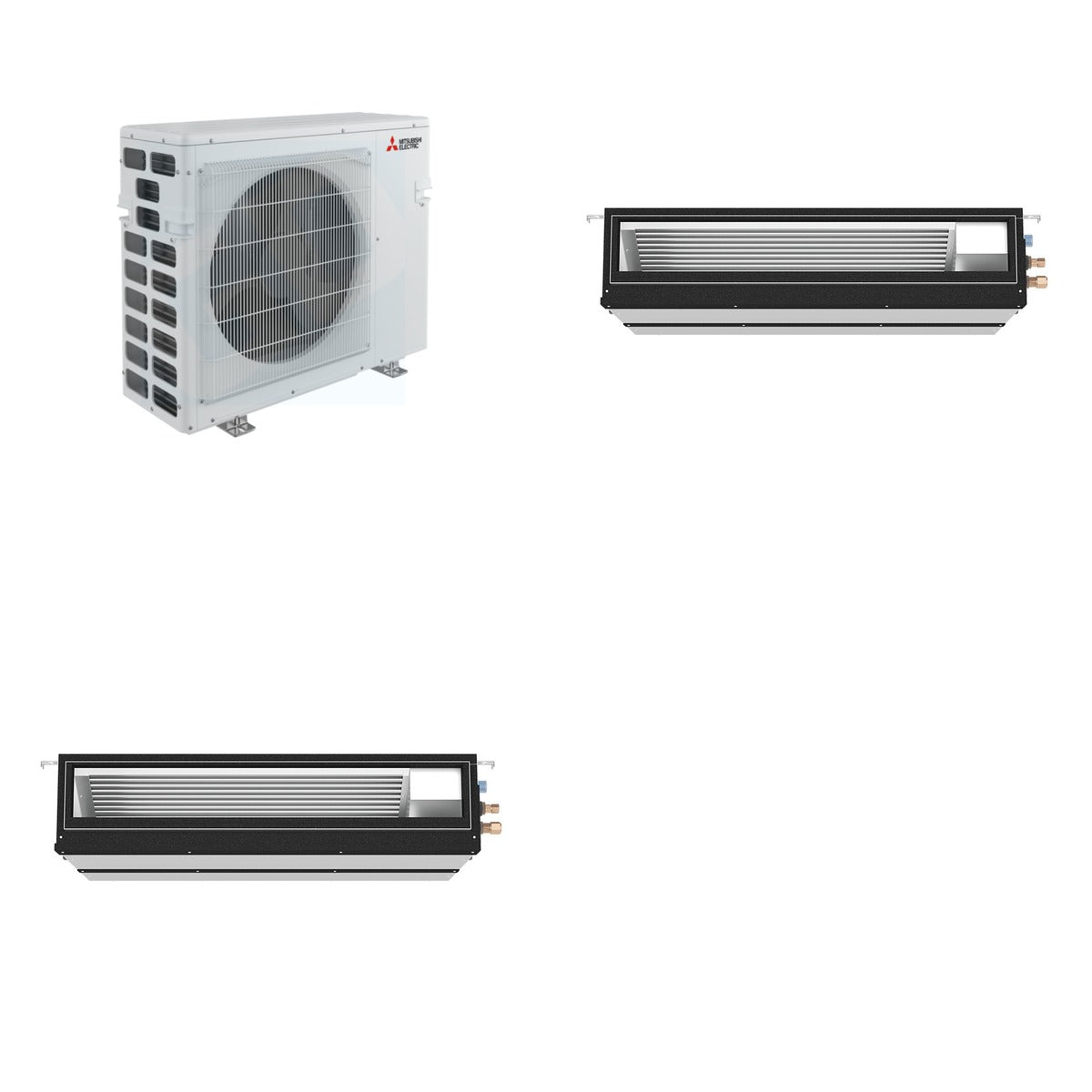

What's Included

• MITSUBISHI ELECTRIC MXZ-5D42NL - Mitsubishi Electric MXZ-5D42NL 42k BTU (3.5 Ton) M-Series Outdoor Condenser up to 5 Zones (Qty x1)
• MITSUBISHI ELECTRIC PEAD-AA12NL - Mitsubishi Electric PEAD-AA12NL R454B: 12k BTU P-Series Concealed Horizontal-Ducted Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PEAD-AA15NL - Mitsubishi Electric PEAD-AA15NL R454B: 15k BTU P-Series Concealed Horizontal-Ducted Indoor Unit (Qty x1)

Key Details

• Weight of Bundle: 310 lb (Mitsubishi 194 lb + Mitsubishi 58 lb + Mitsubishi 58 lb)
• Cooling Capacity: 42,000 BTU (MXZ-5D42NL), 12,400 BTU (PEAD-AA12NL), 15,000 BTU (PEAD-AA15NL)
• Heating Capacity: 53,600 BTU (MXZ-5D42NL), 18,000 BTU (PEAD-AA15NL)
• SEER2 Rating: 19.3 (MXZ-5D42NL), 20 (PEAD-AA12NL)
• Refrigerant Type: R-454B
• Voltage: 208/230V
• Sound Level: 59 dBA (MXZ-5D42NL), 34 dBA (PEAD-AA12NL), 33 dBA (PEAD-AA15NL)
• Dimensions: MXZ-5D42NL (31.43" H x 37.45" W x 13" D), PEAD-AA12NL (9-7/8" H x 35-7/16" W x 28-7/8" D), PEAD-AA15NL (9-7/8" H x 35-7/16" W x 28-7/8" D)

Use & Compatibility

This bundle is ideal for multi-zone heating and cooling applications, providing efficient climate control in various settings. The MXZ-5D42NL outdoor condenser is compatible with both PEAD-AA12NL and PEAD-AA15NL indoor units, making it a perfect solution for tailored comfort in homes and small commercial spaces.
