Mitsubishi Multi-Zone 36400 BTU R-454B 20 SEER2 4-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+9K+18K

Description

This comprehensive HVAC bundle features a powerful Mitsubishi Electric multi-zone outdoor condenser and three advanced wall-mounted air handlers, making it an ideal solution for both residential and commercial applications. The MXZ-5D36NL outdoor unit supports up to five indoor zones, providing tailored climate control throughout your space. The included MSZ-FX06NL, MSZ-FX09NL, and MSZ-FX18NL air handlers offer efficient heating and cooling capabilities with advanced filtration and smart technology, ensuring optimal comfort and air quality in any room.

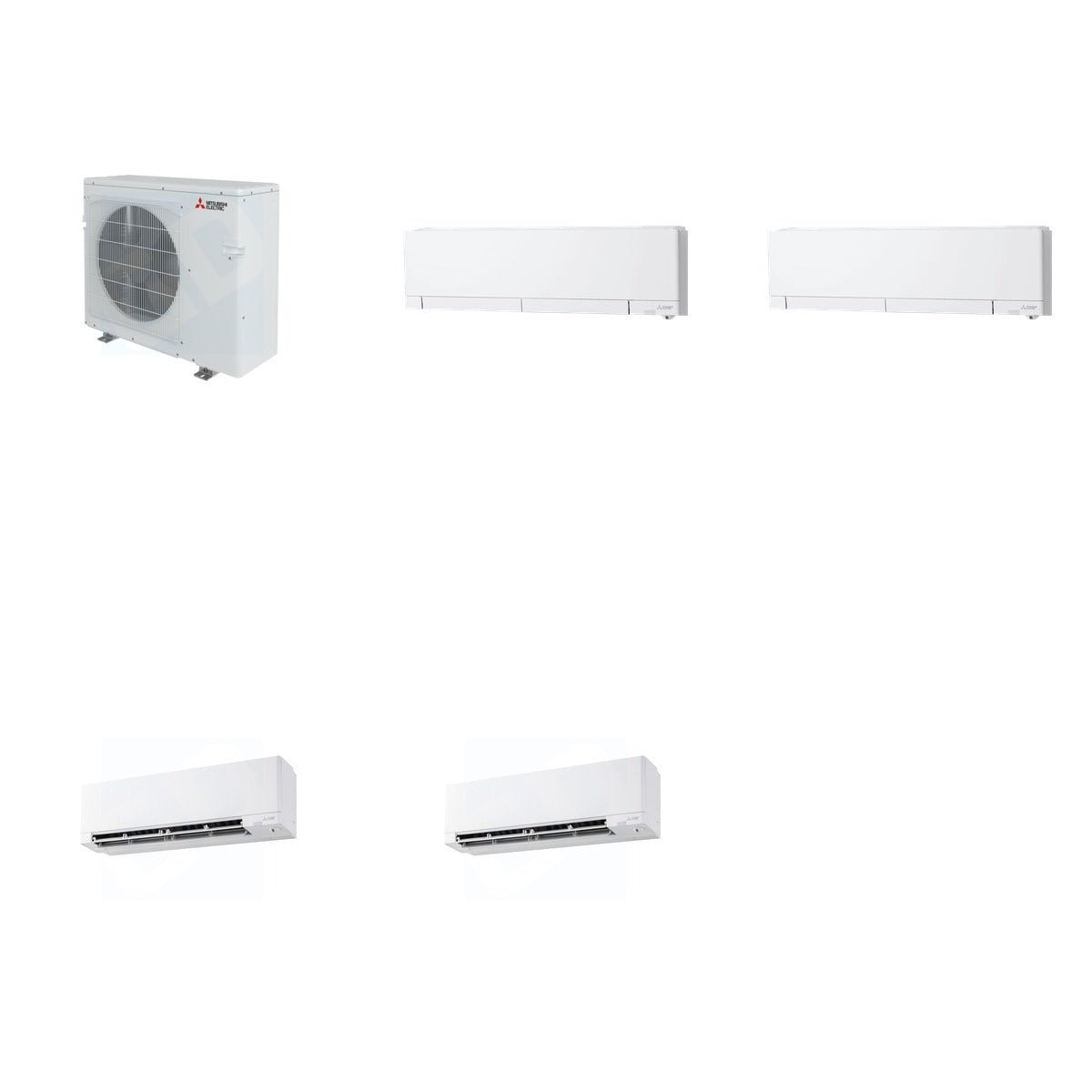

What's Included

• MITSUBISHI ELECTRIC MXZ-5D36NL - Mitsubishi Electric MXZ-5D36NL 36k BTU (3.0 Ton) M-Series Outdoor Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX18NL - Mitsubishi Electric MSZ-FX18NL FX-Series Wall Mounted Unit 18k BTU Hyper Heat Air Handler (Qty x1)

Key Details

• Weight of Bundle: 324.8 lb (Mitsubishi 194 lb + Mitsubishi 58 lb + Mitsubishi 36.4 lb + Mitsubishi 36.4 lb)
• Cooling Capacity: 36,400 BTU (MXZ-5D36NL)
• Heating Capacity: 43,000 BTU (MXZ-5D36NL)
• Voltage: 208/230V
• Number of Zones: Up to 5 (MXZ-5D36NL)
• Refrigerant Type: R-454B
• SEER: Up to 35 (MSZ-FX06NL)
• HSPF: Up to 13.3 (MSZ-FX06NL)
• Sound Level: As low as 20 dB (MSZ-FX06NL)
• Dimensions (H x W x D): 12 in x 39.27 in x 9.75 in (MSZ-FX Series)

Use & Compatibility

This bundle is designed for both cooling and heating applications, making it suitable for a variety of environments. The outdoor condenser can connect to multiple indoor units, allowing for efficient climate control across different zones. The wall-mounted air handlers are compatible with single-zone or multi-zone systems, providing flexibility and enhanced comfort wherever they are installed.
