Mitsubishi Multi-Zone 36400 BTU R-454B 20 SEER2 3-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+6K

Description

The Mitsubishi Electric HVAC bundle is designed to provide comprehensive climate control solutions for both residential and commercial spaces. This package includes a powerful 36k BTU outdoor condenser unit that supports up to five indoor zones, along with three efficient ceiling cassette indoor units that deliver heating and cooling capabilities. The combination of these units ensures optimal temperature regulation, energy efficiency, and versatility, making it an ideal choice for diverse environments. With advanced features such as Wi-Fi connectivity and a built-in condensate lift, this bundle is perfect for modern living and working spaces.

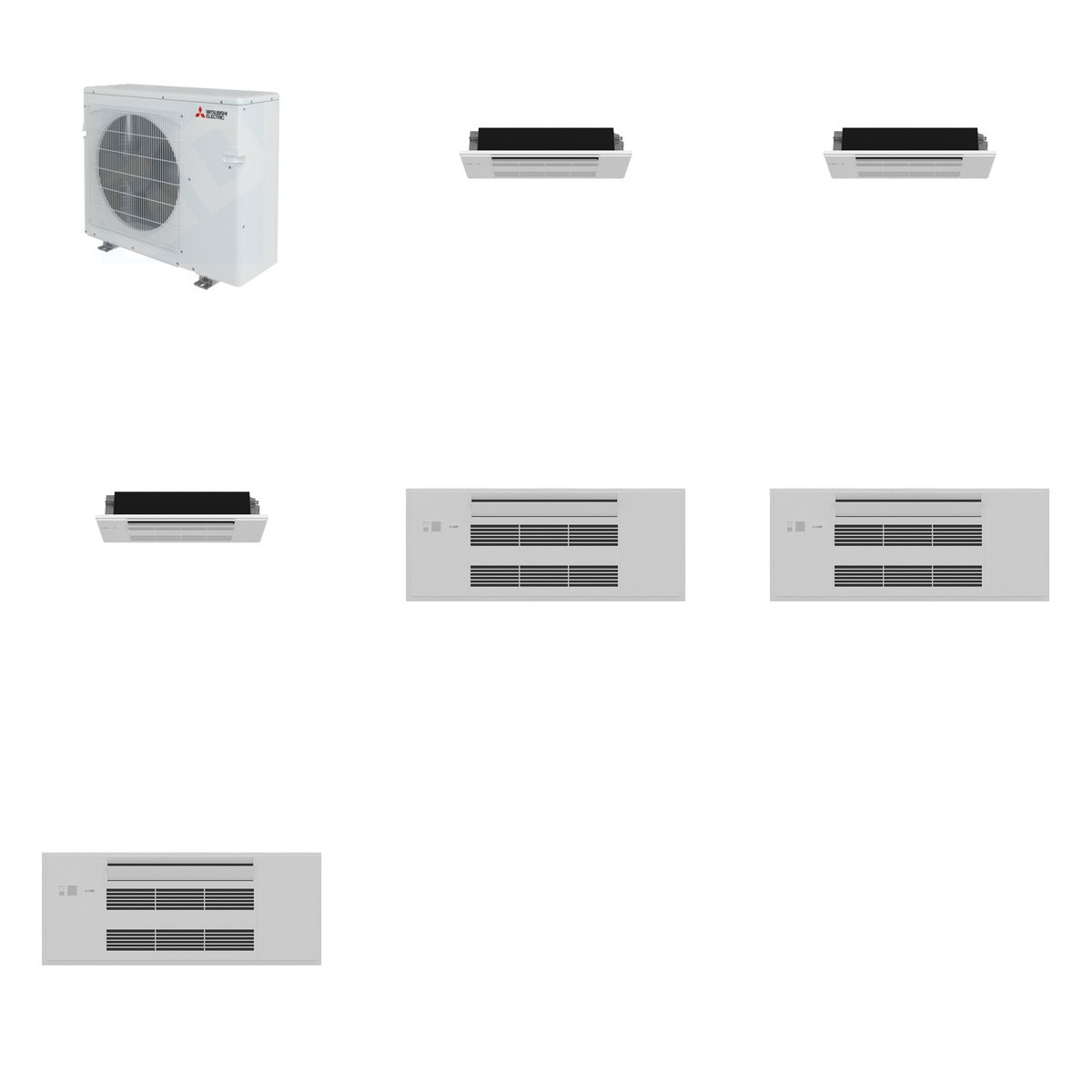

What's Included

• MITSUBISHI ELECTRIC MXZ-5D36NL - Mitsubishi Electric MXZ-5D36NL 36k BTU (3.0 Ton) M-Series Outdoor Condenser (Qty x1)

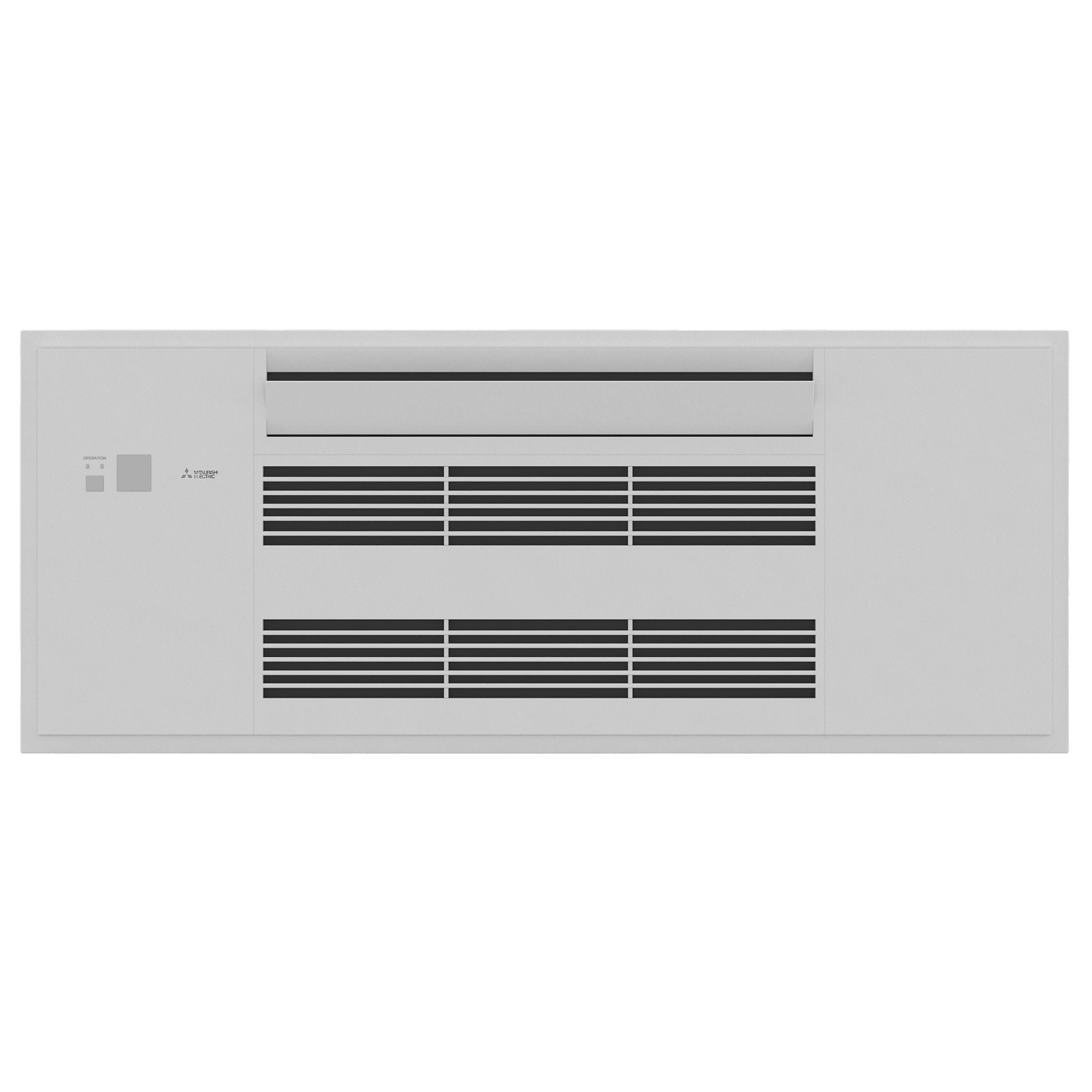

• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x3)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KX Series) (Qty x3)

Key Details

• Weight of Bundle: 317 lb (Mitsubishi 194 lb + Mitsubishi 102 lb + Mitsubishi 21 lb)
• Cooling Capacity: 36,400 BTU (MXZ-5D36NL)
• Heating Capacity: 43,000 BTU (MXZ-5D36NL)
• Indoor Unit Capacity: 6,000 BTU (MLZ-KX06NL)
• Voltage: 208/230V
• Refrigerant Type: R-454B
• Outdoor Unit Dimensions: 31.375 in H x 37.406 in W x 13 in D
• Indoor Unit Dimensions: 33-3/16 in W x 11-7/8 in D x 7-11/16 in H
• Airflow: 152-198 CFM (Cooling), 152-212 CFM (Heating)
• Noise Level: 29-36 dB(A) (Cooling), 29-37 dB(A) (Heating)

Use & Compatibility

This HVAC bundle is intended for use in multi-zone heating and cooling applications, making it compatible with various residential and commercial systems. The outdoor condenser unit can connect to multiple indoor units, providing tailored comfort across different spaces. Ideal for installations in homes, offices, and retail environments.
