Mitsubishi Multi-Zone 36400 BTU R-454B 18 SEER2 2-Zone Multi-Position Air Handler Heat Pump System - 18K+18K

Description

The Mitsubishi Electric HVAC bundle combines the powerful MXZ-5D36NL outdoor condenser with two SVZ-AP18NL ducted air handler indoor units, creating a versatile multi-zone heating and cooling system. The outdoor unit provides a robust 36,000 BTU capacity, supporting up to five zones, while the two indoor units each deliver 18,000 BTUs, ensuring efficient climate control across larger spaces. This combination is perfect for both residential and light commercial applications, offering energy-efficient operation with R454B refrigerant and advanced features like variable speed technology and smart control compatibility.

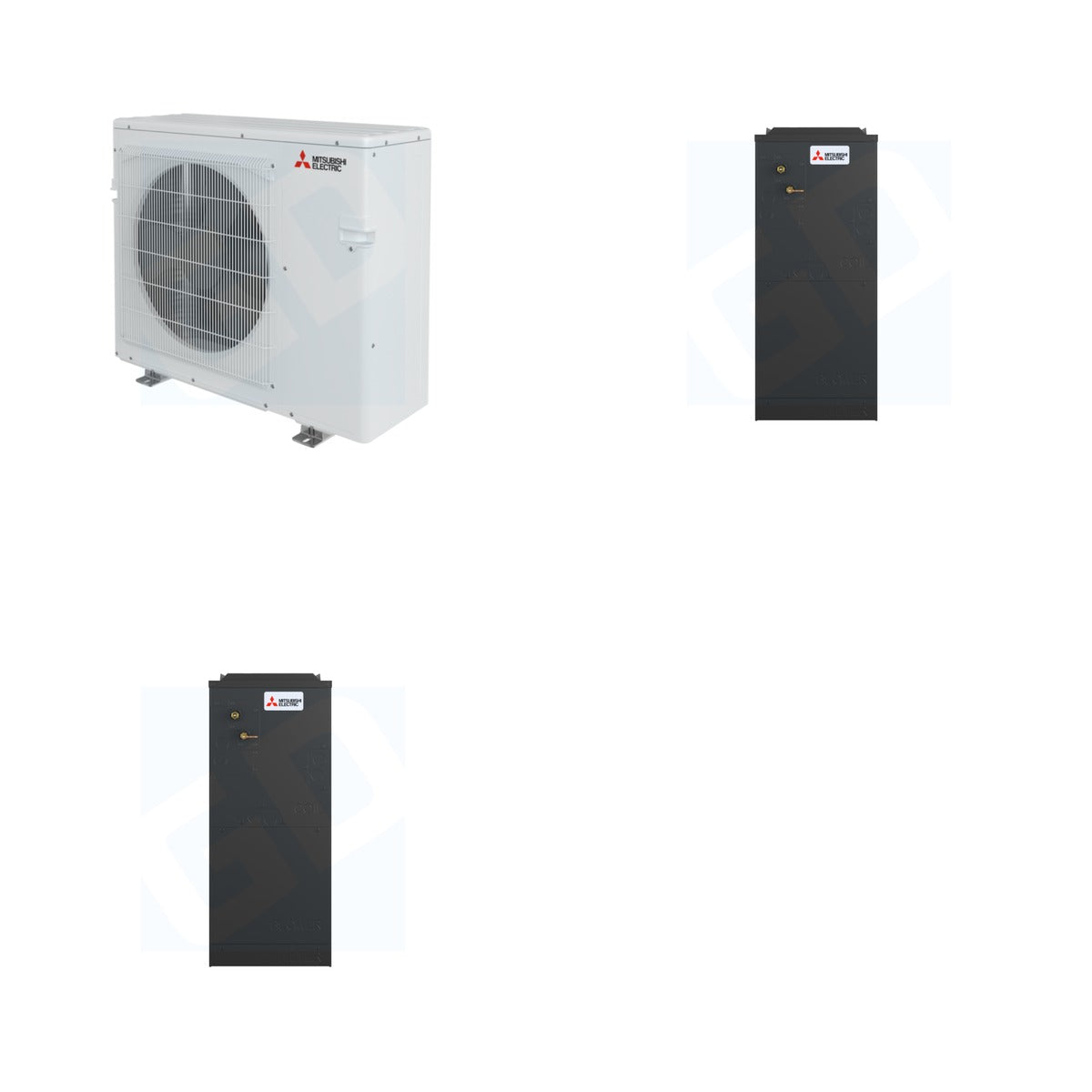

What's Included

• MITSUBISHI ELECTRIC MXZ-5D36NL - Mitsubishi Electric MXZ-5D36NL 36k BTU M-Series Outdoor Condenser up to 5 Zones (Qty x1)

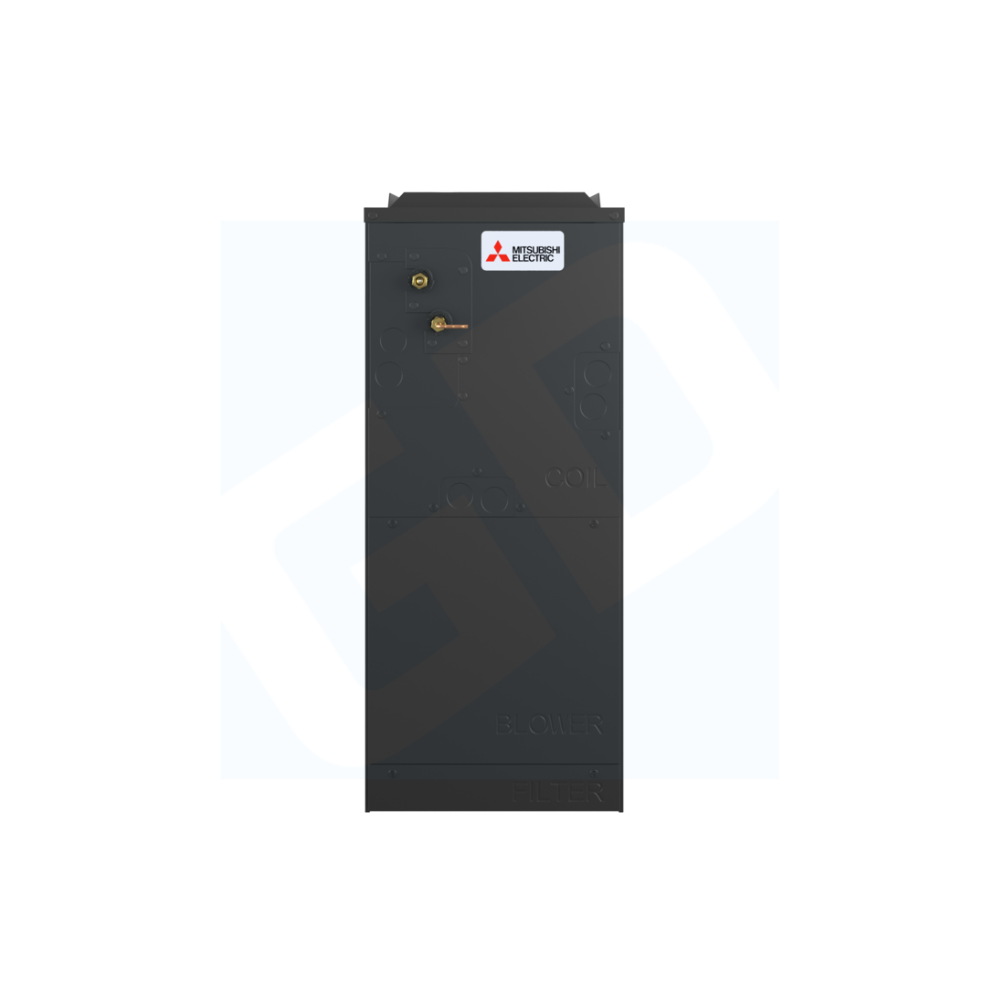

• MITSUBISHI ELECTRIC SVZ-AP18NL - Mitsubishi Electric SVZ-AP18NL AP-Series Ducted Air Handler Indoor Unit - Single-Zone - 18k BTU - R-454B (Qty x2)

Key Details

• Weight of Bundle: 402 lb (Mitsubishi 194 lb + Mitsubishi 208 lb)
• Cooling Capacity: 36,400 BTU
• Heating Capacity: 43,000 BTU
• SEER2: 16.2
• Refrigerant Type: R-454B
• Voltage: 208/230V
• Outdoor Unit Dimensions: 31.375 x 37.406 x 13 inches
• Indoor Unit Dimensions: 17 x 21-5/8 x 39-13/16 inches
• Noise Level: 36-45 dB(A)
• Airflow: 471-675 CFM

Use & Compatibility

This HVAC bundle is designed for efficient heating and cooling in residential and light commercial spaces. The outdoor condenser is compatible with multiple indoor units, allowing for tailored climate control across different zones. The air handlers can be installed in various orientations, making them versatile for different room layouts.
