Mitsubishi Multi-Zone 36000 BTU R-454B 20 SEER2 4-Zone 2'x2' Ceiling Cassette Mini Split Heat Pump System - 9K+9K+9K+15K

Description

This comprehensive HVAC bundle features essential components for a multi-zone mini-split system, providing efficient heating and cooling solutions for both residential and commercial applications. The Mitsubishi Electric MXZ-SM36NL outdoor condenser serves as the powerhouse, supporting up to 11 indoor units for customized climate control across various zones. Complementing this are the SLZ-AF09NL and SLZ-AF15NL ceiling cassette indoor units, which fit seamlessly into standard ceiling grids and offer adjustable airflow patterns. The PAC-LMA50BC branch box facilitates optimal refrigerant management, while the SLP-18FAU grille ensures proper air distribution. Together, these components create a versatile and efficient HVAC system tailored to your needs.

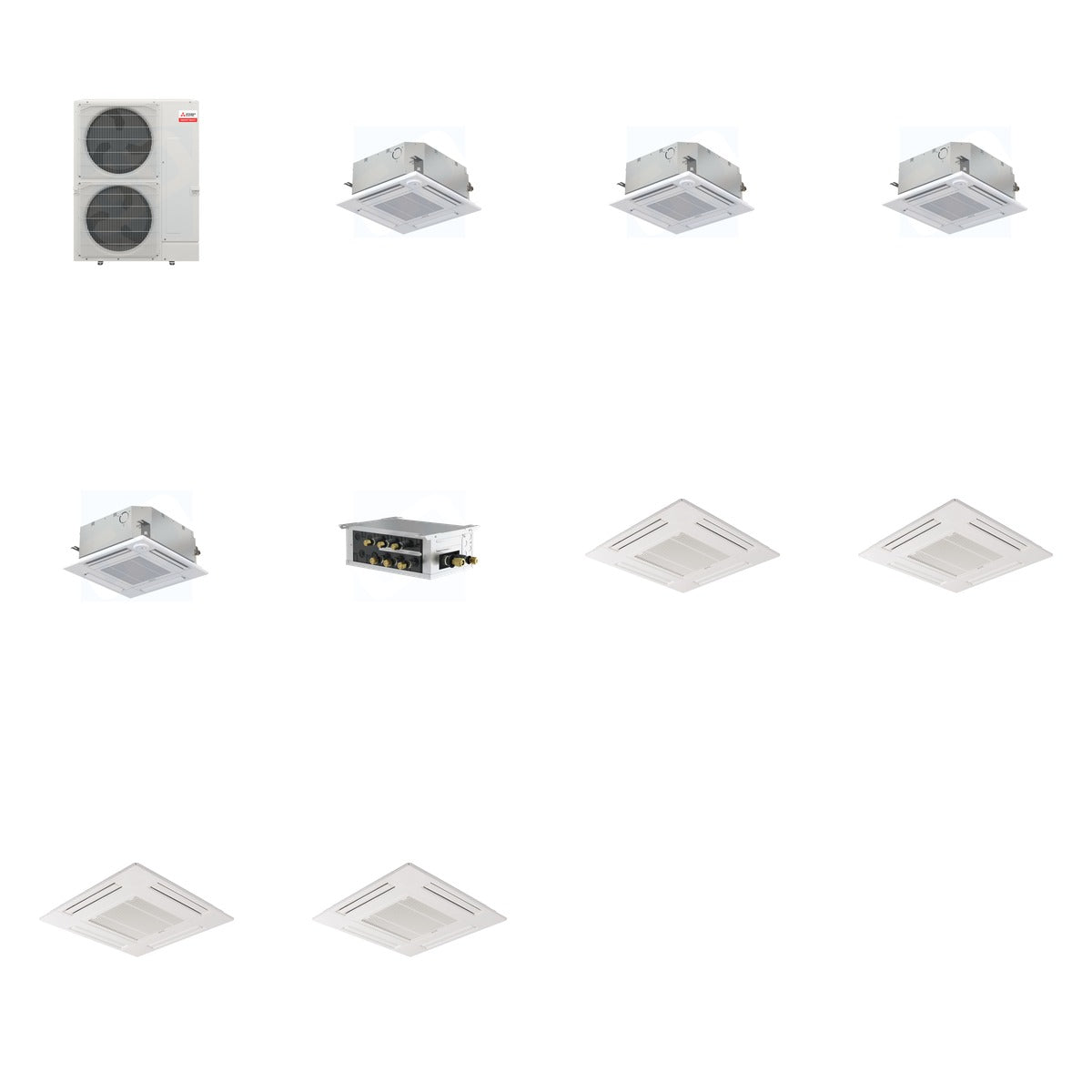

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF09NL - M-Series Indoor Unit (Qty x3)
• MITSUBISHI ELECTRIC SLZ-AF15NL - M-Series Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC SLP-18FAU - Grille for SLZ-AF Series (Qty x4)

Key Details

• Weight of Bundle: 328 lb (Mitsubishi 161 lb + Mitsubishi 99 lb + Mitsubishi 33 lb + Mitsubishi 7 lb + Mitsubishi 28 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL)
• Indoor Units: 4 zones (with branch box), 11 zones (without)
• Refrigerant Type: R-454B
• Voltage: 208/230 Volts
• Dimensions (MXZ-SM36NL): 41-11/32 W x 13 D x 52-11/16 H
• Sound Level: Minimum 25 dB (SLZ-AF09NL)
• Air Flow: Up to 405 CFM (SLZ-AF15NL)

Use & Compatibility

This bundle is designed for use in multi-zone heating and cooling applications, making it ideal for both residential and commercial spaces. The outdoor condenser is compatible with M-, P-Series, and CITY MULTI indoor units, while the ceiling cassette units fit standard ceiling grids, ensuring a streamlined installation process.
