Mitsubishi Multi-Zone 36000 BTU R-454B 20 SEER2 3-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+9K+18K

Description

This comprehensive Mitsubishi Electric HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and commercial applications. Featuring a robust multi-zone heat pump condenser and a selection of wall-mounted air handlers, this bundle allows for customized climate control across multiple rooms. The MXZ-SM36NL condenser connects seamlessly with the MSZ-FX series air handlers, offering advanced features such as built-in Wi-Fi, quiet operation, and superior air filtration. With the included branch box, you can easily expand your system to accommodate additional indoor units, ensuring optimal comfort and energy efficiency throughout your space.

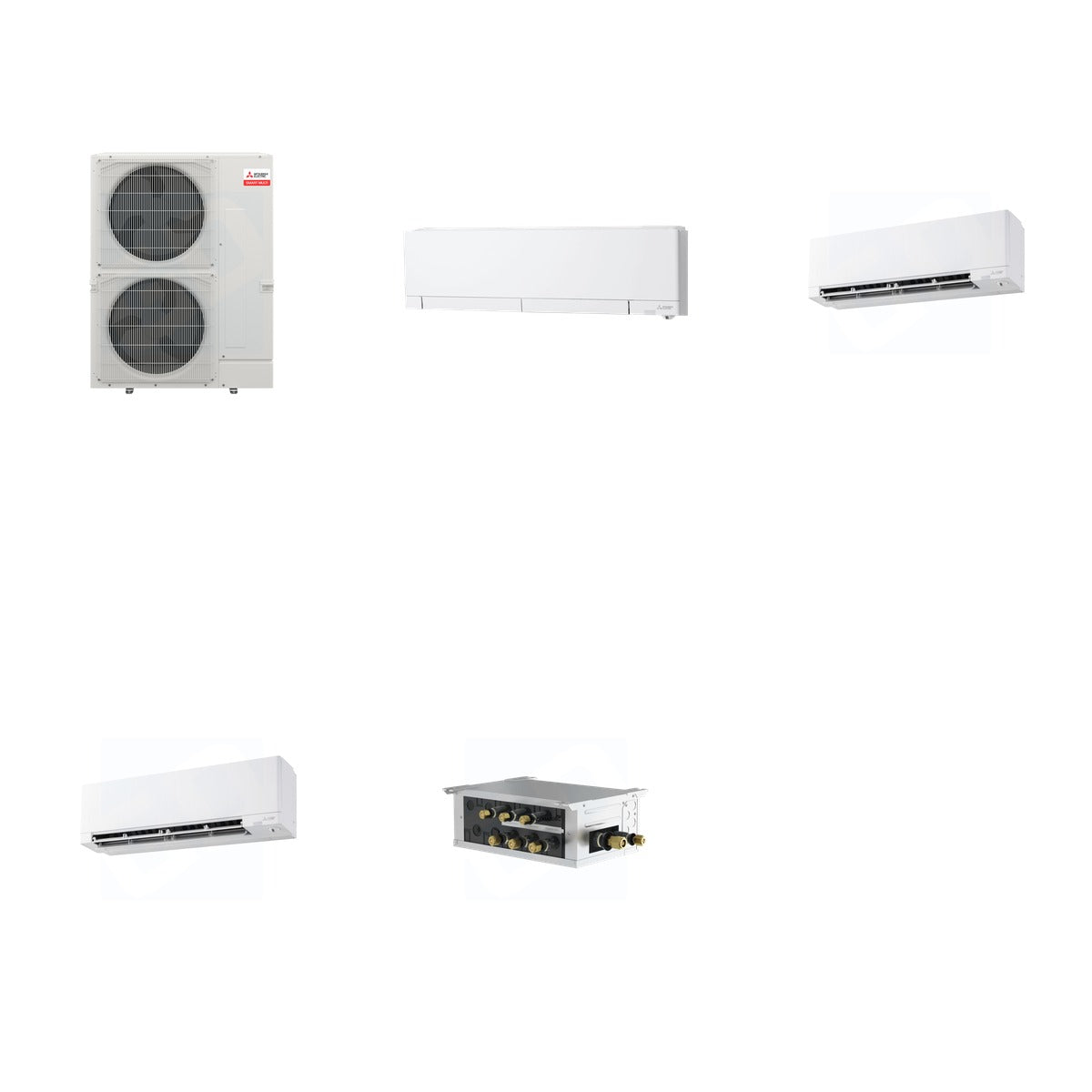

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX18NL - Mitsubishi Electric MSZ-FX18NL FX-Series Wall Mounted Unit 18k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 267.8 lb (Mitsubishi 161 lb + Mitsubishi 29 lb + Mitsubishi 36.4 lb + Mitsubishi 36.4 lb + Mitsubishi 5 lb)
• MXZ-SM36NL: 36,000 BTU, R454B refrigerant, SEER2: 23, EER2: 14.10, Heating Capacity: 41,000 BTU
• MSZ-FX06NL: 6,000 BTU, SEER2: Up to 35, HSPF2: Up to 13.3, Quiet operation (20 dB)
• MSZ-FX09NL: 9,000 BTU, SEER2: Up to 35, HSPF2: Up to 13.3, Quiet operation (20 dB)
• MSZ-FX18NL: 18,000 BTU, SEER: 25.5, HSPF: 11.1, Quiet operation (26 dB)
• PAC-LMA30BC: Supports 3 indoor units, R454B refrigerant, Dimensions: 17.75 x 11.06 x 6.75 inches

Use & Compatibility

This bundle is ideal for multi-zone heating and cooling applications, suitable for both residential and commercial settings. The MXZ-SM36NL condenser is compatible with M-, P-Series, and CITY MULTI indoor units, allowing for flexible installation options. The included air handlers can be used individually or in conjunction with the branch box to optimize performance and comfort across various zones.
