Mitsubishi Multi-Zone 36000 BTU R-454B 20 SEER2 3-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 9K+9K+9K

Description

This comprehensive bundle features essential components for a multi-zone HVAC system, ensuring efficient heating and cooling throughout your space. The Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser serves as the powerhouse, capable of supporting multiple indoor units for customized climate control. Paired with three MLZ-KX09NL ceiling cassette indoor units, this setup allows for versatile installation and operation in various environments. The included PAC-LMA30BC branch box optimizes refrigerant distribution, while the MLP-449WU grille enhances airflow efficiency, making this bundle ideal for both residential and commercial applications.

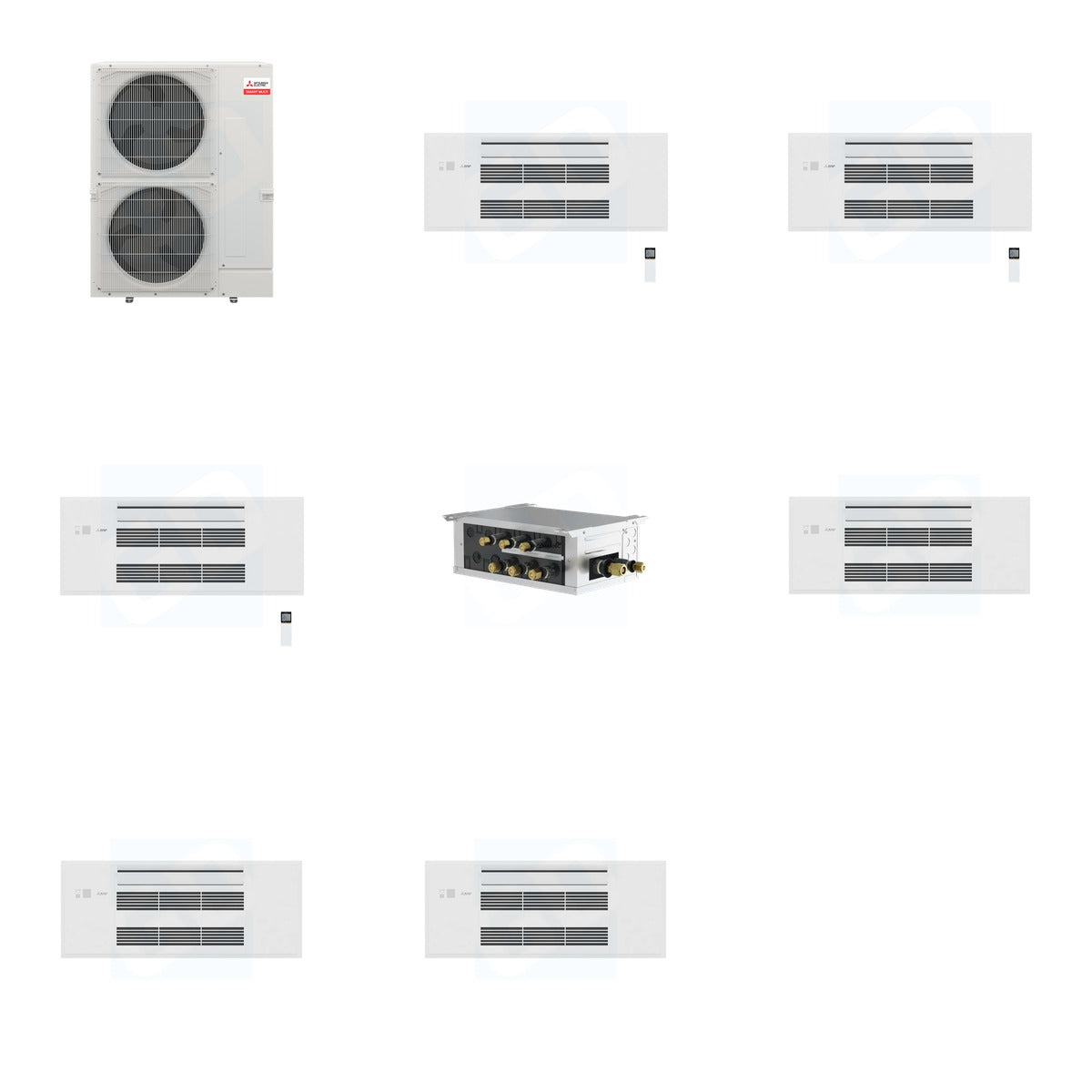

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX09NL - Mitsubishi Electric MLZ-KX09NL 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x3)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x3)

Key Details

• Weight of Bundle: 206.0 lb (Mitsubishi 161 lb + Mitsubishi 10.0 lb + Mitsubishi 5 lb + Mitsubishi 30 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL)
• Refrigerant Type: R454B (All components)
• Number of Zones: Up to 4 with branch box; 11 without (MXZ-SM36NL)
• Dimensions (MXZ-SM36NL): 41-11/32 W x 13 D x 52-11/16 H inches
• Voltage: 208/230 Volts (MLZ-KX09NL, PAC-LMA30BC)
• Airflow: Up to 325 CFM (MLZ-KX09NL)
• Noise Level: 26-38 dB(A) (MLZ-KX09NL)
• Grille Dimensions: Fits MLZ Series Indoor Units (MLP-449WU)

Use & Compatibility

This bundle is designed for use in multi-zone heating and cooling systems, making it suitable for both residential and commercial environments. The MXZ-SM36NL condenser works seamlessly with M-, P-Series, and CITY MULTI indoor units, while the MLZ-KX09NL units provide efficient air distribution in various room sizes. The PAC-LMA30BC branch box ensures optimal refrigerant flow, enhancing system performance.
